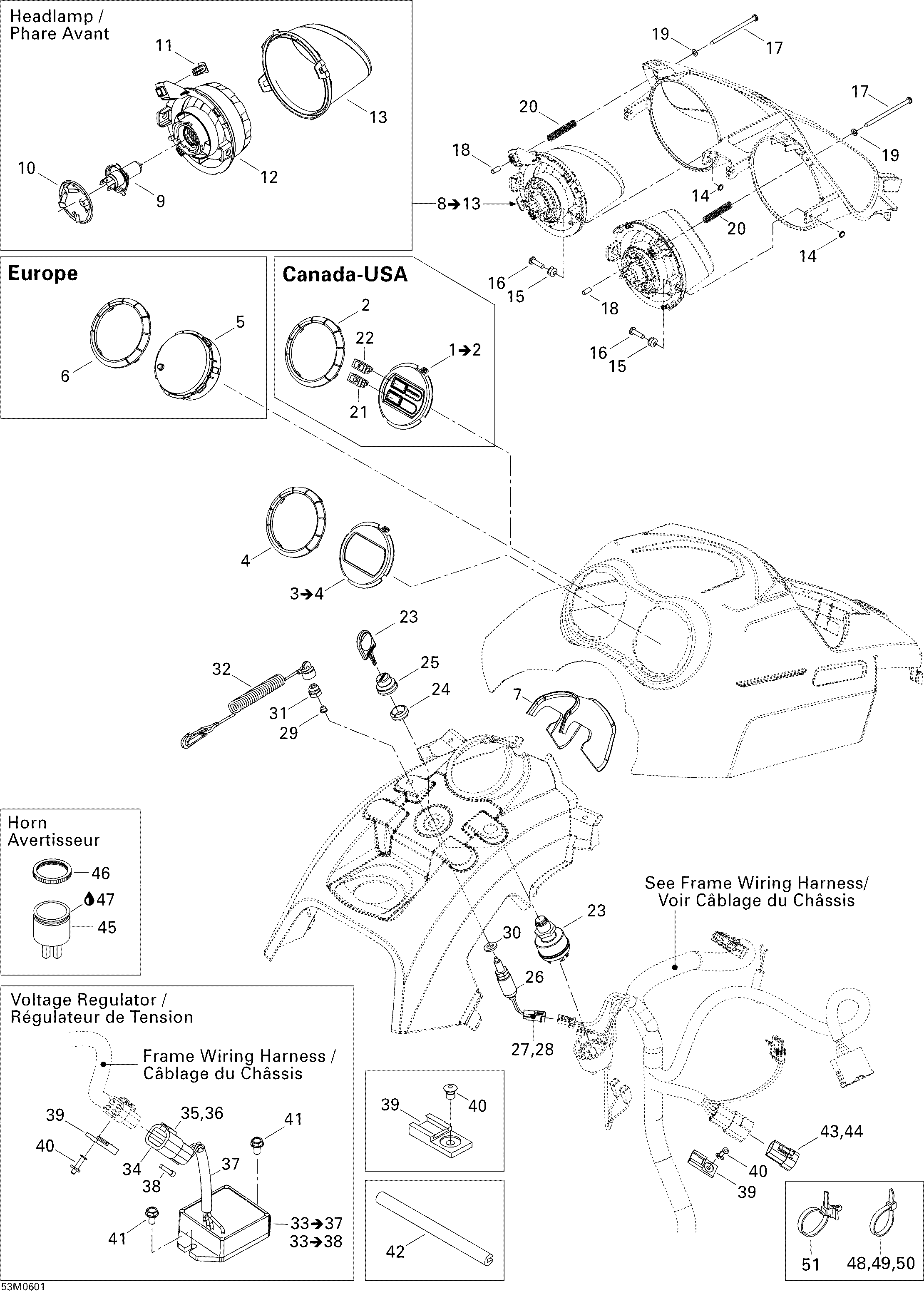

10- Electrical Accessories для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1515176372 Gauge Bottom Ring Ass'y. Canada-USA, Includes 1 to 2Gauge Bottom Ring Ass'y. Canada-USA, Includes 1 to 2
-
2515176242 Gauge RingGauge Ring
-
3515176373 Gauge Bottom Ring Ass'y. Includes 3 to 4Gauge Bottom Ring Ass'y. Includes 3 to 4
-
4515176242 Gauge RingGauge Ring
-
5515176301 Speedometer. EuropeSpeedometer. Europe
-
6515176242 Gauge Ring. EuropeGauge Ring. Europe
-
7515176321 ProtectorProtector
-
8515176168 RH Headlamp Ass'y. Includes 8 to 13RH Headlamp Ass'y. Includes 8 to 13
-
8515176169 LH Headlamp Ass'y. Includes 8 to 13LH Headlamp Ass'y. Includes 8 to 13
-
9515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
10515175910 Bulb HolderBulb Holder
-
11515176339 Plastic InsertPlastic Insert
-
14389804300 Push NutPush Nut
-
15515176289 Headlamp BushingHeadlamp Bushing
-
16390906200 Flat Head Steel RivetFlat Head Steel Rivet
-
17250000244 Phillips Screw #8 X 3''Phillips Screw #8 X 3''
-
18515176370 CapCap
-
19234041600 Flat Washer 4 mmFlat Washer 4 mm
-
20515176353 SpringSpring
-
21515175726 Pilot Lamp (Headlamp). Canada-USAPilot Lamp (Headlamp). Canada-USA
-
22410113400 Pilot Lamp (Electric Reverse). Canada-USAPilot Lamp (Electric Reverse). Canada-USA
-
23410113602 Ignition SwitchIgnition Switch
-
24410112100 Face NutFace Nut
-
25570013700 Switch BootSwitch Boot
-
26515175653 Brake SwitchBrake Switch
-
27515176297 Female HousingFemale Housing
-
28515175232 Male TerminalMale Terminal
-
29570151100 Plunger CapPlunger Cap
-
30503183500 WasherWasher
-
31515145900 Switch NutSwitch Nut
-
32515151500 Cap Ass'YCap Ass'Y
-
33515176188 Voltage Regulator. Manual Start, Includes 33 to 38Voltage Regulator. Manual Start, Includes 33 to 38
-
33515176189 Voltage Regulator. Electric Start, Includes 33 to 37Voltage Regulator. Electric Start, Includes 33 to 37
-
34278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
35515175568 Male Terminal. Manual StartMale Terminal. Manual Start
-
35515175568 Male Terminal. Electric StartMale Terminal. Electric Start
-
36278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
37710000497 Protector TubingProtector Tubing
-
38293000052 Sealing Cap. Manual StartSealing Cap. Manual Start
-
39515175917 ClipClip
-
40293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
41210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
42509000263 TrimTrim
-
43278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
44278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
45515176035 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
50293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
51293750009 Tie Rap 160 mmTie Rap 160 mm
