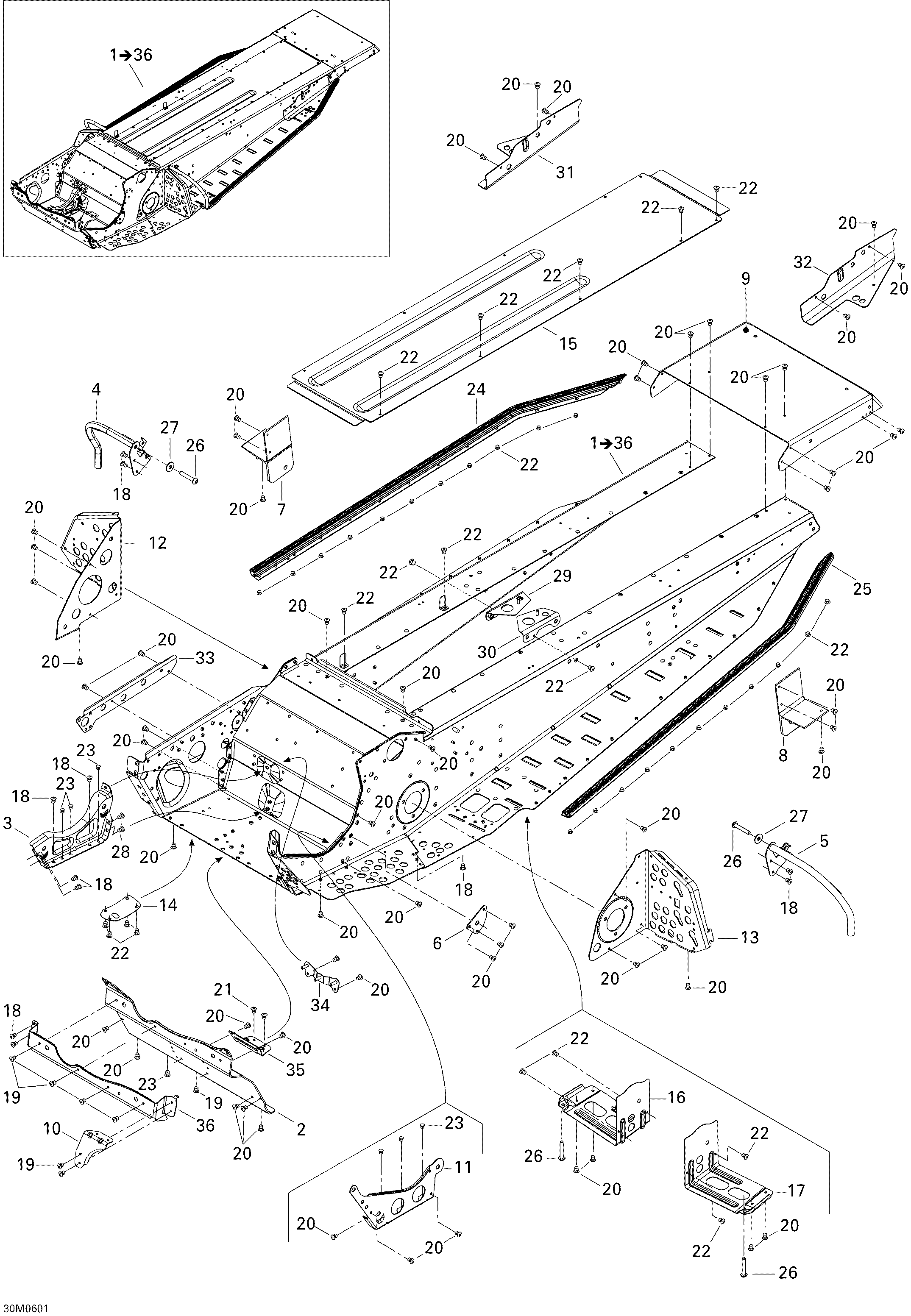

09- Frame для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1415129128 Frame. Includes 1 to 36Frame. Includes 1 to 36
-
2518323994 Front PanFront Pan
-
3518323346 Engine Support, BlackEngine Support, Black
-
4518324162 RH Toe Hold SupportRH Toe Hold Support
-
5518324163 LH Toe Hold SupportLH Toe Hold Support
-
6518323507 Outer ReinforcementOuter Reinforcement
-
7518324815 RH Slide BracketRH Slide Bracket
-
8518324816 LH Slide BracketLH Slide Bracket
-
9518324199 Frame ExtentionFrame Extention
-
10518324439 Belt Guard SupportBelt Guard Support
-
11518323995 Inner Reinforcement, BlackInner Reinforcement, Black
-
12518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
13518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
14518324169 PlatePlate
-
15518323996 Central PlateCentral Plate
-
16518325031 RH Footrest Reinforcement, BlackRH Footrest Reinforcement, Black
-
17518325032 LH Footrest Reinforcement, BlackLH Footrest Reinforcement, Black
-
18390909200 Avex RivetAvex Rivet
-
19390909100 Avex RivetAvex Rivet
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390910300 Rivet HenrobRivet Henrob
-
24518324957 RH RollerRH Roller
-
25518324958 LH RollerLH Roller
-
26205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
27234082410 Flat Washer M8Flat Washer M8
-
28293150096 RivetRivet
-
29518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
30518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
31518325039 RH Tunnel LinerRH Tunnel Liner
-
32518325040 LH Tunnel LinerLH Tunnel Liner
-
33518323328 RH Tunnel StiffenerRH Tunnel Stiffener
-
34518324599 HolderHolder
-
35518324207 Holder PlateHolder Plate
-
36518324220 Frontal ReinforcementFrontal Reinforcement
