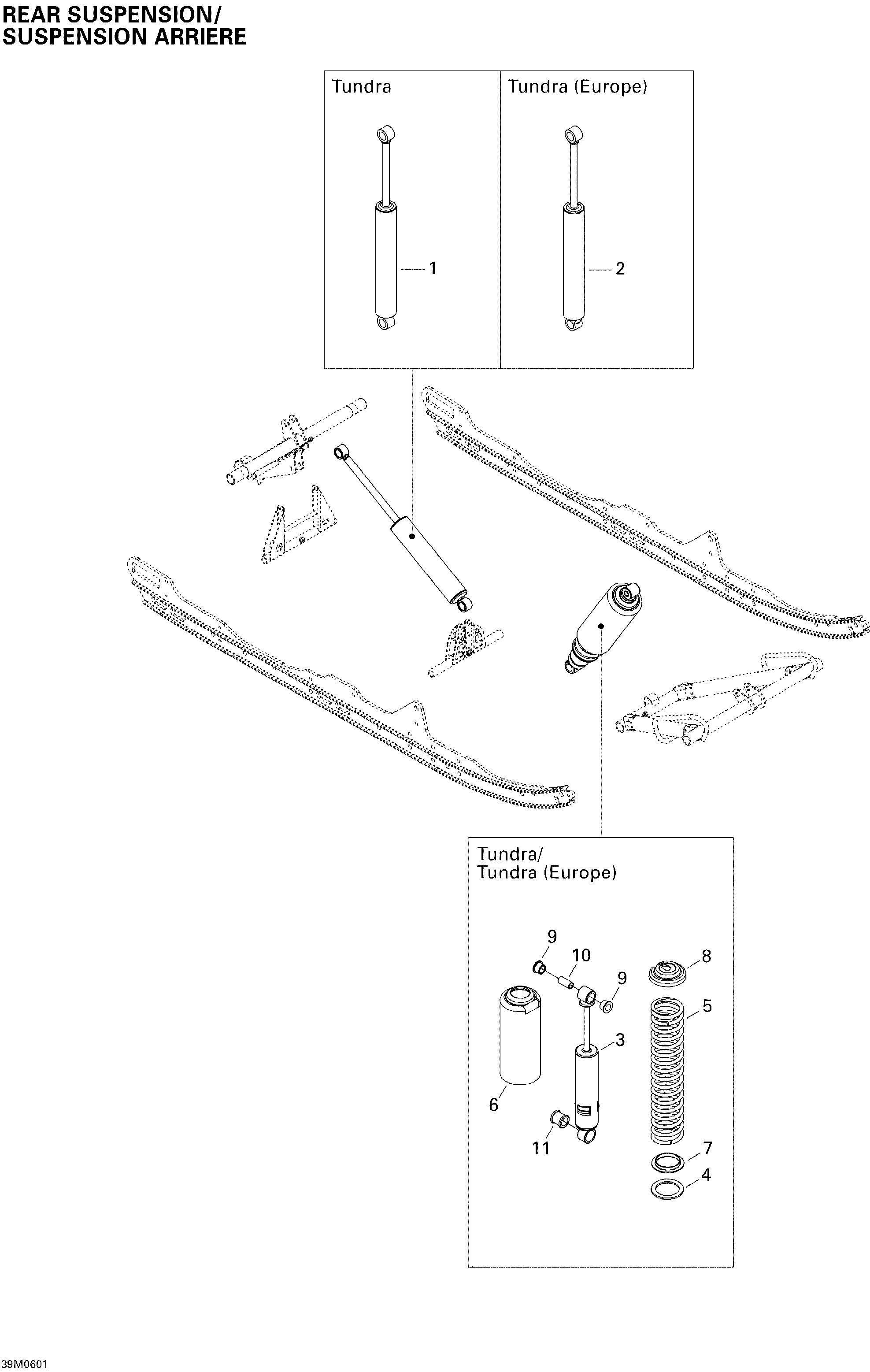

08- Rear Suspension Shocks для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1503191228 Rear ShockRear Shock
-
2503191229 Rear Shock. EuropeRear Shock. Europe
-
3503190746 Center ShockCenter Shock
-
4503184400 WasherWasher
-
5503191347 SpringSpring
-
6503191126 ProtectorProtector
-
7505071954 Spring GuideSpring Guide
-
8503140600 Spring StopperSpring Stopper
-
9503189117 CushionCushion
-
10503189282 BushingBushing
-
11503189271 CushionCushion
