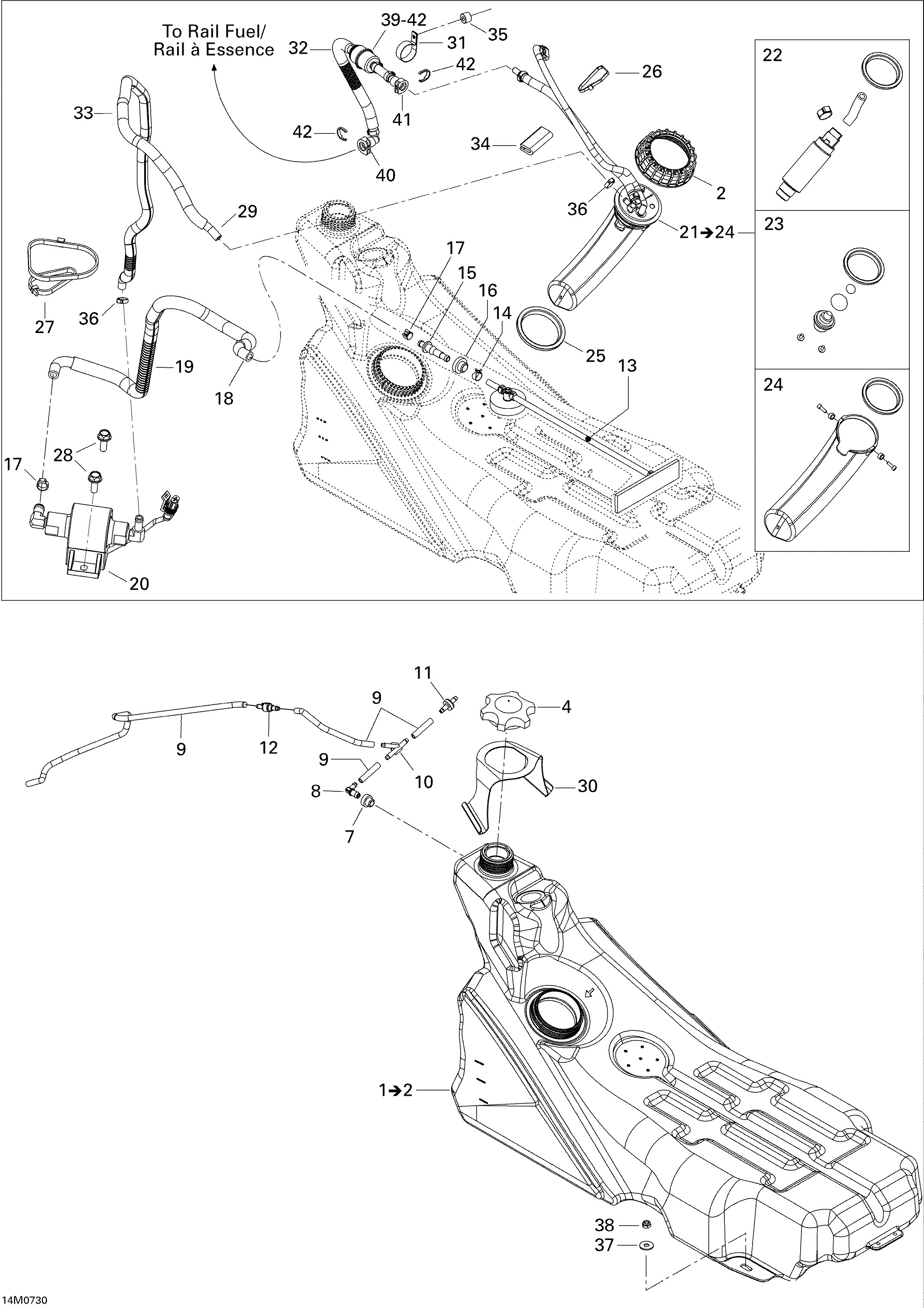

02- Fuel System для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1513033153 Fuel Tank. Includes 1 to 2Fuel Tank. Includes 1 to 2
-
2513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
4513033024 Fuel CapFuel Cap
-
7513032908 GrommetGrommet
-
8414580700 Elbow Male ConnectorElbow Male Connector
-
9415080200 Polyurethane HosePolyurethane Hose
-
10293710059 Y FittingY Fitting
-
11275500398 Check ValveCheck Valve
-
12275500505 Check ValveCheck Valve
-
13513033172 Fuel Hose Ass.Fuel Hose Ass.
-
14513033010 Norma Spring ClampNorma Spring Clamp
-
15414872700 Male ConnectorMale Connector
-
16570273900 GrommetGrommet
-
17293650053 Crimp ClampCrimp Clamp
-
18513033156 HoseHose
-
19415080000 Tubing 16 mmTubing 16 mm
-
20513033328 Fuel PumpFuel Pump
-
21513033120 Fuel Pump Module. Includes 21 to 24Fuel Pump Module. Includes 21 to 24
-
22861302700 Pump KitPump Kit
-
23861302100 Regulator KitRegulator Kit
-
24861302800 Reservoir KitReservoir Kit
-
25513033039 SealSeal
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
28210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
29513033022 Hose 8 mm, MeterHose 8 mm, Meter
-
30513033066 SupportSupport
-
31513033047 Open ClampOpen Clamp
-
32415080000 Tubing 16 mmTubing 16 mm
-
33415080000 Tubing 16 mmTubing 16 mm
-
34271000110 Protection TrimProtection Trim
-
35503189448 SpacerSpacer
-
36293650047 Oetiker ClampOetiker Clamp
-
37234082410 Flat Washer 8 mmFlat Washer 8 mm
-
38232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
39513033133 Fuel Filter Ass'y. Includes 39 to 42Fuel Filter Ass'y. Includes 39 to 42
-
40415128965 Quick Fitting 90°Quick Fitting 90°
-
41709000125 Female Quick FittingFemale Quick Fitting
-
42513033135 Locking ClipLocking Clip
