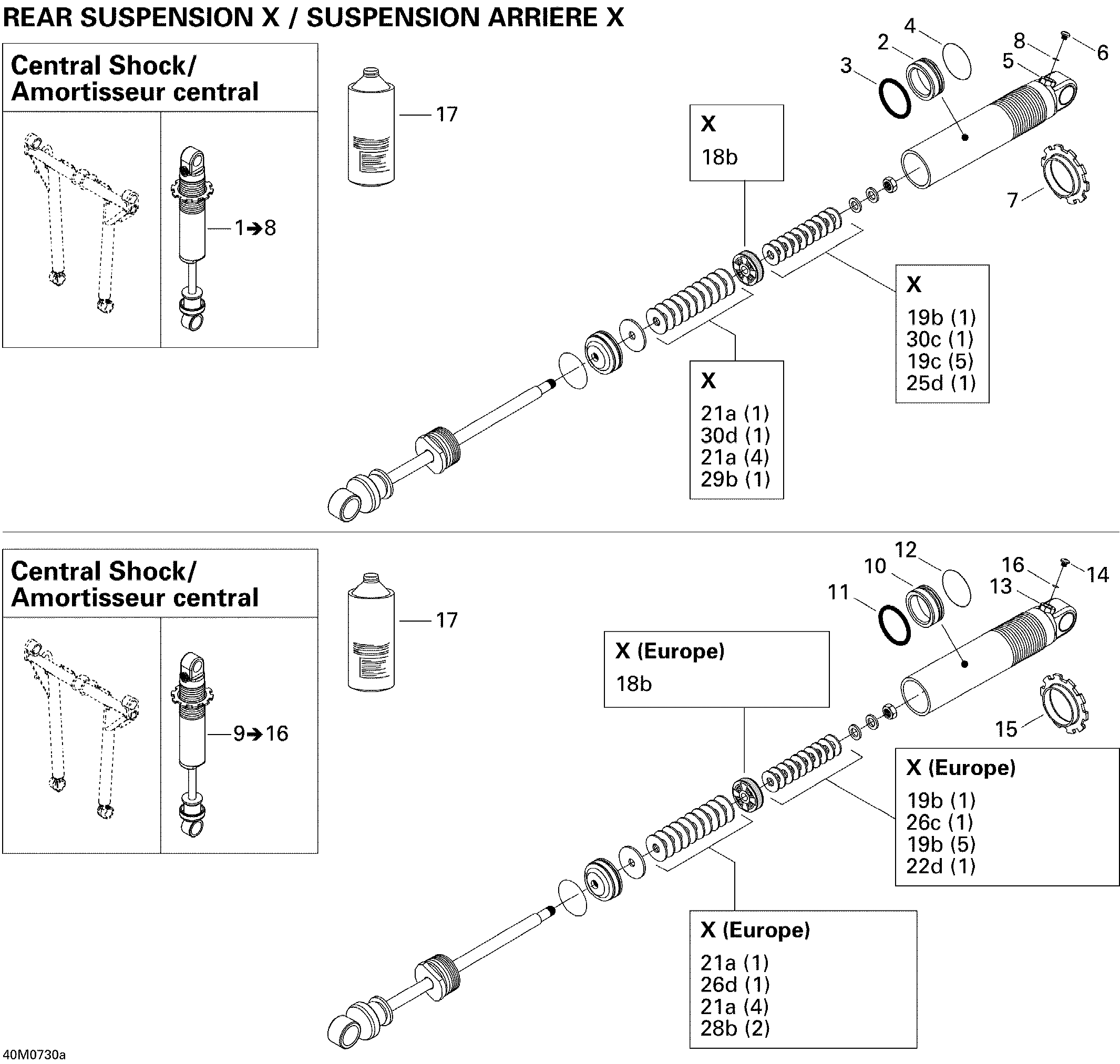

08- Take Apart Shock, Rear X для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1503191203 Center Shock. Includes 1 to 8, XCenter Shock. Includes 1 to 8, X
-
2503189309 Free Piston. XFree Piston. X
-
3414888312 O-Ring. XO-Ring. X
-
4503189308 Piston Ring. XPiston Ring. X
-
5505070398 Air Valve Ring. XAir Valve Ring. X
-
6505070399 Screw. XScrew. X
-
7414888316 Spring Collar. XSpring Collar. X
-
8505070400 O-Ring. XO-Ring. X
-
9503191220 Center Shock. Includes 9 to 16, X EuropeCenter Shock. Includes 9 to 16, X Europe
-
10503189309 Free Piston. X EuropeFree Piston. X Europe
-
11414888312 O-Ring. X EuropeO-Ring. X Europe
-
12503189308 Piston Ring. X EuropePiston Ring. X Europe
-
13505070398 Air Valve Ring. X EuropeAir Valve Ring. X Europe
-
14505070399 Screw. X EuropeScrew. X Europe
-
15414888316 Spring Collar. X EuropeSpring Collar. X Europe
-
16505070400 O-Ring. X EuropeO-Ring. X Europe
-
17293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
18c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
18g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
19a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
19b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
19c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
21a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
21b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
24d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
25b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
25c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
27b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
27C414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
29a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
29b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
29c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
29D415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
30b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
33a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
33b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
33d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
