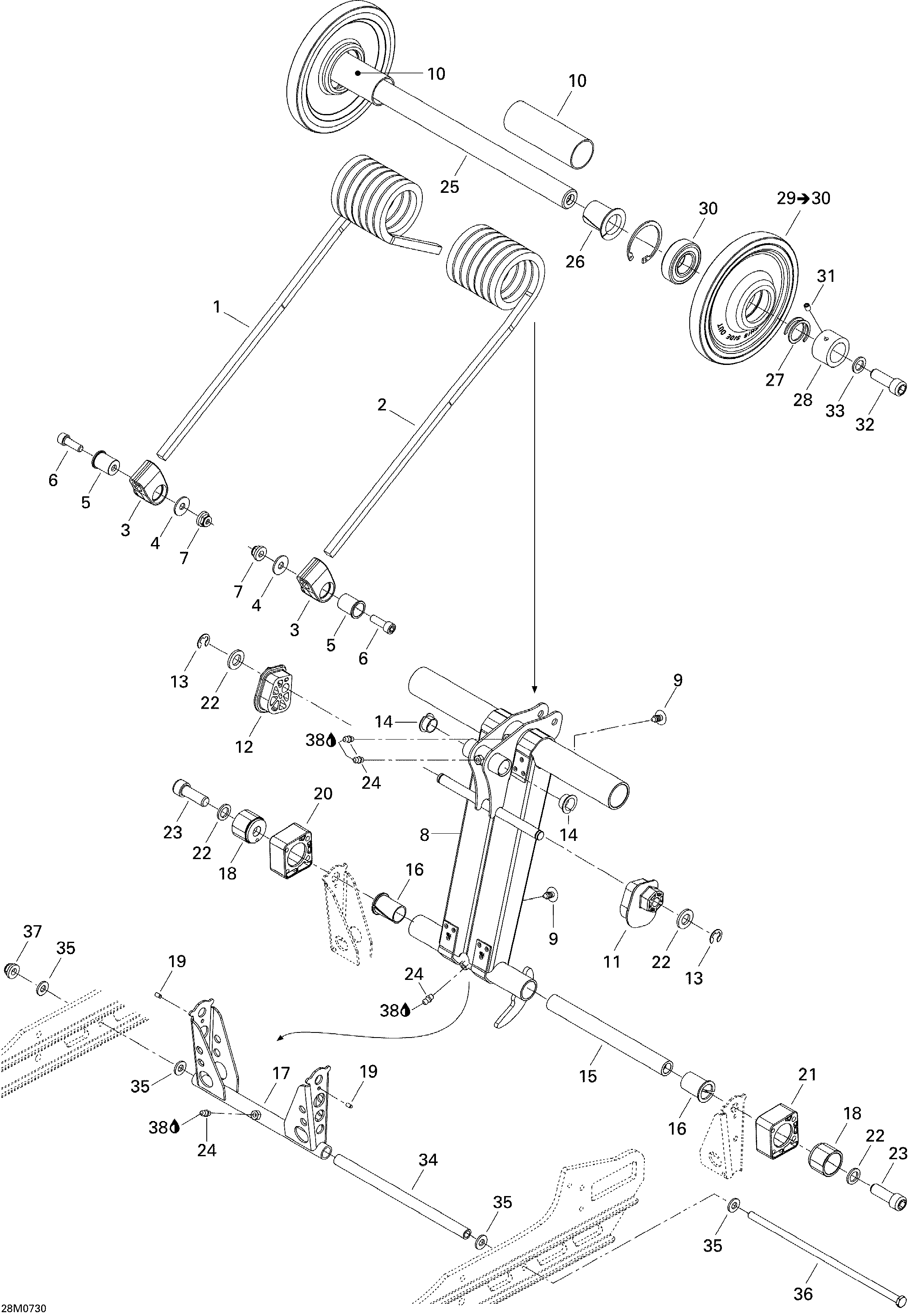

08- Rear Arm X для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1503190773 RH Spring, Square. XRH Spring, Square. X
-
1503190777 RH Spring, Square. X (Europe)RH Spring, Square. X (Europe)
-
2503190775 LH Spring, Square. XLH Spring, Square. X
-
2503190779 LH Spring, Square. X (Europe)LH Spring, Square. X (Europe)
-
3503191539 Spring SupportSpring Support
-
4234082410 Flat Washer 8 mmFlat Washer 8 mm
-
5503190754 Retainer CushionRetainer Cushion
-
6205082544 Socket Screw M8 X 25Socket Screw M8 X 25
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8503191119 Rear ArmRear Arm
-
9414644300 DartDart
-
10503191041 Plastic BushingPlastic Bushing
-
11503190023 LH Cam AdjusterLH Cam Adjuster
-
12503190022 RH Cam AdjusterRH Cam Adjuster
-
13293370013 E-CirclipE-Circlip
-
14506150200 Bushing SwivelBushing Swivel
-
15503190687 Lower ShaftLower Shaft
-
16503189286 CushionCushion
-
17503191091 Pivot ArmPivot Arm
-
18503189488 Block GuideBlock Guide
-
19250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
20503190622 RH Block, 4 PositionsRH Block, 4 Positions
-
21503190623 LH Block, 4 PositionsLH Block, 4 Positions
-
22503189148 WasherWasher
-
23205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
24408200700 Grease FittingGrease Fitting
-
25503191360 Upper ShaftUpper Shaft
-
26503190619 CushionCushion
-
27503189146 Axle SpringAxle Spring
-
28503190570 Retainer RingRetainer Ring
-
29503191046 Wheel 155 Ass'y. Includes 29 to 30Wheel 155 Ass'y. Includes 29 to 30
-
30503190795 Ball BearingBall Bearing
-
31206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
32205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
33503189276 WasherWasher
-
34503189156 Pivot Arm AxlePivot Arm Axle
-
35503189157 WasherWasher
-
36732601198 Long Bolt M8Long Bolt M8
-
37233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
38219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
