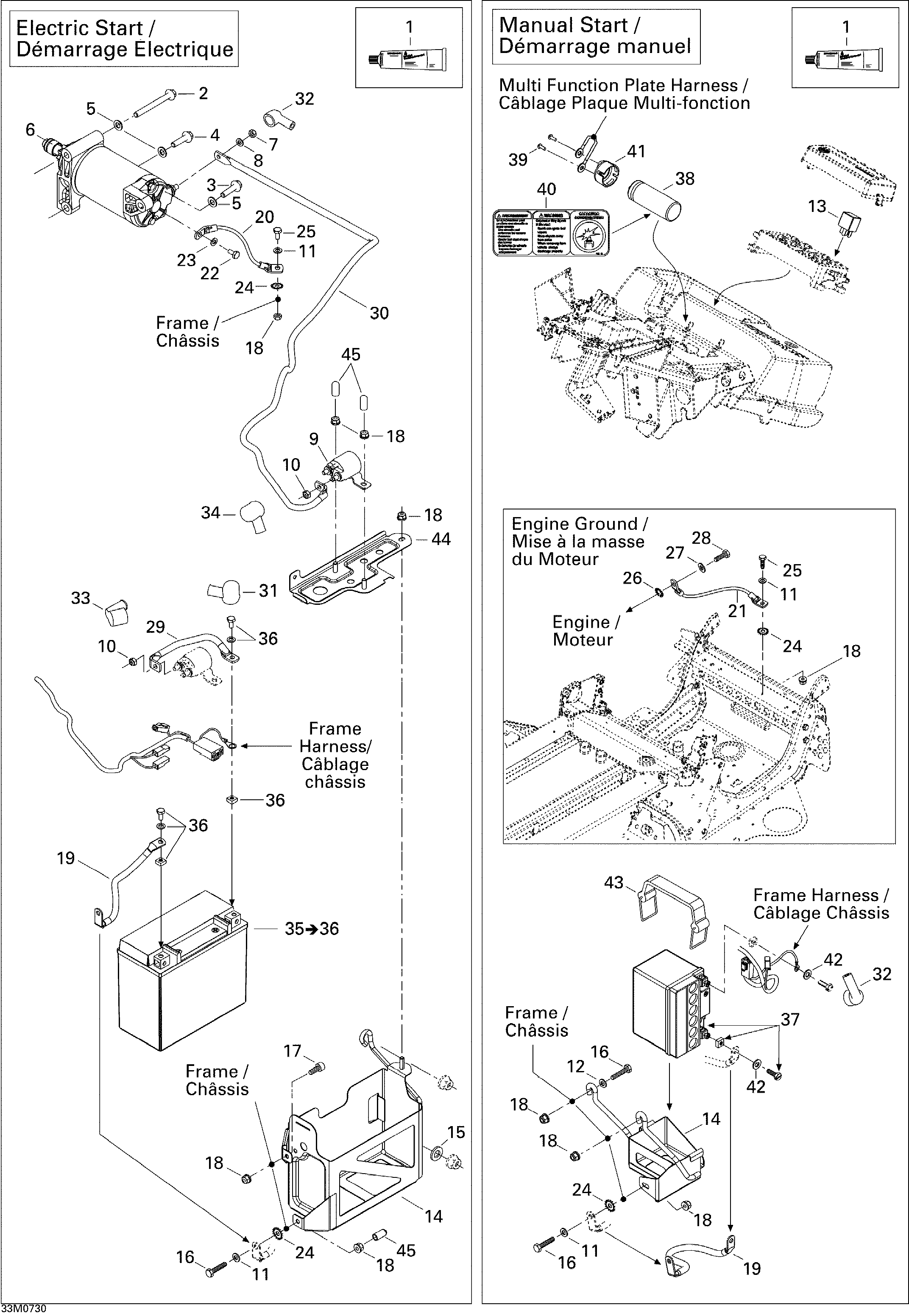

10- Electrical System X для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207587544 Hex Flanged Screw M8 X 75, Scotch GripHex Flanged Screw M8 X 75, Scotch Grip
-
3207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
4207583044 Hex Flanged Screw M8 X 30, Scotch GripHex Flanged Screw M8 X 30, Scotch Grip
-
5250200008 Flat Washer 8 mmFlat Washer 8 mm
-
6515176133 Electric Starter Ass'yElectric Starter Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9515176011 Starter RelayStarter Relay
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11234061410 Flat Washer 6 mmFlat Washer 6 mm
-
14515176048 Battery SupportBattery Support
-
15506151251 WasherWasher
-
16207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
17205061644 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19515176172 Ground WireGround Wire
-
20515176277 Ground WireGround Wire
-
22207361644 Hex Screw M6 X 16, Scotch GripHex Screw M6 X 16, Scotch Grip
-
23234061410 Flat Washer 6 mmFlat Washer 6 mm
-
24250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
25207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
29515175904 Battery WireBattery Wire
-
30515176259 Battery WireBattery Wire
-
31570151000 Protection CapProtection Cap
-
32278001771 Protector CapProtector Cap
-
33570064200 Protection CapProtection Cap
-
34515175919 Protector CapProtector Cap
-
35410301203 Battery, 18 AmperesBattery, 18 Amperes
-
36295500849 Battery Fastener KitBattery Fastener Kit
-
44515175735 Battery StripBattery Strip
-
45515176141 CapCap
