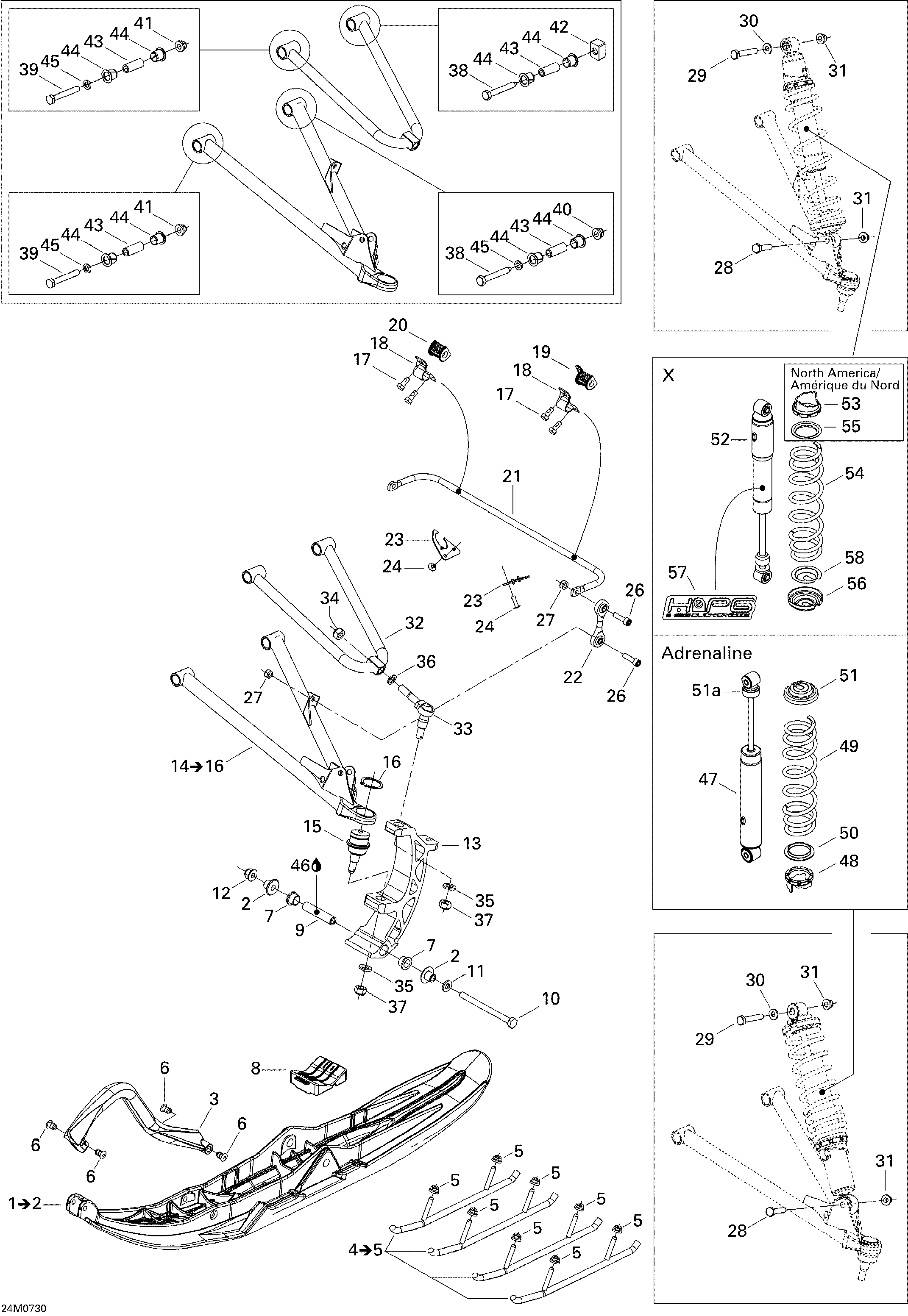

07- Front Suspension And Ski X для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1505072154 RH Pilot SKI 5.7, Black. Includes 1 to 2RH Pilot SKI 5.7, Black. Includes 1 to 2
-
1505072155 LH Pilot SKI 5.7, BlackLH Pilot SKI 5.7, Black
-
2505071781 CushionCushion
-
3505071059 Handle, Viper Red, B-176Handle, Viper Red, B-176
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9505071271 BushingBushing
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Flanged Nut M10Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860513400 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860513700 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505071475 LH BushingLH Bushing
-
20505071476 RH BushingRH Bushing
-
21505071477 StabilisatorStabilisator
-
22505071479 Ball JointBall Joint
-
23505071253 PlugPlug
-
24293150103 Pop RivetPop Rivet
-
26205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
27232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
28207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
29207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
30503189564 WasherWasher
-
31233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
32505072030 Upper Arm, Viper RedUpper Arm, Viper Red
-
33505072047 Upper Ball JointUpper Ball Joint
-
34250100089 Hex. Elastic Hex Nut M12Hex. Elastic Hex Nut M12
-
35234021410 Flat Washer 12 mmFlat Washer 12 mm
-
36503189276 WasherWasher
-
37250100089 Hex. Elastic Hex Nut M12Hex. Elastic Hex Nut M12
-
38250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
39250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
40250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
41250100088 Hex. Elastic Hex Nut M10Hex. Elastic Hex Nut M10
-
42505071695 Rectangular NutRectangular Nut
-
43505070960 Aluminium BushingAluminium Bushing
-
44505070566 Arm BushingArm Bushing
-
45503189564 WasherWasher
-
46219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
52505071992 Front Shock. North AmericaFront Shock. North America
-
52505072071 Front Shock. EuropeFront Shock. Europe
-
53505070150 Cam 45°. North AmericaCam 45°. North America
-
54505072025 Spring. North AmericaSpring. North America
-
54505072186 Spring. EuropeSpring. Europe
-
55517184300 Spring Guide. North AmericaSpring Guide. North America
-
56503140600 Spring StopperSpring Stopper
-
57505072222 HPG DecalHPG Decal
-
58503141600 CapCap
