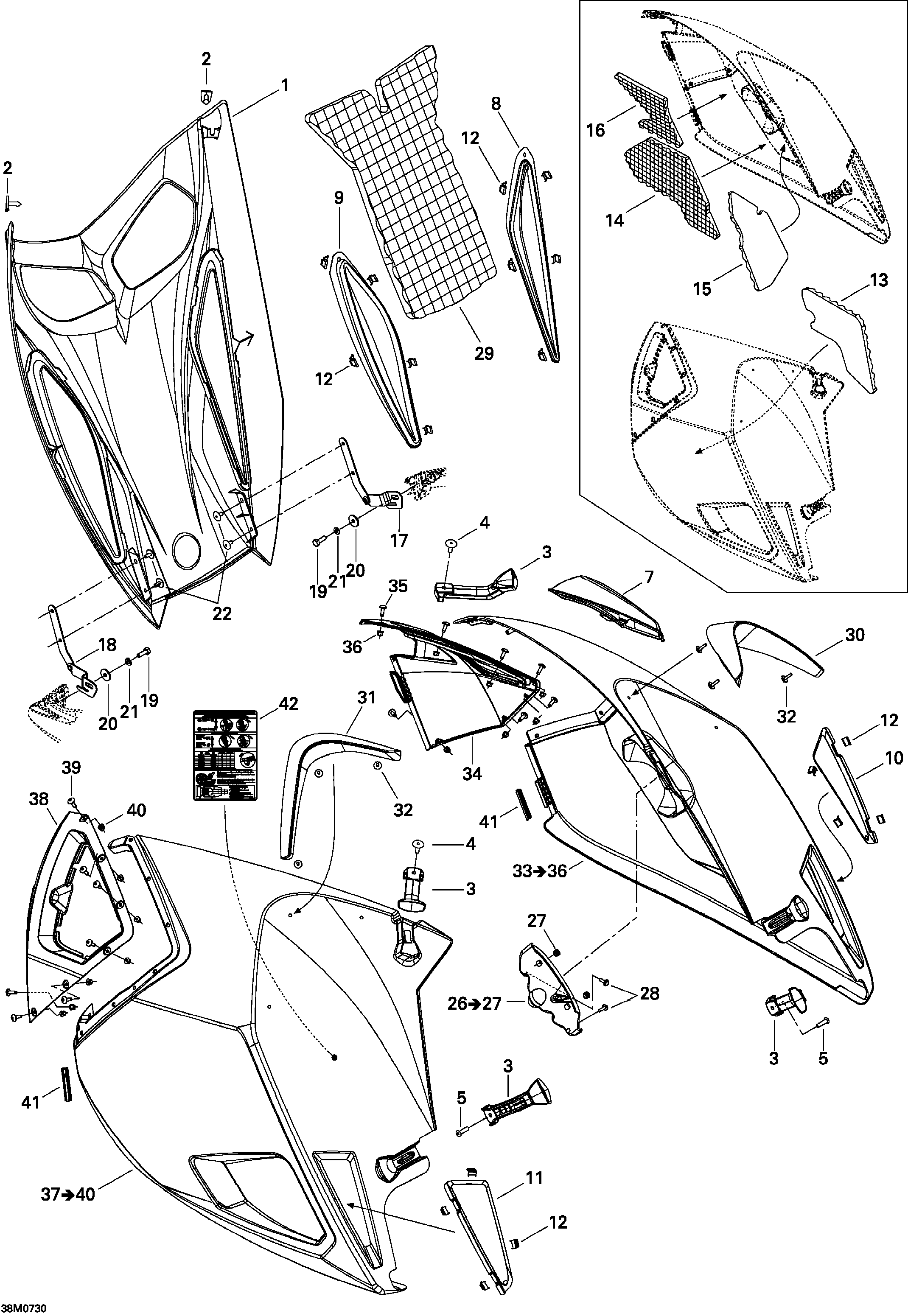

09- Hood для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1517302788 Hood, Black, B-160Hood, Black, B-160
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
7517303434 Muffler GrillMuffler Grill
-
8517303710 RH Hood GrillRH Hood Grill
-
9517303709 LH Hood GrillLH Hood Grill
-
10517303227 RH Panel GrillRH Panel Grill
-
11517303228 LH Panel GrillLH Panel Grill
-
12517302789 ClipClip
-
13517303392 LH Panel FoamLH Panel Foam
-
14517303393 RH Panel FoamRH Panel Foam
-
15517303394 RH Panel FoamRH Panel Foam
-
16517303454 RH Panel FoamRH Panel Foam
-
17517303668 RH Hinge Ass'yRH Hinge Ass'y
-
18517303669 LH Hinge Ass'yLH Hinge Ass'y
-
19207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
20224061121 Flat WasherFlat Washer
-
21234161471 Lock Washer M6, BlackLock Washer M6, Black
-
22390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
26517303482 RH Console. Includes 26 to 27RH Console. Includes 26 to 27
-
27275500241 Cap, BlackCap, Black
-
28241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
29517303493 Hood FoamHood Foam
-
30517303143 RH Air Deflector, KneesRH Air Deflector, Knees
-
31517303142 LH Air Deflector, KneesLH Air Deflector, Knees
-
32250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
33517303361 RH Panel Ass'y. Includes 33 to 36RH Panel Ass'y. Includes 33 to 36
-
34517303106 RH Pannel HubRH Pannel Hub
-
35250000255 Torx Screw M5Torx Screw M5
-
36250100058 Nylon Screw 10/32''Nylon Screw 10/32''
-
37517303359 LH Panel Ass'y. Includes 37 to 40LH Panel Ass'y. Includes 37 to 40
-
38517303105 LH Pannel HubLH Pannel Hub
-
39250000255 Torx Screw M5Torx Screw M5
-
40250100058 Nylon Screw 10/32''Nylon Screw 10/32''
-
41517302823 Hinge LockHinge Lock
-
42516002616 Decal, Suspension AdjustmentDecal, Suspension Adjustment
