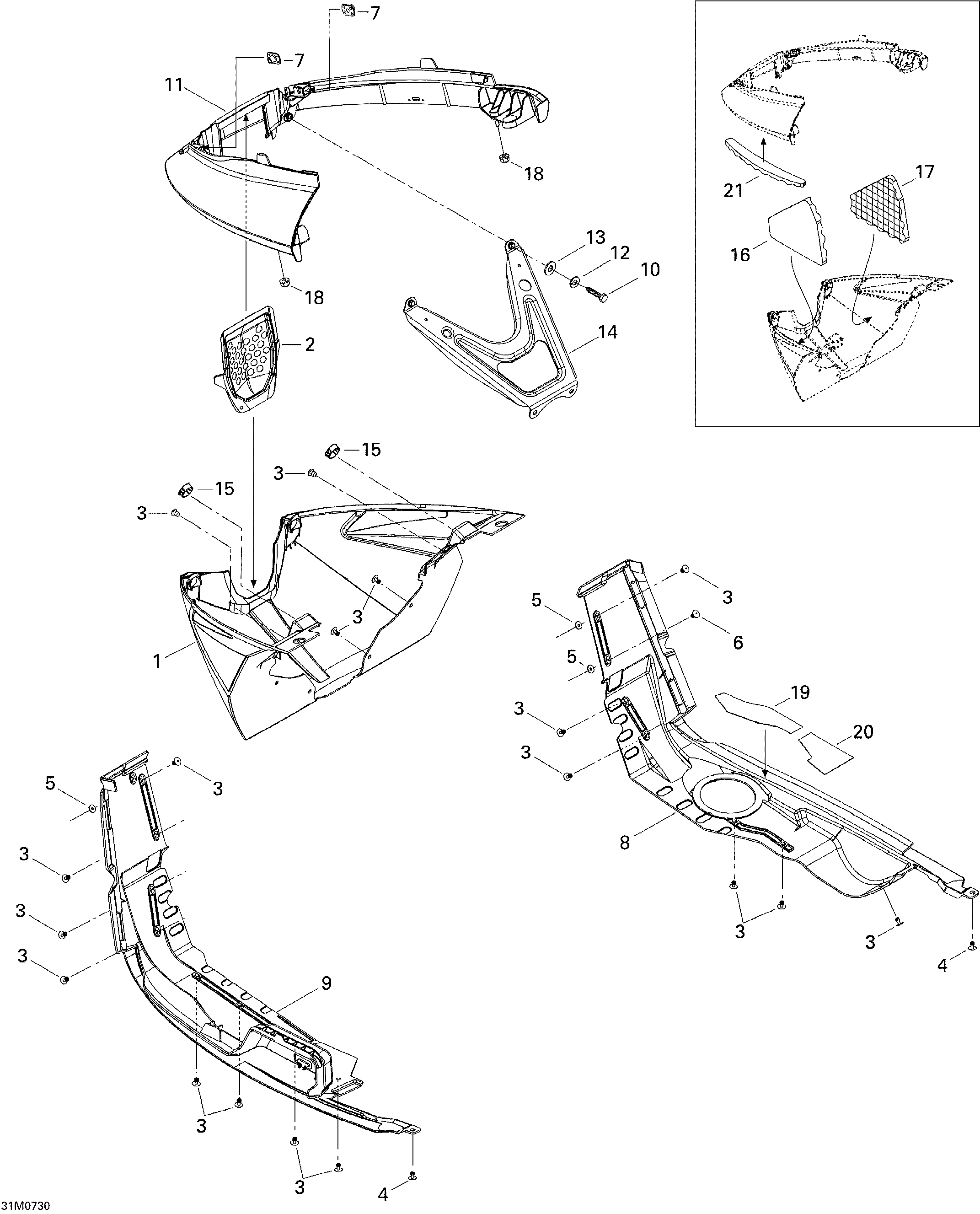

09- Bottom Pan для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1502006821 Front Bottom PanFront Bottom Pan
-
2502006746 Bottom Pan Grill, BlackBottom Pan Grill, Black
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150103 Pop RivetPop Rivet
-
5517124300 WasherWasher
-
6293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
7293100003 Nut M6Nut M6
-
8502006725 RH Bottom Pan, BlackRH Bottom Pan, Black
-
9502006726 LH Bottom Pan, BlackLH Bottom Pan, Black
-
10207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
11502006724 Bumper, BlackBumper, Black
-
12234161471 Lock Washer M6, BlackLock Washer M6, Black
-
13224061121 Flat WasherFlat Washer
-
14502006772 SupportSupport
-
15414916600 Nylon CapNylon Cap
-
16502006765 LH Bottom Pan FoamLH Bottom Pan Foam
-
17502006767 RH Bottom Pan FoamRH Bottom Pan Foam
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19502006809 Reflective SheetReflective Sheet
-
20502006810 Reflective SheetReflective Sheet
-
21502006800 Bumper FoamBumper Foam
