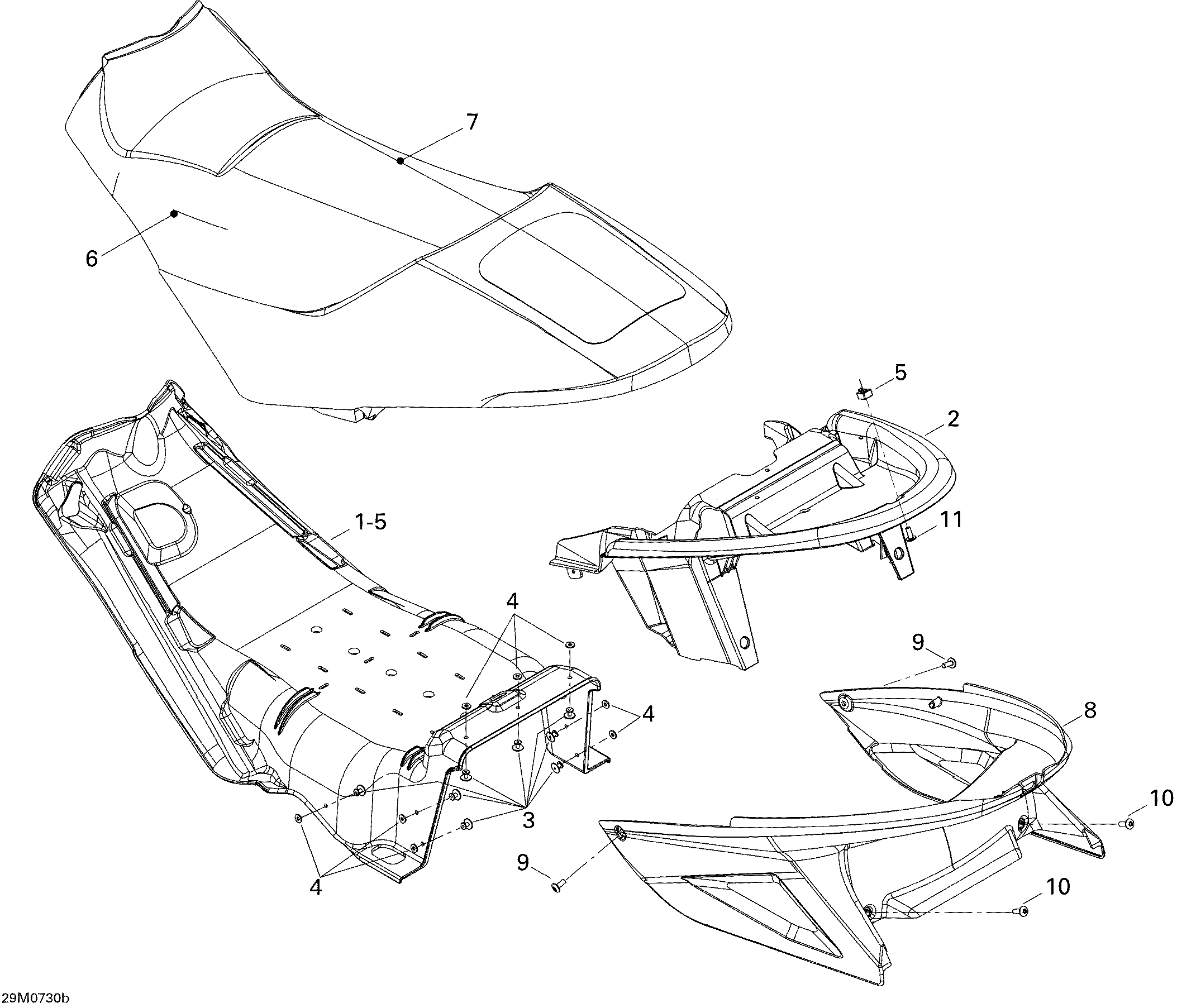

09- Seat X для BRP Ski-Doo MACH Z X - 2007
-
№АртикулНазвание
-
1510004582 Seat Base Ass'ySeat Base Ass'y
-
2510004214 Seat Base Ass'ySeat Base Ass'y
-
3390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517225900 Flat WasherFlat Washer
-
5708000046 Nut Housing Ass'y M6Nut Housing Ass'y M6
-
6510004722 Seat CoverSeat Cover
-
7510004216 Seat FoamSeat Foam
-
8510004628 Trunk, BlackTrunk, Black
-
9250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
