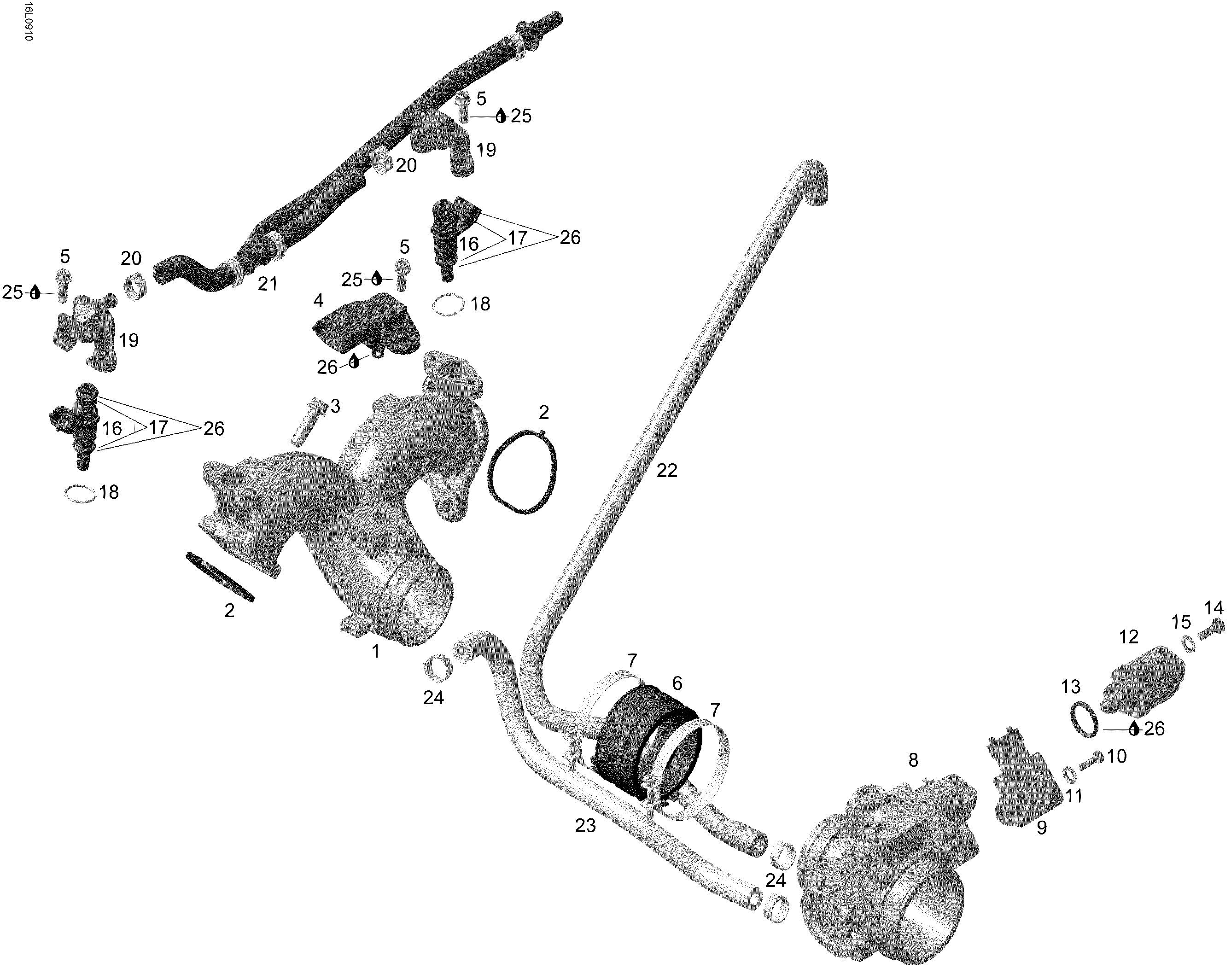

01- Air Inlet Manifold And Throttle Body для BRP Ski-Doo Skandic SWT - 2009
-
№АртикулНазвание
-
1420667342 Air Intake ManifoldAir Intake Manifold
-
2420630642 GasketGasket
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420267480 Intake AdaptorIntake Adaptor
-
7420251480 Hose ClampHose Clamp
-
8420296878 Throttle Body Ass'y.. Includes 8 to 15Throttle Body Ass'y.. Includes 8 to 15
-
9270000251 Position SensorPosition Sensor
-
10208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
11234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
12420963057 Idle Bypass ValveIdle Bypass Valve
-
13420631780 O-RingO-Ring
-
14420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
15420845710 Snap RingSnap Ring
-
16420874402 Injection ValveInjection Valve
-
17420631220 O-RingO-Ring
-
18420631295 O-RingO-Ring
-
19420874410 Fuel RailFuel Rail
-
20420851458 ClampClamp
-
21420874710 Fuel hoseFuel hose
-
22420822359 HoseHose
-
23420460272 Formed HoseFormed Hose
-
24293650125 Oetiker ClampOetiker Clamp
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26293550030 Grease, Super LubeGrease, Super Lube
