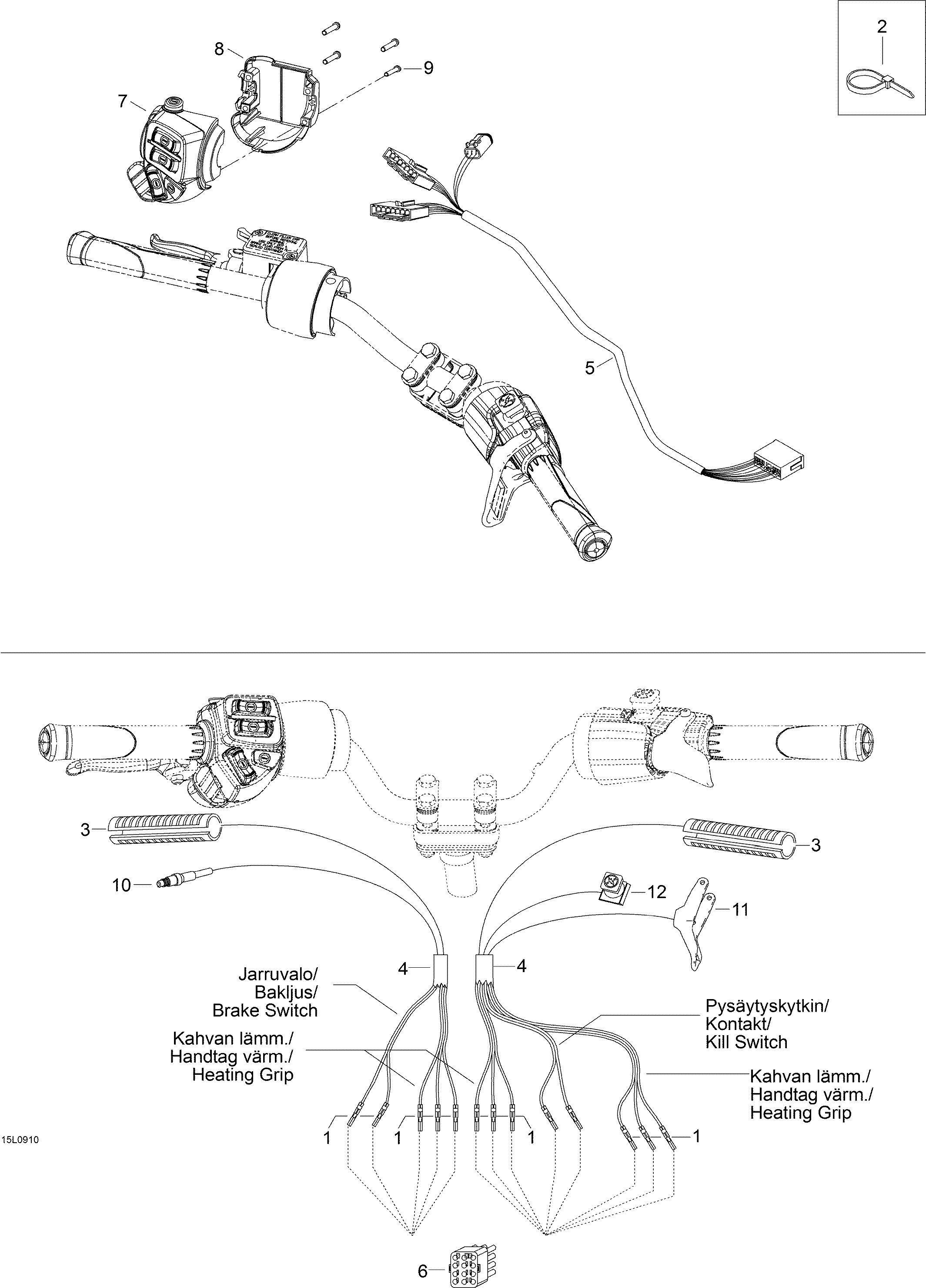

10- Steering Wiring Harness для BRP Ski-Doo Skandic SWT - 2009
![](/wa-data/public/shop/sheme/bombardier/ski-doo/44c84486-02eb-4fec-b15c-322a91ac37d1.png)
-
№АртикулНазвание
-
1605642628 ConnectorConnector
-
2M27100 Tie Rap 290 mmTie Rap 290 mm
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175664 Heating GripHeating Grip
-
4M39023 HousingHousing
-
5605354616 Steering Harness Ass'ySteering Harness Ass'y
-
—605154615 Main Harness. Not ShownMain Harness. Not Shown
-
6M42617 Male Connector HousingMale Connector Housing
-
7605354729 LH Switch HousingLH Switch Housing
-
8515175926 Housing Switch PlateHousing Switch Plate
-
10507032366 MicroswitchMicroswitch
-
11512059481 Throttle HandleThrottle Handle
-
12548872536 Kill SwitchKill Switch
