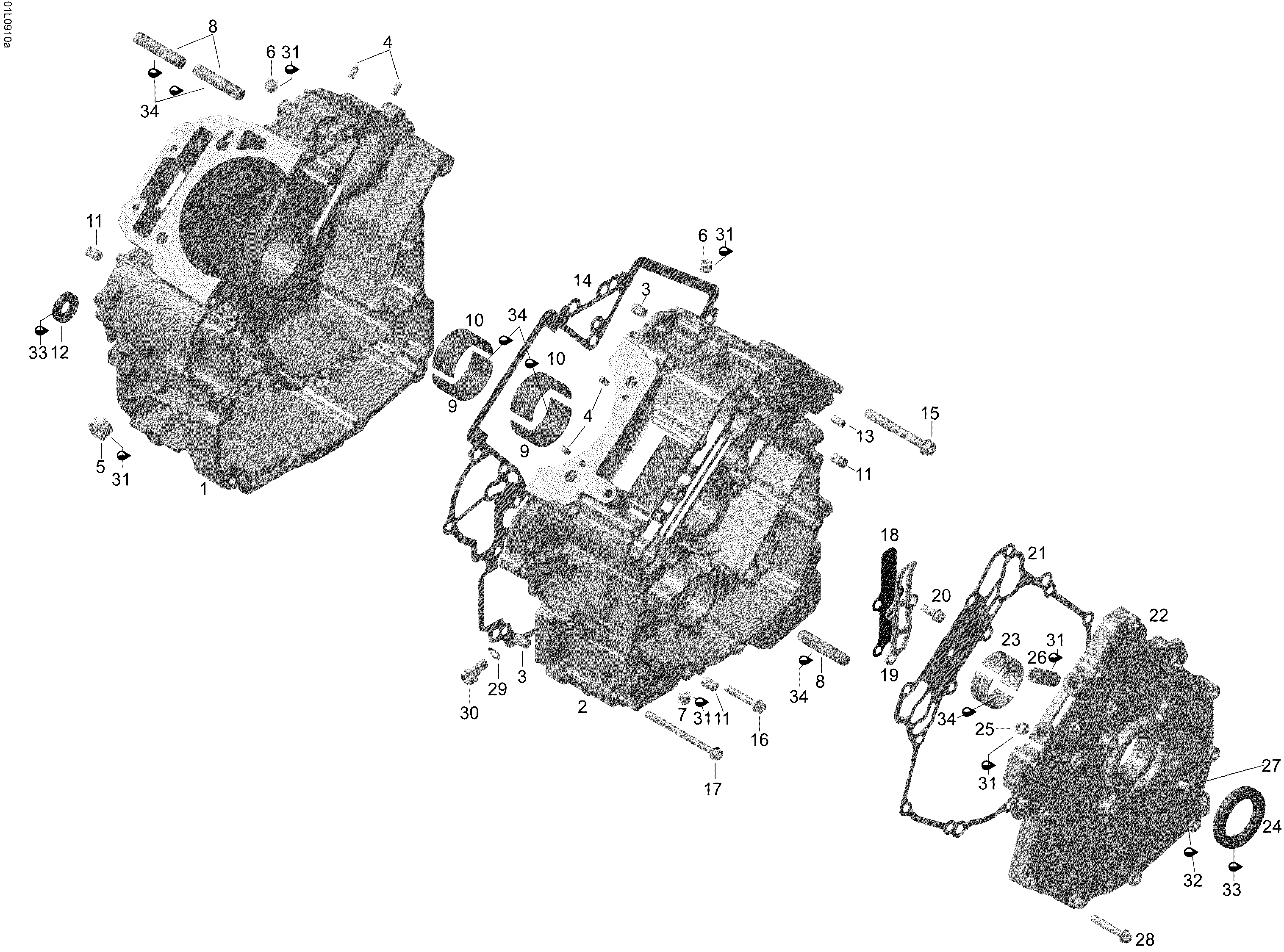

01- Crankcase для BRP Ski-Doo Skandic SWT - 2009
-
№АртикулНазвание
-
—420684558 Crankcase Ass'y. Includes 1 to 13Crankcase Ass'y. Includes 1 to 13
-
3420632010 Pin 8 X 12Pin 8 X 12
-
4420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
5420240170 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
6420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
7420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
8420229301 Location PinLocation Pin
-
9420233960 Plain BearingPlain Bearing
-
10420233965 Plain BearingPlain Bearing
-
11420632010 Pin 8 X 12Pin 8 X 12
-
12420650310 Oil SealOil Seal
-
13420932780 Needle PinNeedle Pin
-
14420651220 GasketGasket
-
15420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
16420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
17420440652 Flanged Torx Screw M6 X 75Flanged Torx Screw M6 X 75
-
18420224720 Valve PlateValve Plate
-
19420224725 Reed Valve StopReed Valve Stop
-
20420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
21420651211 GasketGasket
-
22420611147 PTO Cover Ass'y. Includes 22 to 27PTO Cover Ass'y. Includes 22 to 27
-
23420233995 Bearing SleeveBearing Sleeve
-
24420631932 Oil SealOil Seal
-
25420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
26420256332 Hose NippleHose Nipple
-
27420841771 Set Screw M6 X 8Set Screw M6 X 8
-
28420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
29420950141 Sealing RingSealing Ring
-
30420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
33293550030 Grease, Super LubeGrease, Super Lube
-
34293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
