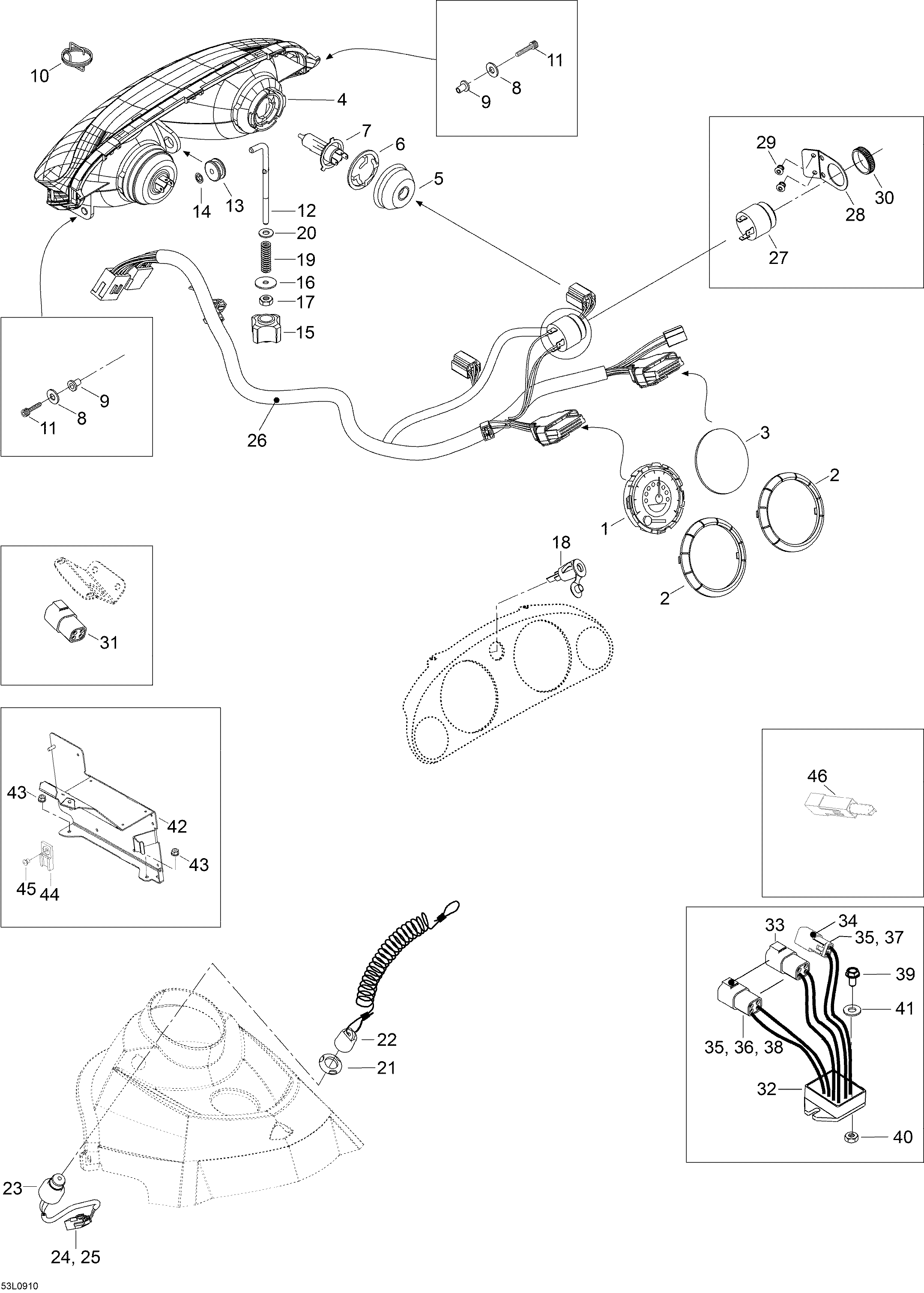

10- Electrical Accessories для BRP Ski-Doo Skandic SWT - 2009
-
№АртикулНазвание
-
1515176477 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515175901 Bottom RingBottom Ring
-
4515176311 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515175910 Bulb HolderBulb Holder
-
8M20008 Washer 5 mmWasher 5 mm
-
9250100018 Nut M5Nut M5
-
10M5447238 SpringSpring
-
11M40235 Screw M5X35Screw M5X35
-
12605450023 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
14732610072 Push NutPush Nut
-
15515175548 HandleHandle
-
16M20038 WasherWasher
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18605352915 Power outlet kit (Revo)Power outlet kit (Revo)
-
19415100600 SpringSpring
-
20234061410 Flat Washer 6 mmFlat Washer 6 mm
-
21278000508 Safety Switch NutSafety Switch Nut
-
22515176461 DESS Cap. Includes 23 to 25DESS Cap. Includes 23 to 25
-
23515175797 Dess SwitchDess Switch
-
24515175232 Male TerminalMale Terminal
-
25515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
26605153275 Harness Ass'yHarness Ass'y
-
27515176035 HornHorn
-
28M5447941 HolderHolder
-
29M36005 RivetRivet
-
30414805101 Plastic NutPlastic Nut
-
31515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
32515176243 Voltage Regulator. Includes 32 to 38Voltage Regulator. Includes 32 to 38
-
33278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
34278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
35515175568 Male TerminalMale Terminal
-
36278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
37278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
38293000052 Sealing CapSealing Cap
-
39207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
41M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
42605353300 Device PlateDevice Plate
-
43M33200 Nut M6Nut M6
-
44515175917 ClipClip
-
45M36005 RivetRivet
-
46605355837 CapacitorCapacitor
