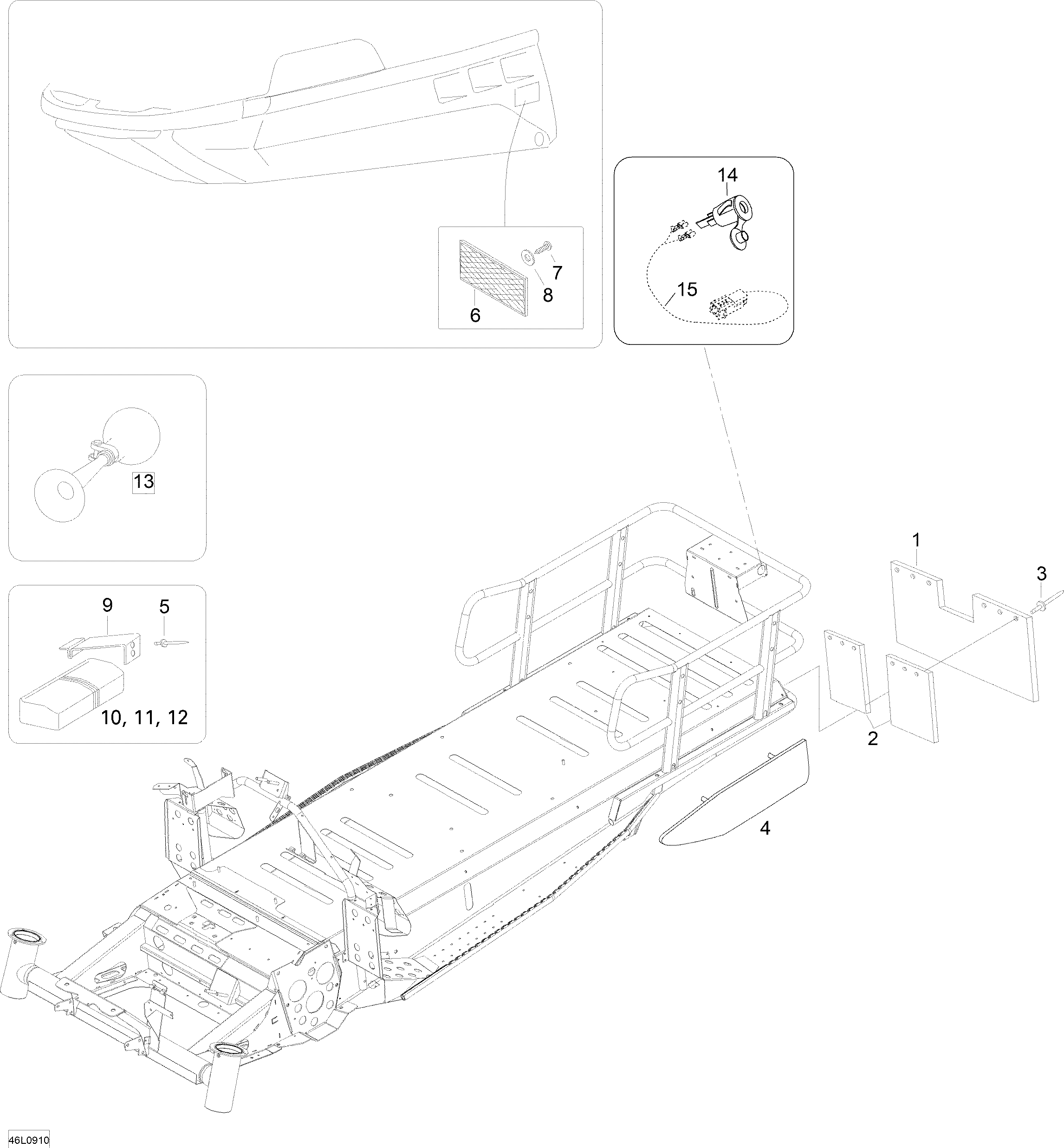

09- Utilities для BRP Ski-Doo Skandic SWT - 2009
-
№АртикулНазвание
-
1605354720 Snow GuardSnow Guard
-
2605355316 SupportSupport
-
3M36037 RivetRivet
-
4605354746 LH Side Snow GuardLH Side Snow Guard
-
4605354747 RH Side Snow GuardRH Side Snow Guard
-
5M36108 RivetRivet
-
6414510200 Reflector, AmberReflector, Amber
-
7M40063 Screw M5x12Screw M5x12
-
8234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
9M5346728 Spring PlateSpring Plate
-
10605352219 Tool SetTool Set
-
11A50121179000 Tool BoxTool Box
-
13M21003 HornHorn
-
14605352915 Power outlet kit (Revo)Power outlet kit (Revo)
-
15605354674 Power Outlet HarnessPower Outlet Harness
