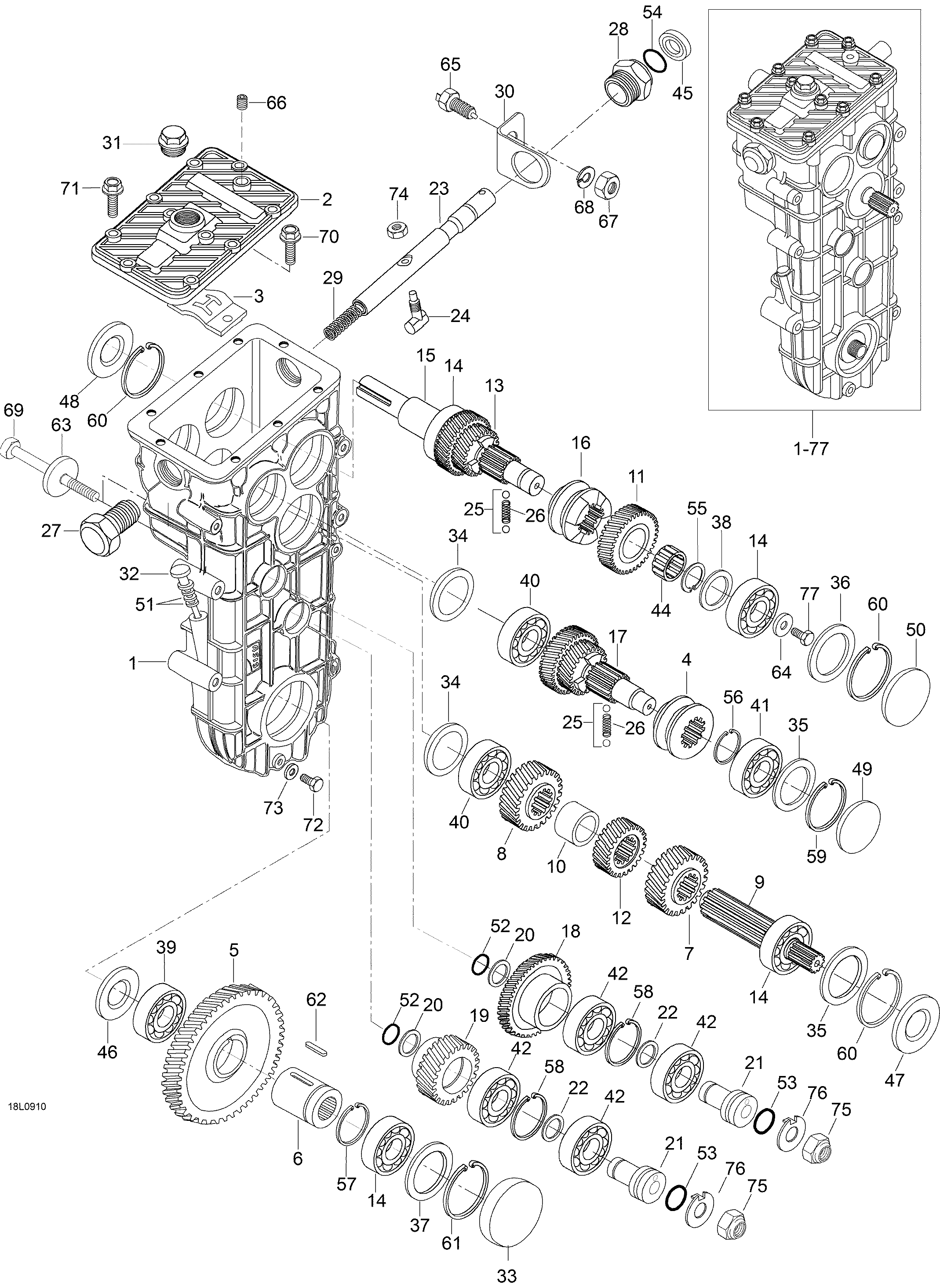

05- Transmission для BRP Ski-Doo Skandic SWT - 2009
-
№АртикулНазвание
-
—605612003 Gear Box. Includes 1 to 77Gear Box. Includes 1 to 77
-
1M875156138 Chain CaseChain Case
-
2M875156043 CoverCover
-
3M875156111 H SchemeH Scheme
-
4M875156005 Clutch WheelClutch Wheel
-
5M875156057 Sprocket 59 ThSprocket 59 Th
-
6M875156218 ShaftShaft
-
7M875156136 Sprocket 27 ThSprocket 27 Th
-
8M875156054 Sprocket 34 ThSprocket 34 Th
-
9M875156069 ShaftShaft
-
10M875156088 SleeveSleeve
-
11M875156135 Sprocket 29 ThSprocket 29 Th
-
12M875156060 Sprocket 24 ThSprocket 24 Th
-
13M875156155 Variator Shaft. Includes 13 to 15Variator Shaft. Includes 13 to 15
-
14M610063050 Ball BearingBall Bearing
-
15M875156153 SleeveSleeve
-
16M875156005 Clutch WheelClutch Wheel
-
17M875156068 Reverse ShaftReverse Shaft
-
18M875156059 Sprocket 33 ThSprocket 33 Th
-
19M875156058 Sprocket 26 ThSprocket 26 Th
-
20M875156328 RingRing
-
21619230005 ShaftShaft
-
22619230004 WasherWasher
-
23M875156072 ShaftShaft
-
24M875156073 PinPin
-
25M616810064 BallBall
-
26M875156105 SpringSpring
-
27M875156076 Sleeve NutSleeve Nut
-
28M875156077 Sleeve NutSleeve Nut
-
29M875156078 SpringSpring
-
30M875156242 BracketBracket
-
31M875156098 PlugPlug
-
32M875156278 DipstickDipstick
-
33M614100068 PlugPlug
-
34M875152953 PlugPlug
-
35M617395568 ShimShim
-
36M617395065 ShimShim
-
37M617395568 ShimShim
-
38M616092542 Axial WasherAxial Washer
-
39M6008 Ball BearingBall Bearing
-
40M610063044 Ball BearingBall Bearing
-
41M6304 Ball BearingBall Bearing
-
42M612030303 BearingBearing
-
43M610060084 Ball BearingBall Bearing
-
44M611002529 Needle BearingNeedle Bearing
-
45M614102031 Oil SealOil Seal
-
46M614102852 Oil SealOil Seal
-
47M614102562 Oil SealOil Seal
-
48M614103562 Oil SealOil Seal
-
49M614100052 PlugPlug
-
50M614100062 PlugPlug
-
51M614600725 O'RingO'Ring
-
52M614601224 O'RingO'Ring
-
53M614602431 O'RingO'Ring
-
54M614601523 O'RingO'Ring
-
55M617450025 CirclipCirclip
-
56M617450028 CirclipCirclip
-
57M617300040 CirclipCirclip
-
58M617330047 CirclipCirclip
-
59M617330052G Lock RingLock Ring
-
60M617330062 Lock RingLock Ring
-
61M617330068 CirclipCirclip
-
62M603345080 KeyKey
-
63619230004 WasherWasher
-
64M875156112 WasherWasher
-
65M654100225 Backup SenderBackup Sender
-
66M640025012S Threated PlugThreated Plug
-
67M33021 NutNut
-
68M20016 WasherWasher
-
69619230003 ScrewScrew
-
70M40337 Hex. ScrewHex. Screw
-
71M537001402 ScrewScrew
-
72M528801342 PlugPlug
-
73M615580812 Gasket RingGasket Ring
-
74M510611002 NutNut
-
75M510600802 Nut M10Nut M10
-
76M875156327 WasherWasher
-
77207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
