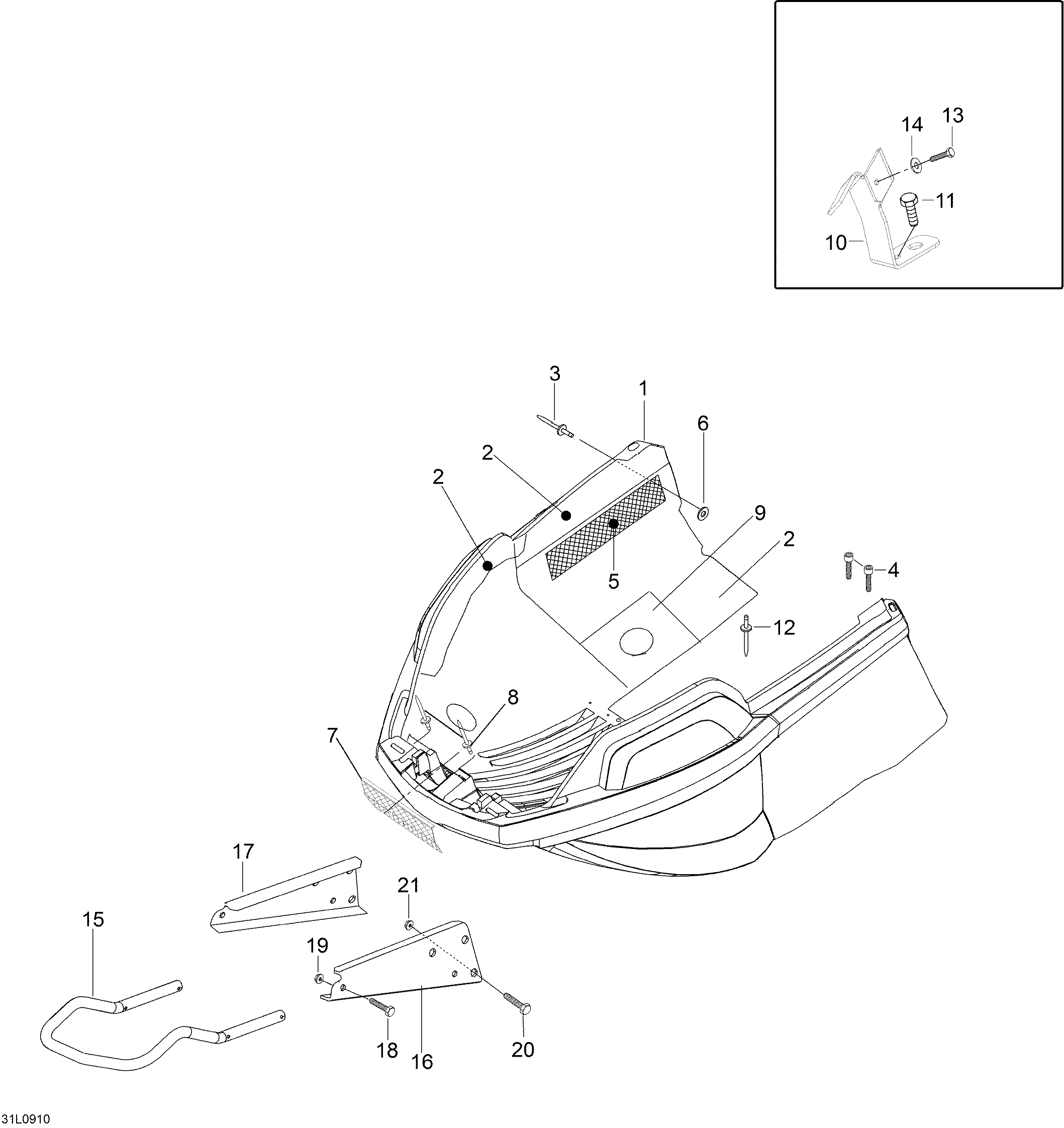

09- Bottom Pan для BRP Ski-Doo Skandic SWT - 2009
-
№АртикулНазвание
-
1605254970 Bottom Pan Ass'yBottom Pan Ass'y
-
2619690002 Isolation SheetIsolation Sheet
-
3M36108 RivetRivet
-
4M40332 ScrewScrew
-
5605354968 RH Side GrillRH Side Grill
-
5605354969 LH Side GrillLH Side Grill
-
6M20008 Washer 5 mmWasher 5 mm
-
7605255513 Front GrillFront Grill
-
8M36009 RivetRivet
-
9M44001 Reflective SheetReflective Sheet
-
10605354709 LH BracketLH Bracket
-
10605354710 RH BracketRH Bracket
-
11M40401 Screw-hex.cap M6x10Screw-hex.cap M6x10
-
12M36037 RivetRivet
-
13210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
14M20008 Washer 5 mmWasher 5 mm
-
15605255112 BumperBumper
-
16605355113 LH Bumper PlateLH Bumper Plate
-
17605355114 RH Bumper PlateRH Bumper Plate
-
18207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
19M33200 Nut M6Nut M6
-
20207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
21M33201 Elastic Stop Nut M8Elastic Stop Nut M8
