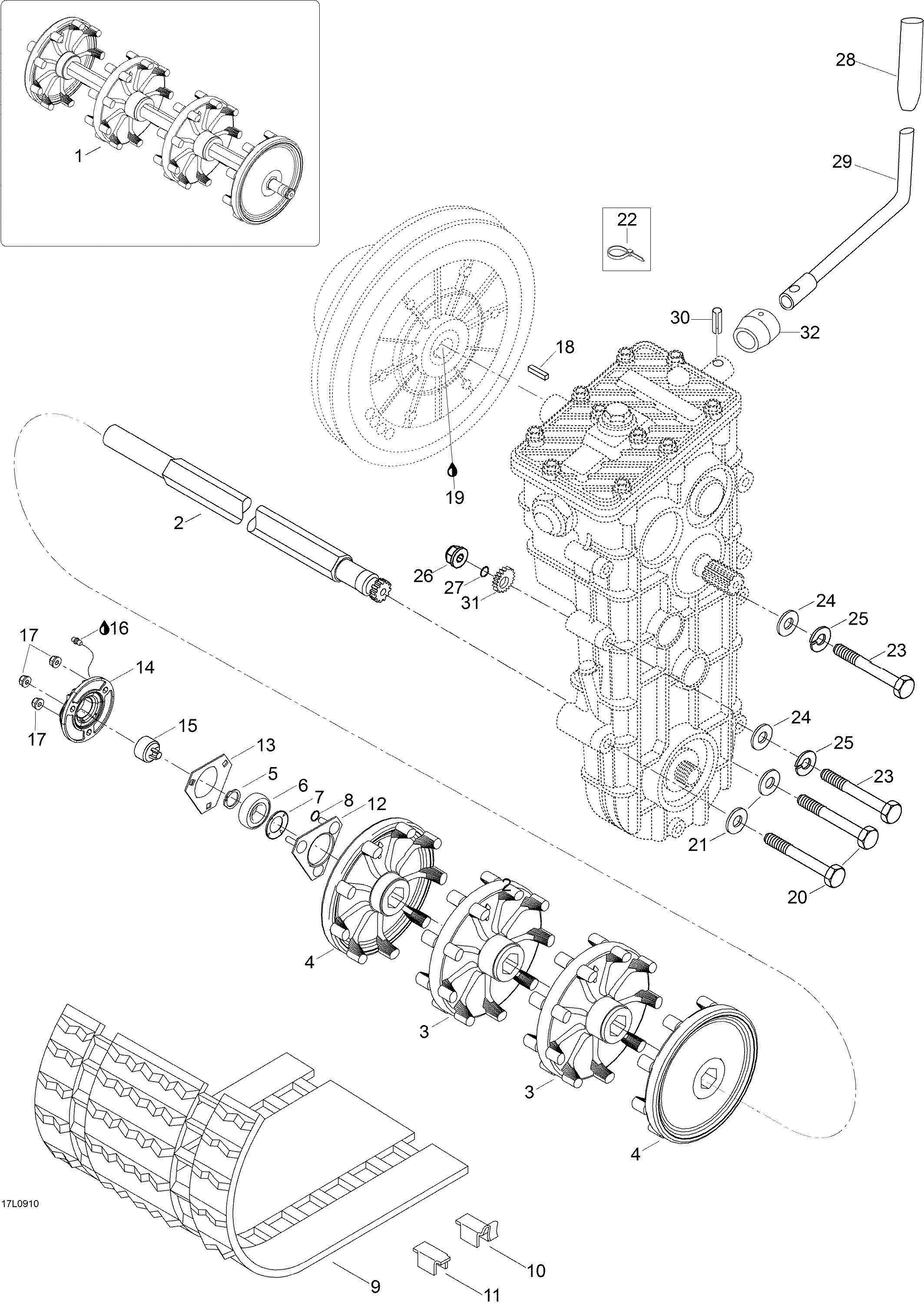

05- Drive System для BRP Ski-Doo Skandic SWT - 2009
-
№АртикулНазвание
-
2605249972 Drive AxleDrive Axle
-
3414931800 SprocketSprocket
-
4415067400 Half SprocketHalf Sprocket
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8414484400 O-RingO-Ring
-
9M13081 Track. Includes 9 to 11Track. Includes 9 to 11
-
10M5318323 Guide CleatGuide Cleat
-
11M5318322 CleatCleat
-
12504151860 Bearing HousingBearing Housing
-
13501025000 FlangeFlange
-
14504152173 Flange, SpeedoFlange, Speedo
-
15504152040 Magnetic AdaptorMagnetic Adaptor
-
16293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
17M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
18M418763 KeyKey
-
19293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
20M40012 Screw M8 X 80Screw M8 X 80
-
21234081410 Flat Washer 8 mmFlat Washer 8 mm
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
23M40089 ScrewScrew
-
24M20010 WasherWasher
-
25234181401 Lock Washer 8 mmLock Washer 8 mm
-
26M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
27506151140 O-RingO-Ring
-
28M28247 Arm Shifter BallArm Shifter Ball
-
29605350153 Shift HandleShift Handle
-
30M41008 Pin SpringPin Spring
-
31605454017 ToolsTools
-
32M5446699 SleeveSleeve
