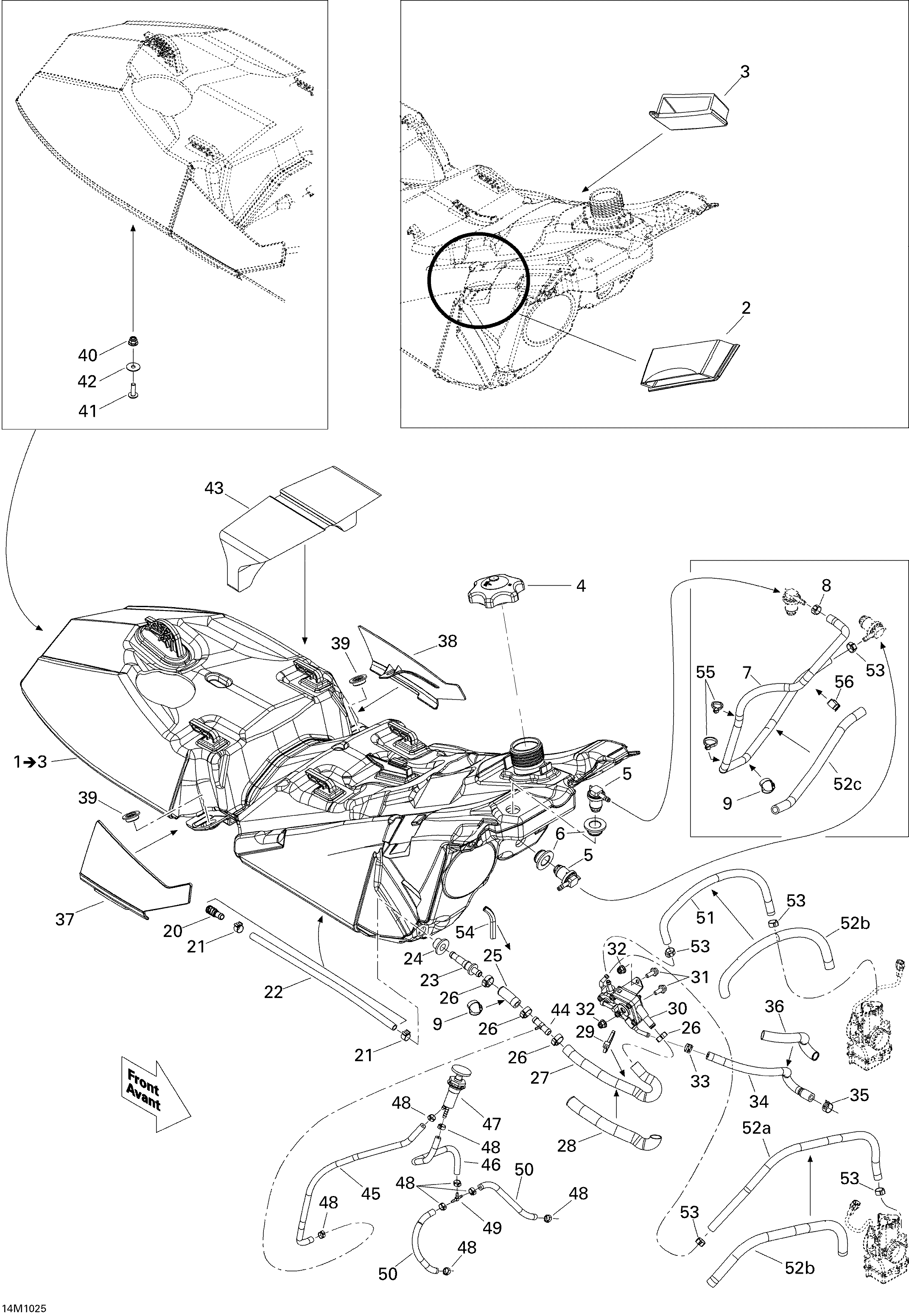

02- Fuel System для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1513033576 Fuel Tank. Includes 1 to 3Fuel Tank. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033103 Fuel Tank CapFuel Tank Cap
-
5513033517 Male ConnectorMale Connector
-
6513033596 GrommetGrommet
-
7513033565 HoseHose
-
8293650025 Oetiker Gear ClampOetiker Gear Clamp
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20414872100 Fuel FilterFuel Filter
-
21513033010 Norma Spring ClampNorma Spring Clamp
-
22513033332 HoseHose
-
23414872700 Male ConnectorMale Connector
-
24513033435 GrommetGrommet
-
25513033444 HoseHose
-
26293650053 Crimp ClampCrimp Clamp
-
27513033439 Formed HoseFormed Hose
-
28513033461 TubingTubing
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30513033420 Fuel PumpFuel Pump
-
31207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33414415200 Universal Spring ClampUniversal Spring Clamp
-
34513033111 Formed HoseFormed Hose
-
35513033029 Spring ClampSpring Clamp
-
36409901800 Tubing 13 mmTubing 13 mm
-
37513033418 RH CapRH Cap
-
38513033419 LH CapLH Cap
-
39513033326 Shoulder BushingShoulder Bushing
-
40233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
41250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
42224060201 Flat WasherFlat Washer
-
43513033528 FoamFoam
-
44415119300 T-FittingT-Fitting
-
45513033423 HoseHose
-
46513033423 HoseHose
-
47513033441 PrimerPrimer
-
48293650043 ClipClip
-
49414222400 T-FittingT-Fitting
-
50513033423 HoseHose
-
51513033448 HoseHose
-
52a513033448 HoseHose
-
52b409901800 Tubing 13 mmTubing 13 mm
-
52c409901800 Tubing 13 mmTubing 13 mm
-
53293650025 Oetiker Gear ClampOetiker Gear Clamp
-
54414506600 TrimTrim
-
55293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
56414227300 ClipClip
