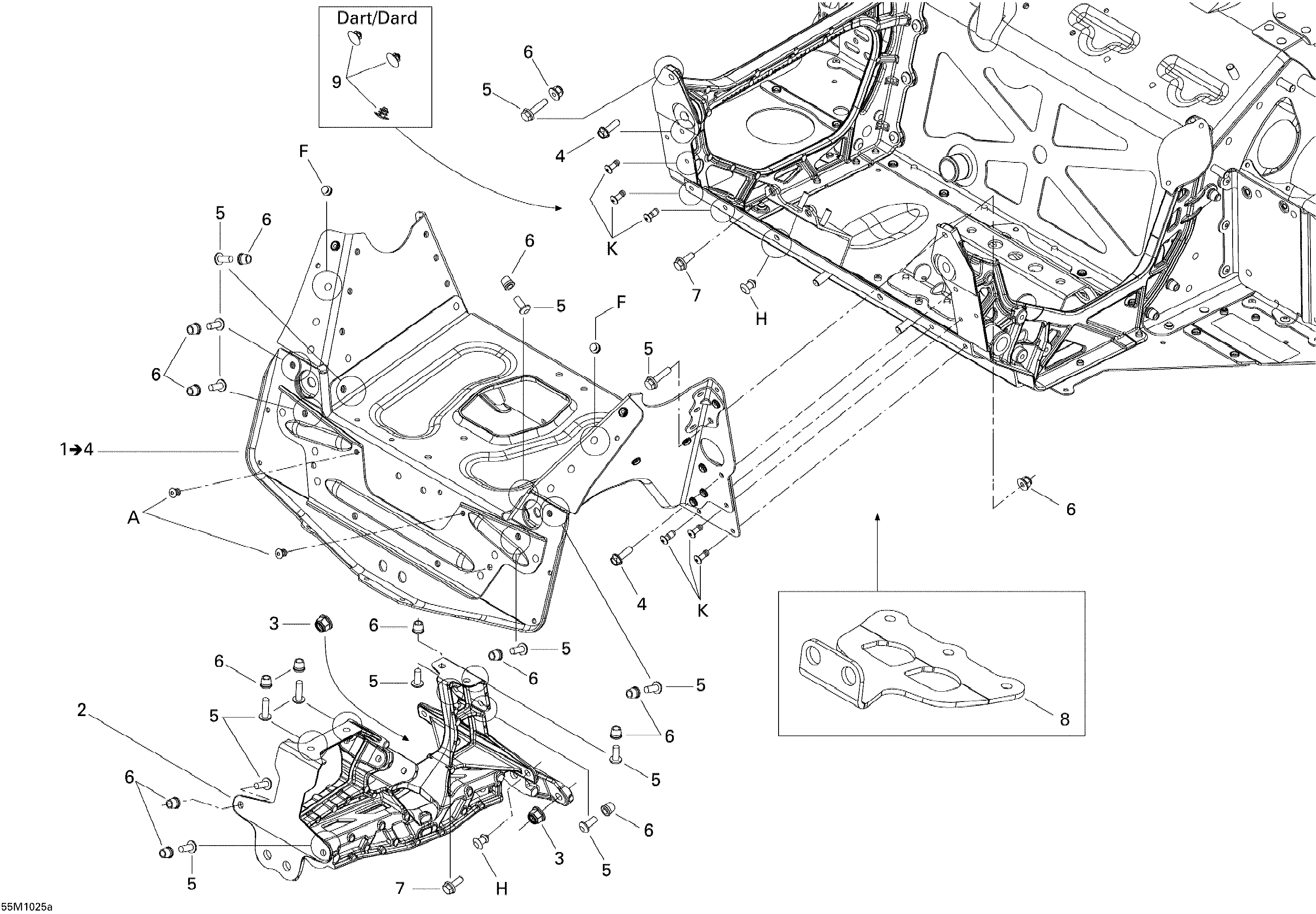

09- Frame and Components 1 для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1518325946 S Module. Includes 1 to 4S Module. Includes 1 to 4
-
2518325925 Front Suspension SupportFront Suspension Support
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8518326466 Module ReinforcementModule Reinforcement
-
9293730042 DartDart
-
A293150144 Stavex RivetStavex Rivet
-
B293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
C293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
D293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
E390909200 Avex RivetAvex Rivet
-
F293150091 Henrob RivetHenrob Rivet
-
G293150146 Henrob RivetHenrob Rivet
-
H293150147 Hemlock RivetHemlock Rivet
-
I293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
J390909100 Avex RivetAvex Rivet
-
K293150175 Monobolt RivetMonobolt Rivet
-
L293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
