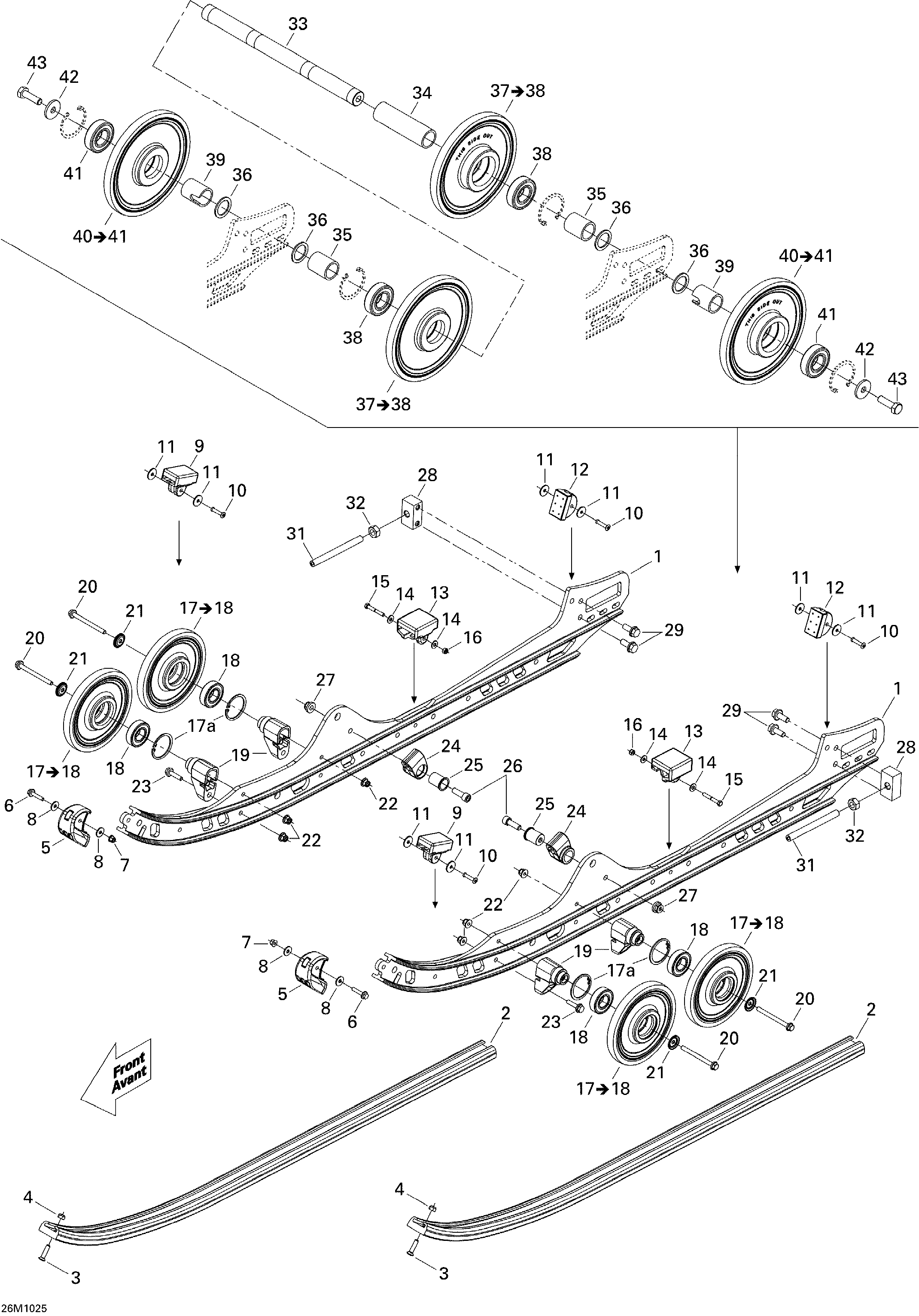

08- Rear Suspension для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1503192291 RunnerRunner
-
2503190573 Slider ShoeSlider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503192099 Rubber StopperRubber Stopper
-
14391301700 WasherWasher
-
15207053544 Hex. Screw M5 X 35Hex. Screw M5 X 35
-
16232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
17503191316 Wheel 141 Ass'y. Includes 17 to 18Wheel 141 Ass'y. Includes 17 to 18
-
17a415129371 Retaining RingRetaining Ring
-
18503190396 Ball BearingBall Bearing
-
19503191833 SupportSupport
-
20207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
21503191820 Wheel Cup M6Wheel Cup M6
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
24503191183 Spring SupportSpring Support
-
25503190754 Retainer CushionRetainer Cushion
-
26205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
27233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
28503191984 TensionerTensioner
-
29207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
31504152602 Adjustment ScrewAdjustment Screw
-
32233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
33503167900 Rear AxleRear Axle
-
34503156000 Center SpacerCenter Spacer
-
35503182900 Inner SpacerInner Spacer
-
36503180400 WasherWasher
-
37503189568 Wheel 165 Ass'Y. Includes 37 to 38Wheel 165 Ass'Y. Includes 37 to 38
-
38293350055 Ball BearingBall Bearing
-
39503189809 Outer SpacerOuter Spacer
-
40503189568 Wheel 165 Ass'Y. Includes 40 to 41Wheel 165 Ass'Y. Includes 40 to 41
-
41293350055 Ball BearingBall Bearing
-
42503183300 WasherWasher
-
43250000019 Hex. Screw With NylonHex. Screw With Nylon
