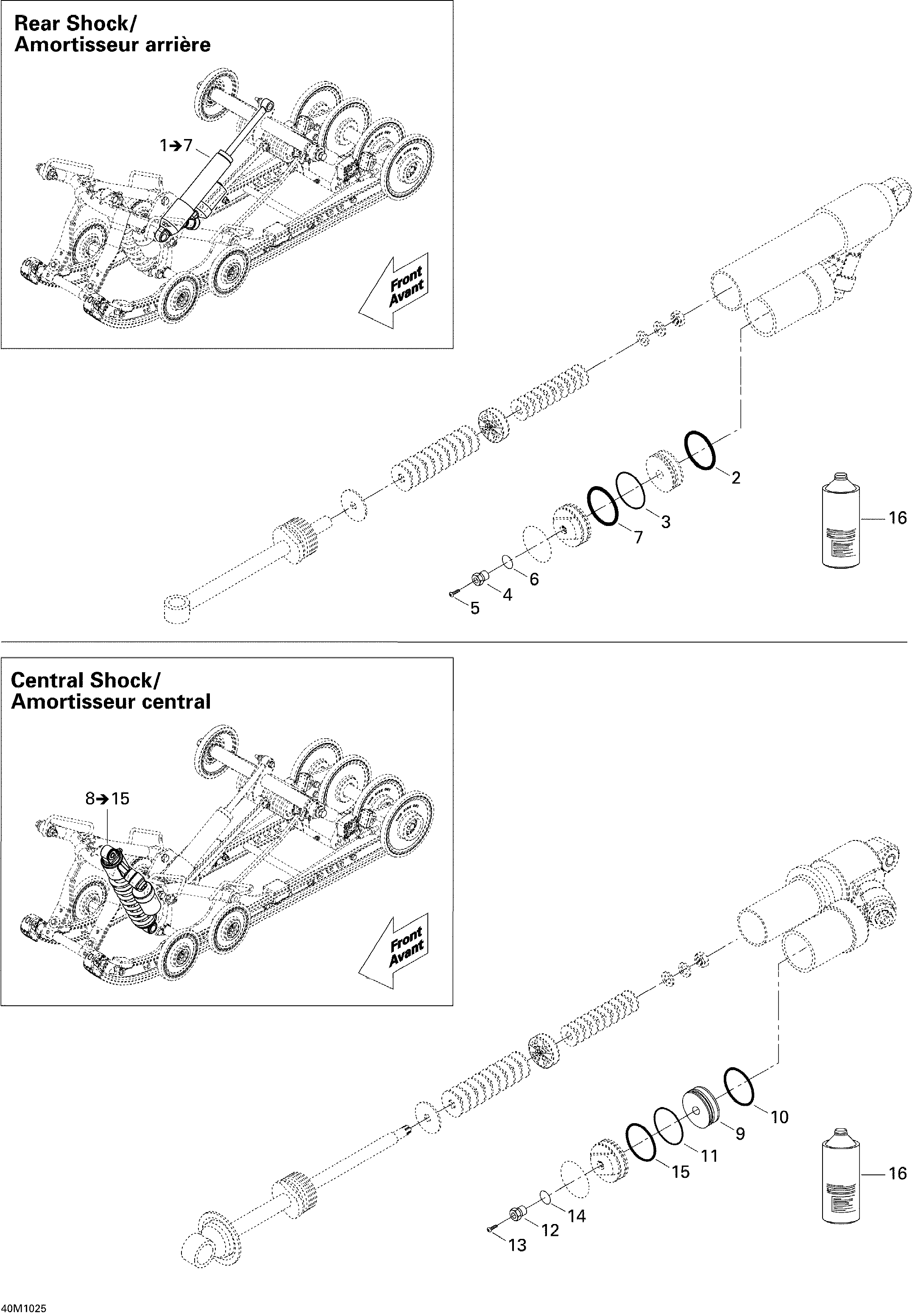

08- Take Apart Shock, Rear для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1503192325 Rear Shock. Includes 1 to 7Rear Shock. Includes 1 to 7
-
2415093807 O-RingO-Ring
-
3415093805 Stop RingStop Ring
-
4505070398 Air Valve RingAir Valve Ring
-
5505070399 ScrewScrew
-
6505070400 O-RingO-Ring
-
7415093804 O-RingO-Ring
-
8503192327 Center Shock. Includes 8 to 15Center Shock. Includes 8 to 15
-
9505071016 Free PistonFree Piston
-
10415093807 O-RingO-Ring
-
11415093805 Stop RingStop Ring
-
12505070398 Air Valve RingAir Valve Ring
-
13505070399 ScrewScrew
-
14505070400 O-RingO-Ring
-
15415093804 O-RingO-Ring
-
16293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
