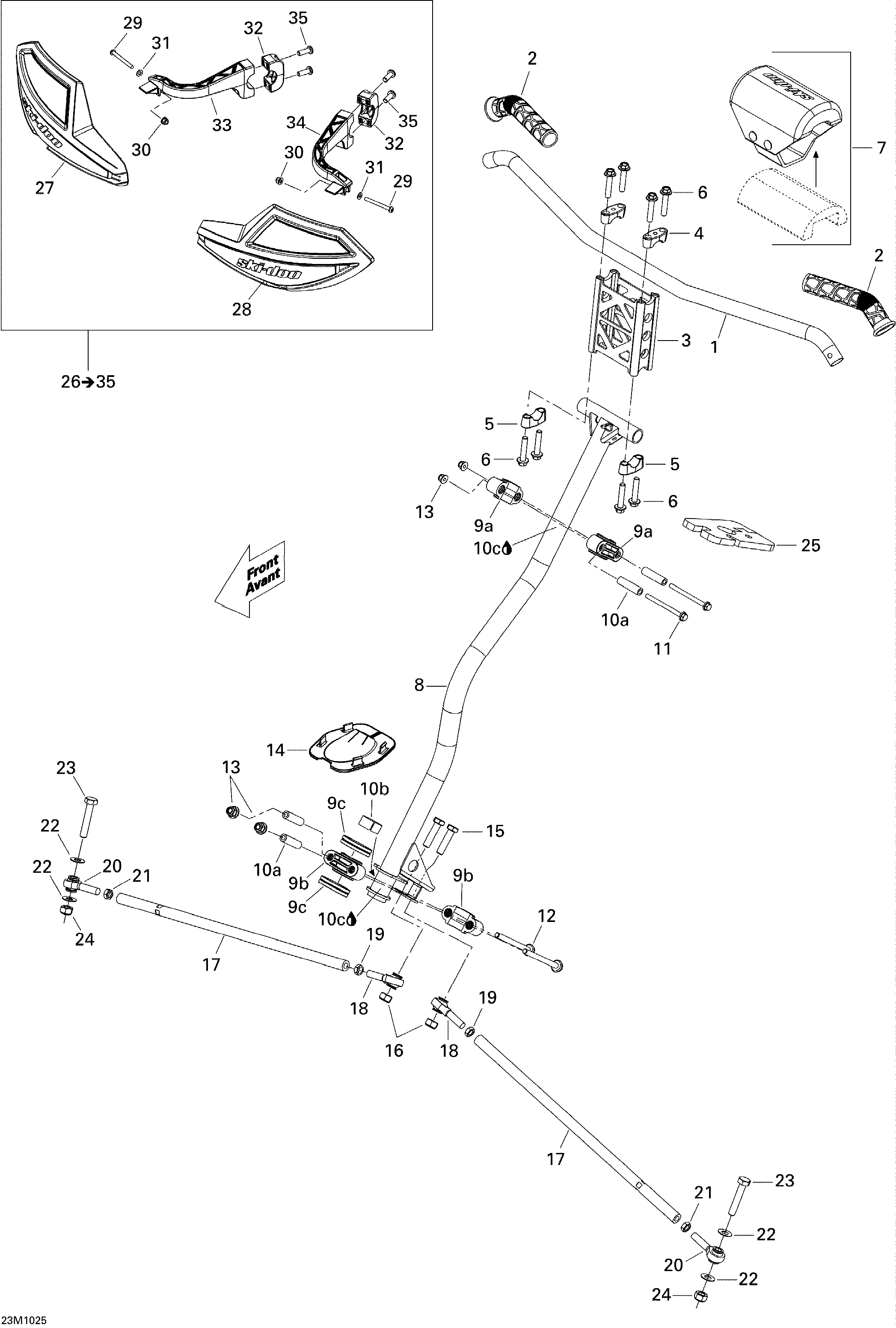

07- Steering для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1506152087 Hand BarHand Bar
-
2506152226 GripGrip
-
3506152457 Handle Bar ExtensionHandle Bar Extension
-
4506152394 Upper Steering SupportUpper Steering Support
-
5506152395 Lower Steering SupportLower Steering Support
-
6250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
7506152165 Steering PadSteering Pad
-
8506152478 Main TubeMain Tube
-
9a506152293 Half-HousingHalf-Housing
-
9b506152217 Lower Half HousingLower Half Housing
-
9c506152218 Lower Vibration RingLower Vibration Ring
-
10a506152297 Housing BushingHousing Bushing
-
10b506152440 Retaining RingRetaining Ring
-
10c219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
11207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
12207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
13233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14506152163 PlatePlate
-
15207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
16232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
17506152413 Tie RodTie Rod
-
18506152081 LH Thread Ball JointLH Thread Ball Joint
-
19250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
20506152019 RH Thread Ball JointRH Thread Ball Joint
-
21732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
22506152194 WasherWasher
-
23207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
24232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25506152476 CushionCushion
-
26517303793 Deflector Kit. Includes 26 to 35Deflector Kit. Includes 26 to 35
-
27517303623 RH DeflectorRH Deflector
-
28517303624 LH DeflectorLH Deflector
-
29205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
30232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
31234041480 Flat Washer 4 mmFlat Washer 4 mm
-
32517303264 U-ClampU-Clamp
-
33517303590 RH Deflector SupportRH Deflector Support
-
34517303591 LH Deflector SupportLH Deflector Support
-
35250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
