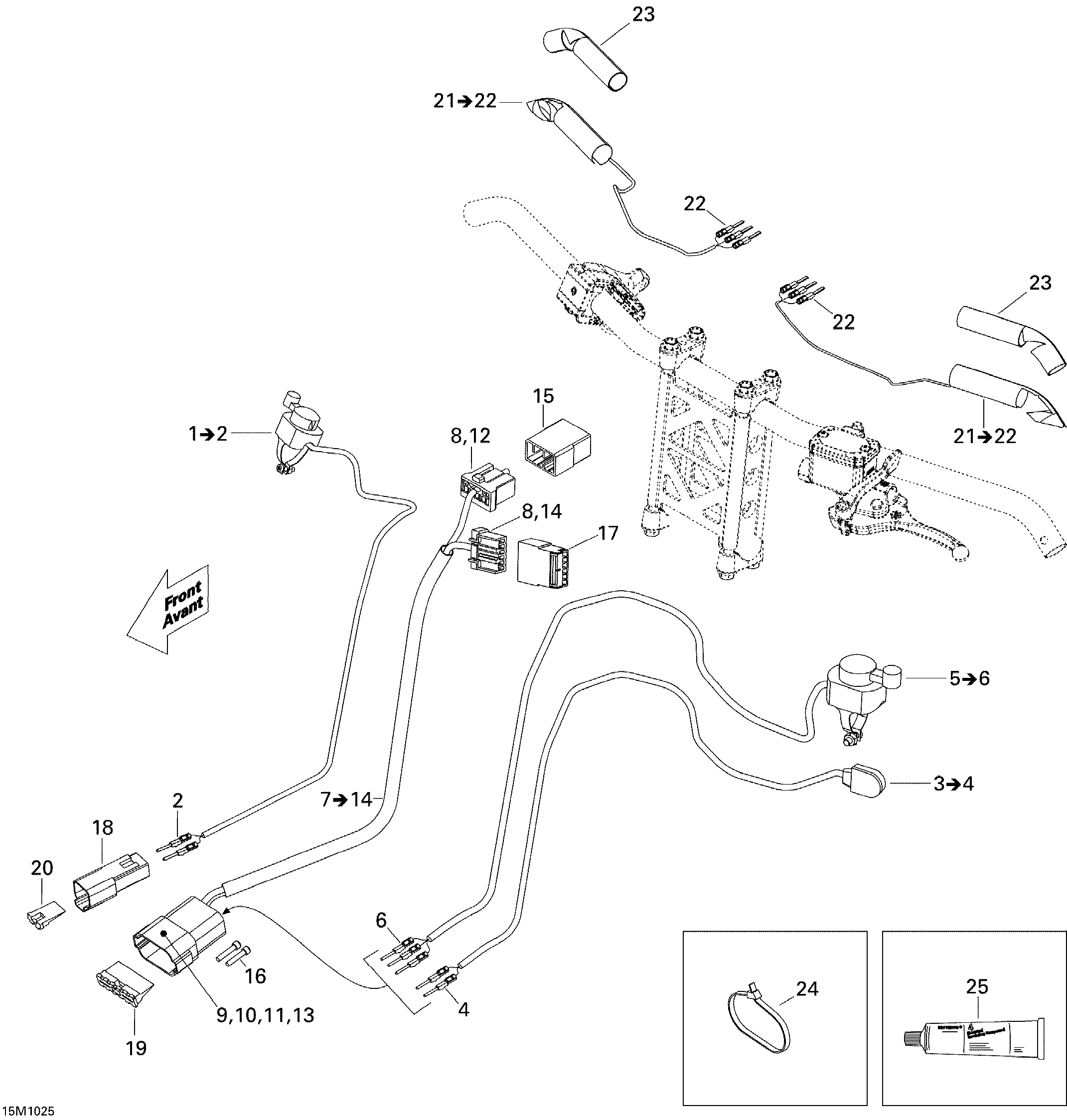

10- Steering Wiring Harness для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1515176797 Kill Switch. Includes 1 to 2Kill Switch. Includes 1 to 2
-
2515175768 Male TerminalMale Terminal
-
3515176631 Switch. Includes 3 to 4Switch. Includes 3 to 4
-
4515175768 Male TerminalMale Terminal
-
5515176798 Dimmer Switch. Includes 5 to 6Dimmer Switch. Includes 5 to 6
-
6515175768 Male TerminalMale Terminal
-
7515176633 Steering Harness. Includes 7 to 14Steering Harness. Includes 7 to 14
-
8515175231 Female TerminalFemale Terminal
-
9278000631 Male TerminalMale Terminal
-
10409015600 Male Lock, 12 CircuitsMale Lock, 12 Circuits
-
11293000052 Sealing CapSealing Cap
-
12515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
13515175669 Male HousingMale Housing
-
14515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
15515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
16293000052 Sealing CapSealing Cap
-
17515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
18515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
19409015600 Male Lock, 12 CircuitsMale Lock, 12 Circuits
-
20409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
21506152371 Heating Element. Includes 21 to 22Heating Element. Includes 21 to 22
-
22515175232 Male TerminalMale Terminal
-
23506152360 InsulantInsulant
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
