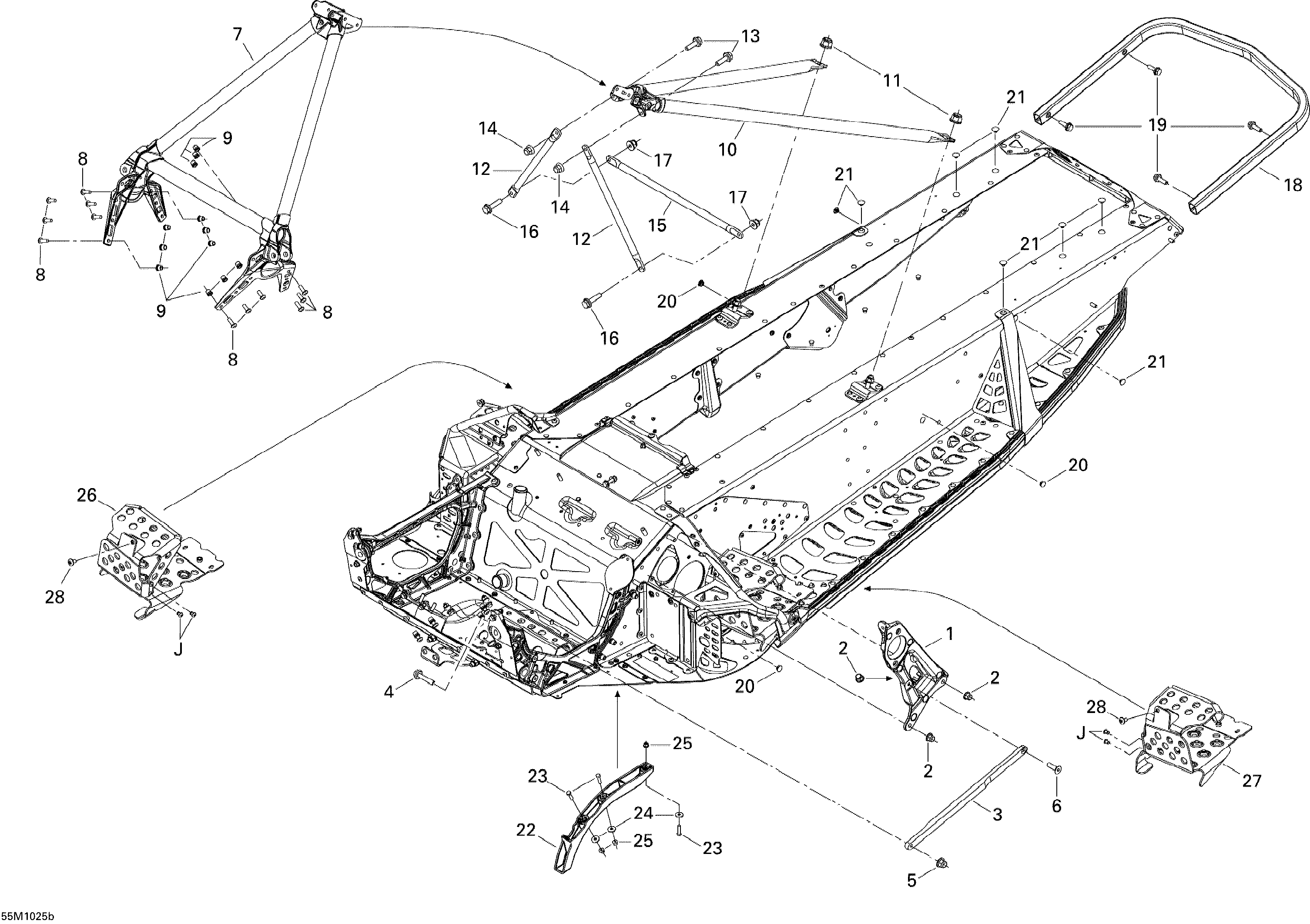

09- Frame and Components 2 для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1518326369 Pulley SupportPulley Support
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3518326118 LinkLink
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
7518326273 Front MemberFront Member
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10518325927 Rear MemberRear Member
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12518325114 Upper Column SupportUpper Column Support
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15518325115 Center Column SupportCenter Column Support
-
16207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18518324980 Rear BumperRear Bumper
-
19250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
20293730041 Dart 8 mmDart 8 mm
-
21293730042 DartDart
-
22518324985 Front ProtectorFront Protector
-
23207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
24391301600 WasherWasher
-
25233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
26518326396 Footrest RHFootrest RH
-
27518326397 Footrest LHFootrest LH
-
28250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
A293150144 Stavex RivetStavex Rivet
-
B293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
C293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
D293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
E390909200 Avex RivetAvex Rivet
-
F293150091 Henrob RivetHenrob Rivet
-
G293150146 Henrob RivetHenrob Rivet
-
H293150147 Hemlock RivetHemlock Rivet
-
I293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
J390909100 Avex RivetAvex Rivet
-
K293150175 Monobolt RivetMonobolt Rivet
-
L293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
