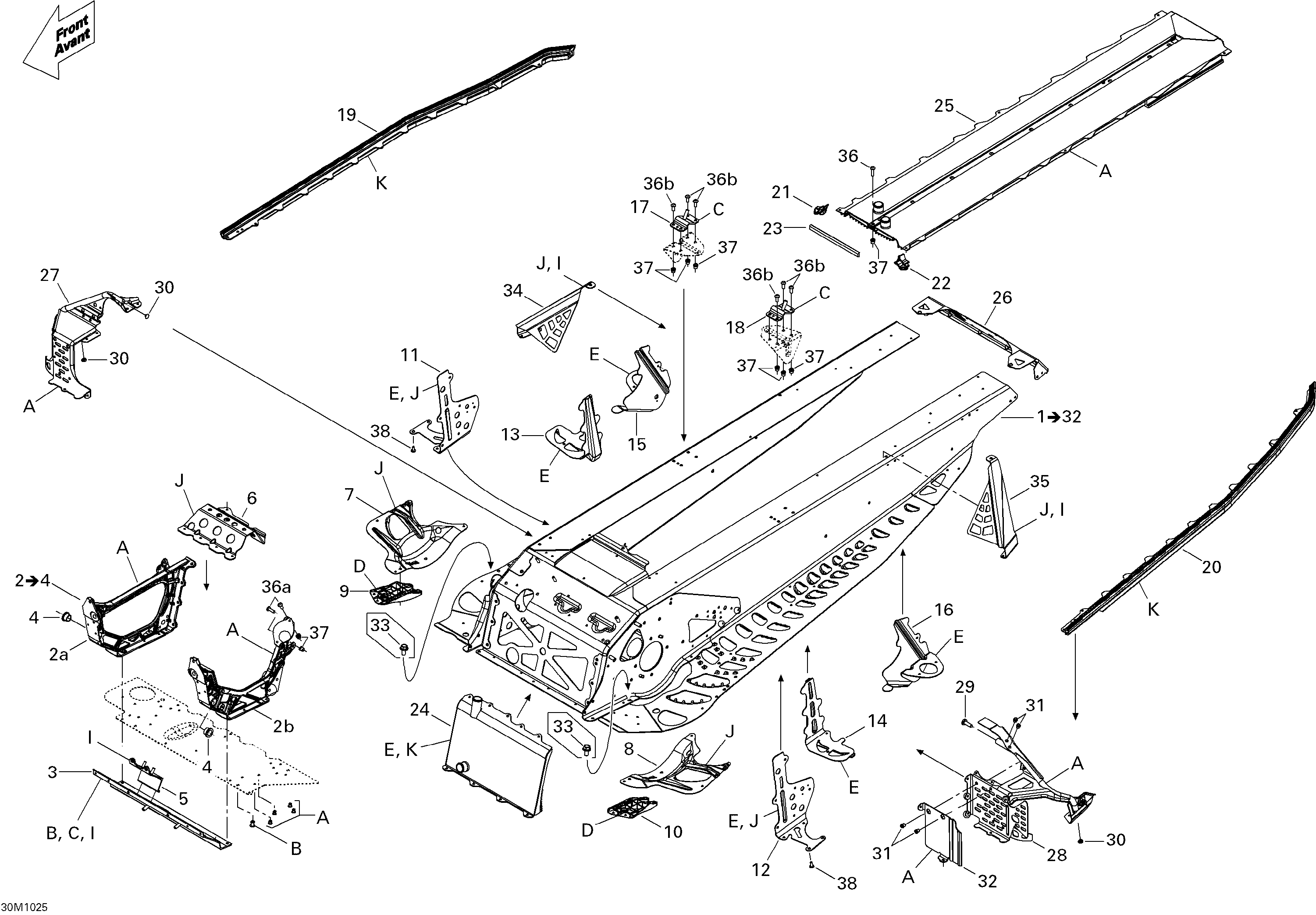

09- Frame для BRP Ski-Doo MX Z X 600RS - 2010
-
№АртикулНазвание
-
1415129470 Frame XC. Includes 1 to 32Frame XC. Includes 1 to 32
-
2518326290 E Module Ass'y. Includes 2 to 4E Module Ass'y. Includes 2 to 4
-
2a518325922 RH MemberRH Member
-
2b518325923 LH MemberLH Member
-
3518326198 Front MemberFront Member
-
4505070954 CushionCushion
-
5518325943 MAG Engine SupportMAG Engine Support
-
6518325796 Link CrossLink Cross
-
7518326468 Foot Reinforcement RHFoot Reinforcement RH
-
8518326469 Foot Reinforcement LHFoot Reinforcement LH
-
9518325782 RH DeflectorRH Deflector
-
10518325783 LH DeflectorLH Deflector
-
11518326460 RH Front RetainerRH Front Retainer
-
12518326461 LH Front RetainerLH Front Retainer
-
13518325747 RH ReinforcementRH Reinforcement
-
14518325748 LH ReinforcementLH Reinforcement
-
15518326493 RH Rear SupportRH Rear Support
-
16518326494 LH Rear SupportLH Rear Support
-
17518325973 RH Rear BaseRH Rear Base
-
18518325974 LH Rear BaseLH Rear Base
-
19518326282 RH Foot RollerRH Foot Roller
-
20518326283 LH Foot RollerLH Foot Roller
-
21518325653 RH SealRH Seal
-
22518325654 LH SealLH Seal
-
23293200105 Neoprene SealNeoprene Seal
-
24518326486 Front RadiatorFront Radiator
-
25518326344 Rear RadiatorRear Radiator
-
26518325421 Rear CapRear Cap
-
27518326216 RH StirupRH Stirup
-
28518326239 LH StirupLH Stirup
-
29250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
30293730042 DartDart
-
31293450268 InsertInsert
-
32518326188 PlatePlate
-
33207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
34518326280 RH Foot StiffenerRH Foot Stiffener
-
35518326281 LH Foot StiffenerLH Foot Stiffener
-
36a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
36b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
37233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
A293150144 Stavex RivetStavex Rivet
-
B293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
C293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
D293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
E390909200 Avex RivetAvex Rivet
-
F293150091 Henrob RivetHenrob Rivet
-
G293150146 Henrob RivetHenrob Rivet
-
H293150147 Hemlock RivetHemlock Rivet
-
I293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
J390909100 Avex RivetAvex Rivet
-
K293150175 Monobolt RivetMonobolt Rivet
-
L293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
