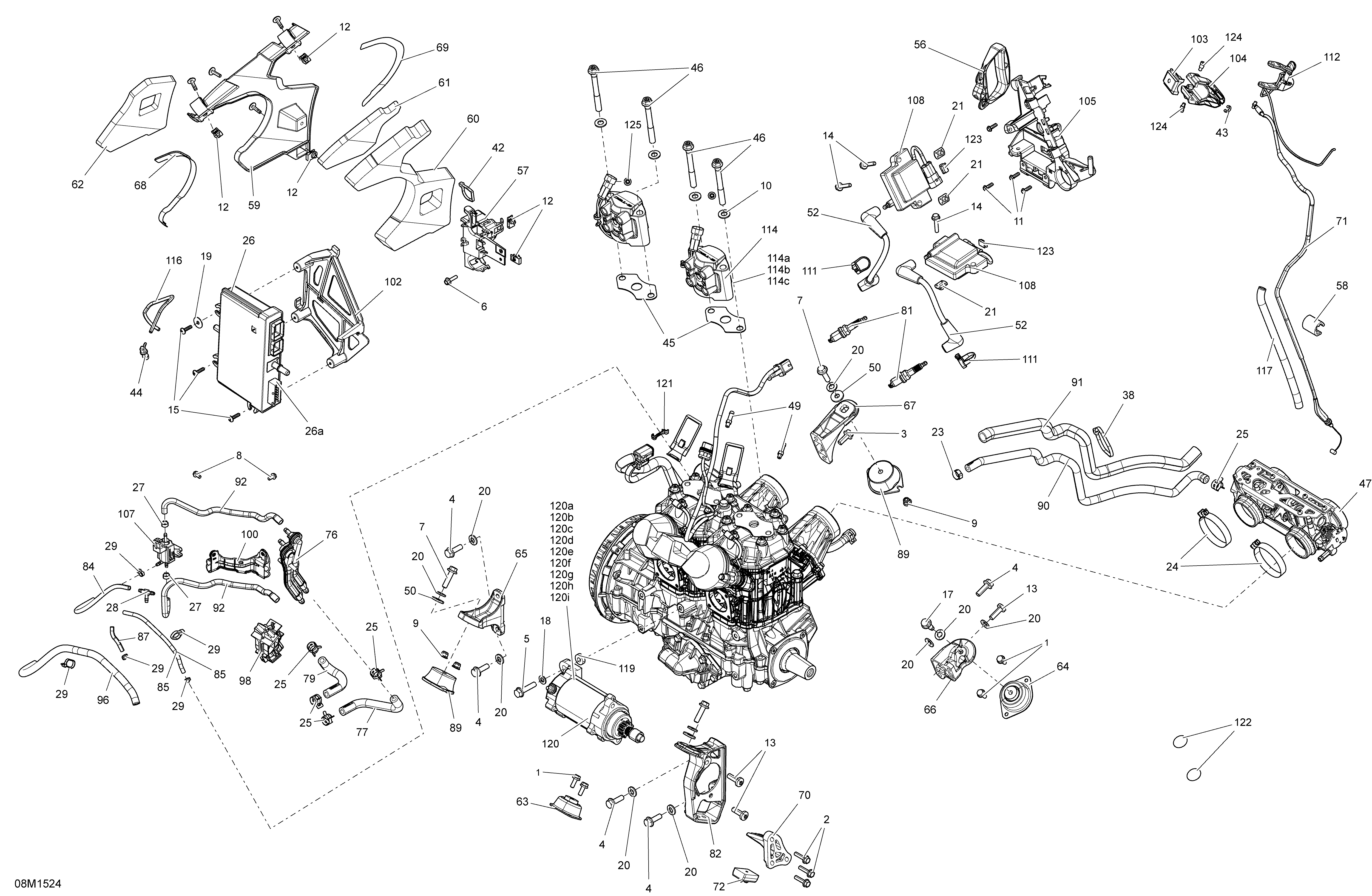

01- Engine _08M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
6207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
7207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
8210251180 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
12250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
14250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
15250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
16250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
17250000570 Hex. Screw M8Hex. Screw M8
-
18250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
19250200040 Flat WasherFlat Washer
-
20250200146 Conical Spring Washer M8Conical Spring Washer M8
-
21293100003 Nut M6Nut M6
-
23293650046 Oetiker ClampOetiker Clamp
-
24293650158 Gemi ClampGemi Clamp
-
25293650214 Norma Spring ClampNorma Spring Clamp
-
26512060997 Calibrated Module. Includes 26 to 26aCalibrated Module. Includes 26 to 26a
-
26a512060780 Calibrated ModuleCalibrated Module
-
27293650234 Crimp ClampCrimp Clamp
-
28293710068 T-FittingT-Fitting
-
29293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43414274500 CirclipCirclip
-
44414814100 Male ConnectorMale Connector
-
45420430930 GasketGasket
-
46420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
47420889197 Throttle BodyThrottle Body
-
49420924724 Hose NippleHose Nipple
-
50503183200 Washer, YellowWasher, Yellow
-
52512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
56512060136 Starter GripStarter Grip
-
57512060298 Solenoid SupportSolenoid Support
-
58512060313 ProtectorProtector
-
59512060339 Noise ShieldNoise Shield
-
60512060343 Interior Noise FoamInterior Noise Foam
-
61512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
62512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
63512060387 Rubber MountRubber Mount
-
64512060448 Rubber MountRubber Mount
-
65512060469 Front Support, MAGFront Support, MAG
-
66512060478 Rear Support, PTORear Support, PTO
-
67512060559 Rear Support, MAGRear Support, MAG
-
68512060574 Heat ShieldHeat Shield
-
69512060575 Heat ShieldHeat Shield
-
70512060576 Stopper SupportStopper Support
-
71512060611 Throttle CableThrottle Cable
-
72512060627 StopperStopper
-
76512060692 ManifoldManifold
-
77512060694 RH Formed HoseRH Formed Hose
-
79512060695 LH Formed HoseLH Formed Hose
-
81415129375 Spark PlugSpark Plug
-
82512060699 Front Support, PTOFront Support, PTO
-
84270000374 Hose 4.3 mmHose 4.3 mm
-
85270000374 Hose 4.3 mmHose 4.3 mm
-
87270000374 Hose 4.3 mmHose 4.3 mm
-
89512060729 Rubber MountRubber Mount
-
90512060740 Formed Hose, OutputFormed Hose, Output
-
91415080000 Tubing 16 mmTubing 16 mm
-
92415080200 Hose, PolyurethaneHose, Polyurethane
-
96409901700 Tubing 9 mmTubing 9 mm
-
98512060769 Manifold SupportManifold Support
-
100512060827 Hose SupportHose Support
-
102512060858 Calibrated Module SupportCalibrated Module Support
-
103512060859 Upper HousingUpper Housing
-
104512060860 Lower HousingLower Housing
-
105512060888 SupportSupport
-
107512060950 Solenoid ValveSolenoid Valve
-
108512060953 Ignition CoilIgnition Coil
-
111512060993 ClampClamp
-
112512061051 Handle Ass'yHandle Ass'y
-
114512061053 Fuel Injector. 08M1523Fuel Injector. 08M1523
-
114a415129497 Crush RingCrush Ring
-
114b415129498 O-RingO-Ring
-
114c415129499 O-RingO-Ring
-
116415080100 LineLine
-
117409901700 Tubing 9 mmTubing 9 mm
-
119515176500 WasherWasher
-
120515177389 Starter. Includes120 to 120iStarter. Includes120 to 120i
-
120a415129441 Clutch KitClutch Kit
-
120b415129333 Brush KitBrush Kit
-
120c410204500 Flat WasherFlat Washer
-
120d415129333 Brush KitBrush Kit
-
120e410212100 Brush KitBrush Kit
-
120f415129341 Starter BoltStarter Bolt
-
120g415129342 O-Ring KitO-Ring Kit
-
120h415129342 O-Ring KitO-Ring Kit
-
120i278000695 O-RingO-Ring
-
121515177770 LockerLocker
-
122518325560 Adhesive PatchAdhesive Patch
-
123710000992 ClipClip
-
124732601143 Flanged ScrewFlanged Screw
-
125732610072 Push NutPush Nut
