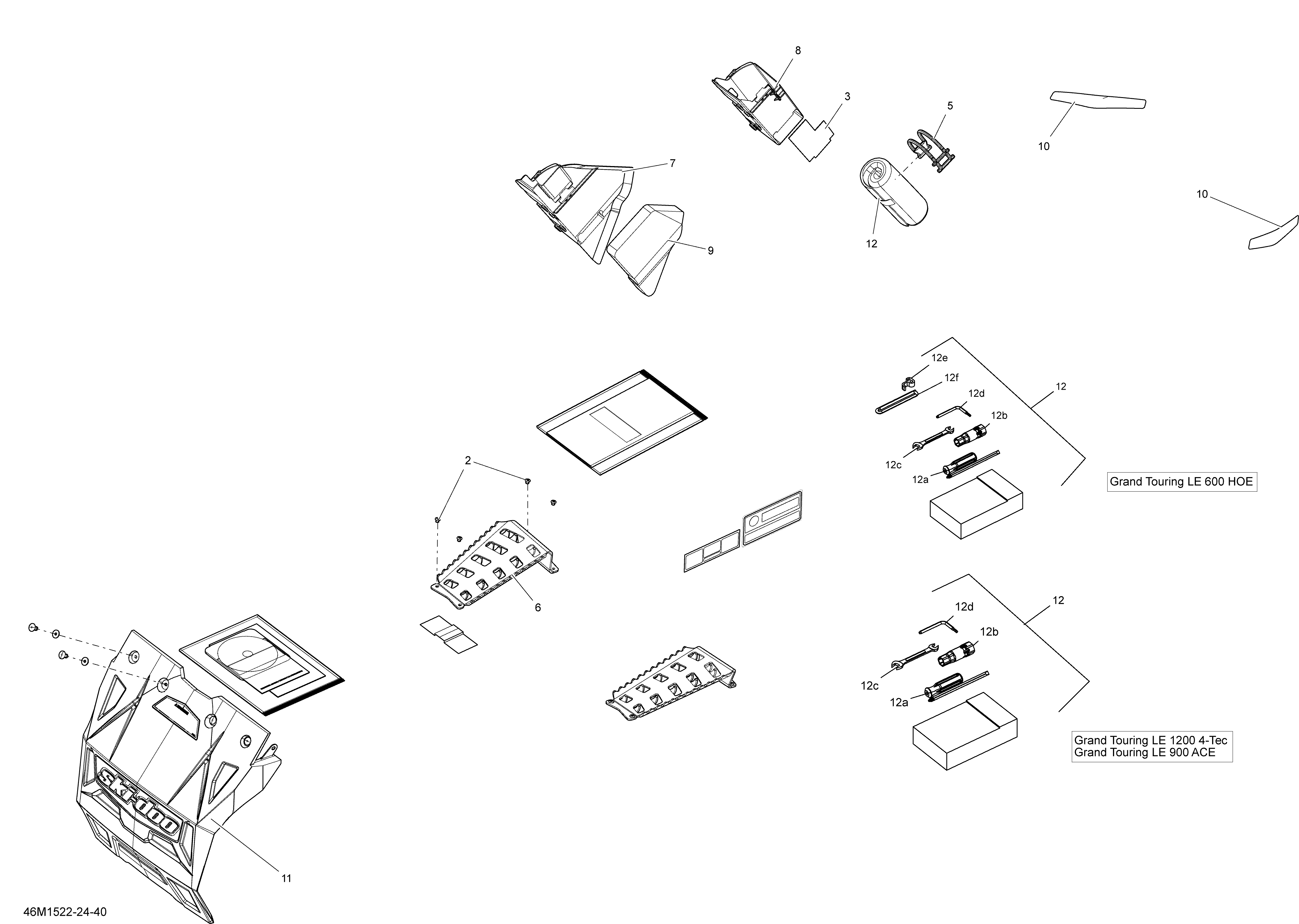

09- Utilities _46M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
2293150102 Rivet 3/16''Rivet 3/16''
-
5520000528 LatchLatch
-
6520000768 Mat Black RH FootrestMat Black RH Footrest
-
7520000720 Tool Kit RackTool Kit Rack
-
9520001060 FoamFoam
-
10520001234 Yellow Front Reflector XRYellow Front Reflector XR
-
11520001342 Snow GuardSnow Guard
-
12529000077 Tool Kit. Includes 12 To 12fTool Kit. Includes 12 To 12f
-
12a529000004 Screw DriverScrew Driver
-
12b529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
12c529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
12d520001142 Spacing ToolSpacing Tool
-
12e529000060 Starter GripStarter Grip
-
12f412500200 Starter Rope, MeterStarter Rope, Meter
