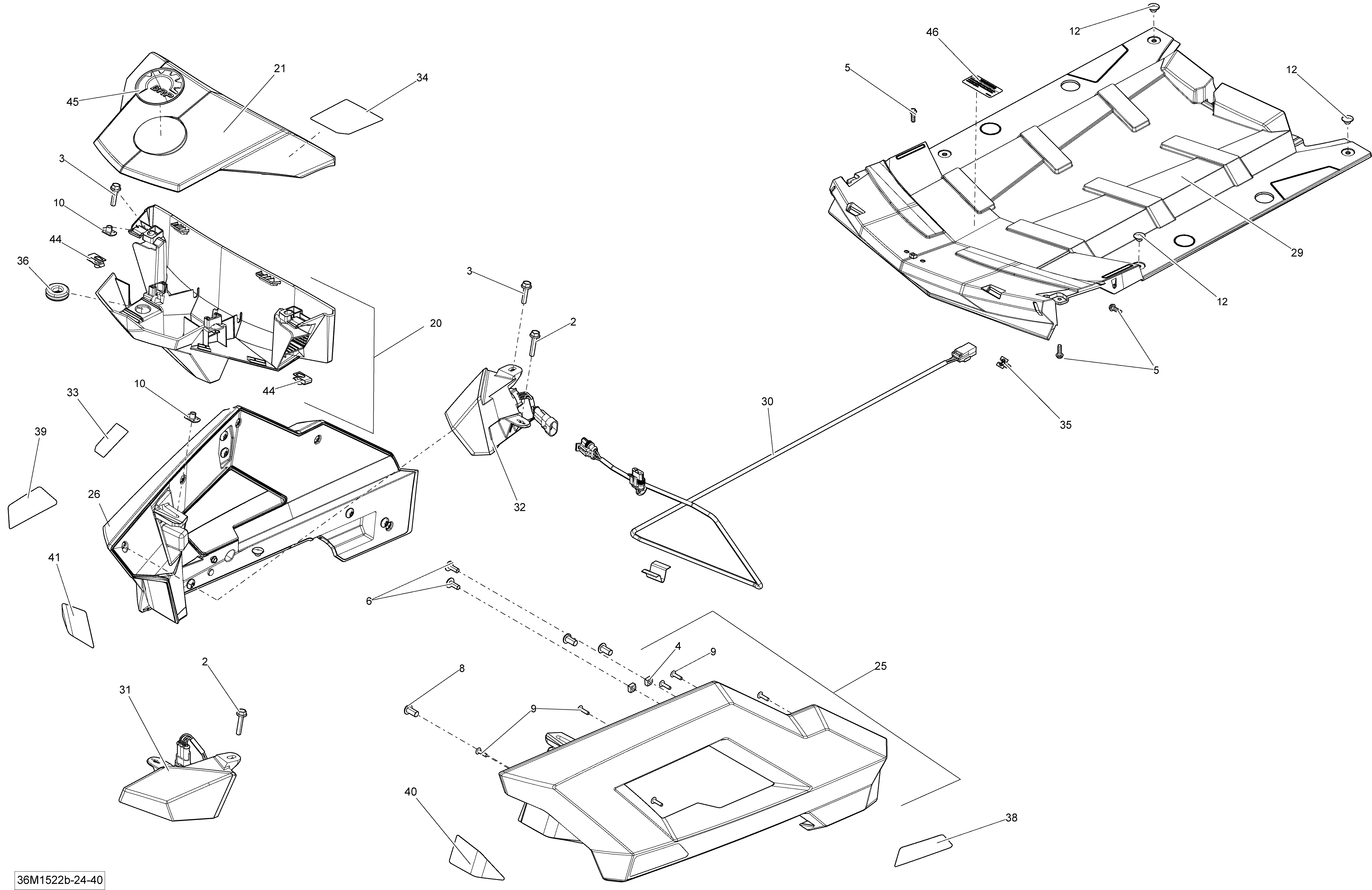

09- Luggage Rack _36M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
2207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
3207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4232862412 Square Nut M6Square Nut M6
-
4232862412 Square Nut M6Square Nut M6
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
6250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
9250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
9250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
10293100003 Nut M6Nut M6
-
12293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
20511000530 Rack Ass'yRack Ass'y
-
21511000545 CoverCover
-
25511000631 RH Arm Ass'yRH Arm Ass'y
-
26511000632 LH Arm Ass'yLH Arm Ass'y
-
29511000861 Radiator CoverRadiator Cover
-
30515176634 Harness RackHarness Rack
-
31515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
32515176850 LH Tail Light Ass'yLH Tail Light Ass'y
-
33516004585 Warning Decal, SecurityWarning Decal, Security
-
34516004603 Warning Decal, SecurityWarning Decal, Security
-
35517302785 ClipClip
-
36517303756 GrommetGrommet
-
38520000729 Red RH Rear ReflectorRed RH Rear Reflector
-
39520000730 Red LH Rear ReflectorRed LH Rear Reflector
-
40520000731 Red RH Rear ReflectorRed RH Rear Reflector
-
41520000732 Red LH Rear ReflectorRed LH Rear Reflector
-
44250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
45219903609 Logo BRP, 68 mmLogo BRP, 68 mm
-
46516005523 Warning DecalWarning Decal
