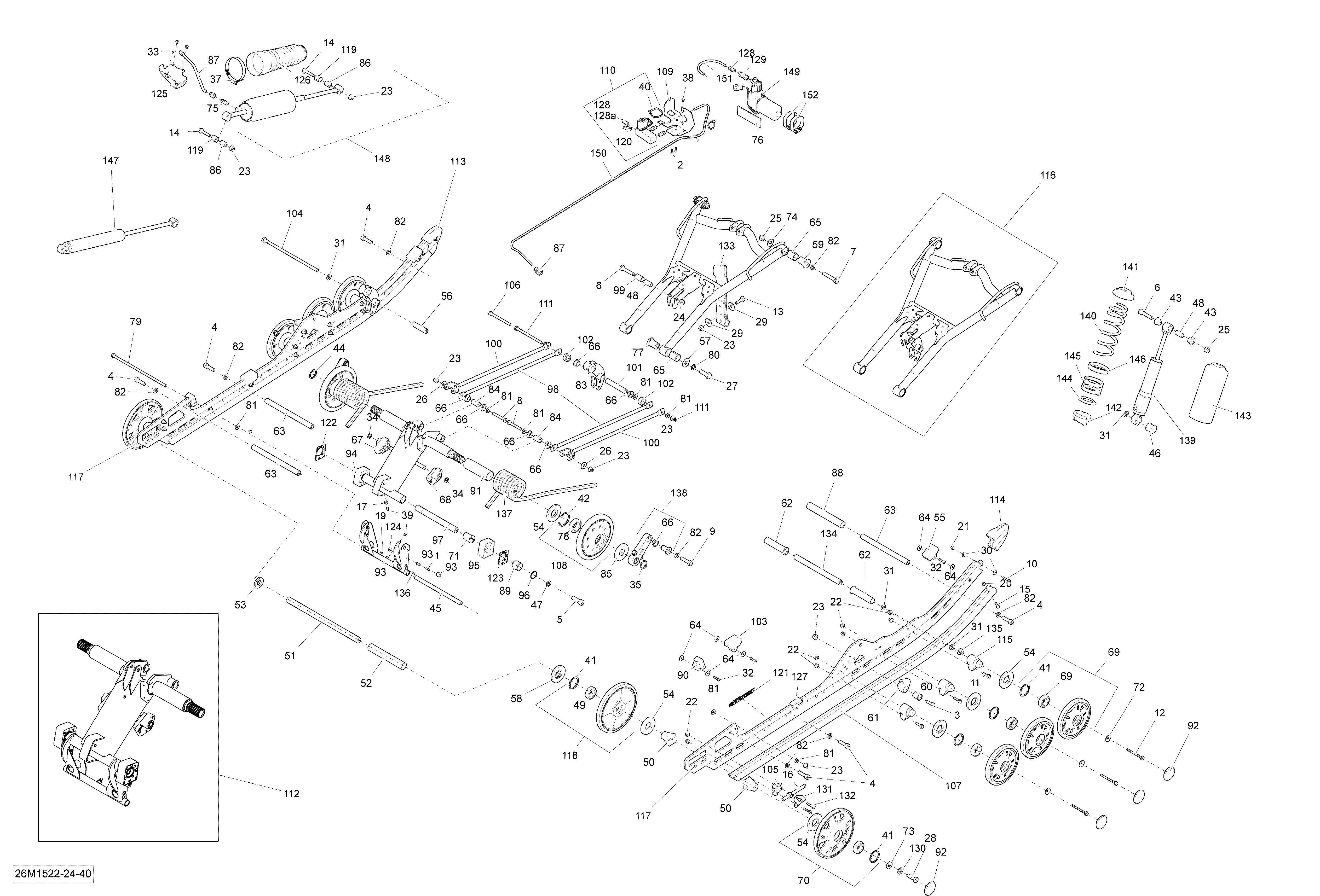

08- Rear Suspension _26M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
1205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
3205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
4205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
5205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
6207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
7207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
8207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
9207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
10207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
11207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
12207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
13207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
14207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
15208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
16230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
17232061404 Hexagonal NutHexagonal Nut
-
19232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
20232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
21233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
22233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
26234082410 Flat Washer 8 mmFlat Washer 8 mm
-
27250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
28250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
29250200128 Flat Washer 8 mmFlat Washer 8 mm
-
30250200140 WasherWasher
-
31250200143 Flat WasherFlat Washer
-
32293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
34293370013 E-CirclipE-Circlip
-
35293370080 Retaining RingRetaining Ring
-
39408200700 Grease FittingGrease Fitting
-
41415129371 Retaining RingRetaining Ring
-
42415129780 Retaining RingRetaining Ring
-
43503189117 CushionCushion
-
44503189146 Axle SpringAxle Spring
-
45503189156 Pivot Arm AxlePivot Arm Axle
-
46503189271 CushionCushion
-
47503189276 WasherWasher
-
48503189282 BushingBushing
-
49503190396 Ball BearingBall Bearing
-
50503190428 Rear Wheel SpacerRear Wheel Spacer
-
51503190429 Rear AxleRear Axle
-
52503190430 SpacerSpacer
-
53503190432 WasherWasher
-
54503190434 Labyrinth SealLabyrinth Seal
-
55503190576 Rubber StopperRubber Stopper
-
56503190643 Axle Bar (Long)Axle Bar (Long)
-
57503190656 WasherWasher
-
58503190682 Labyrinth SealLabyrinth Seal
-
59503190698 AxleAxle
-
60503190754 Retainer CushionRetainer Cushion
-
61503191183 Spring SupportSpring Support
-
62503191259 Center BushingCenter Bushing
-
63503191260 Axle StrapAxle Strap
-
64503191273 WasherWasher
-
65503191554 BushingBushing
-
66503191555 Swivel BushingSwivel Bushing
-
67503191565 LH Cam AdjusterLH Cam Adjuster
-
68503191566 RH Cam AdjusterRH Cam Adjuster
-
69503191624 Full Moon Wheel Ass'y, 147 mmFull Moon Wheel Ass'y, 147 mm
-
70503191627 Full Moon Wheel Ass'y, 180 mm. Package-LEFull Moon Wheel Ass'y, 180 mm. Package-LE
-
71503191640 CushionCushion
-
72503191820 Wheel Cup M6Wheel Cup M6
-
73503191910 WasherWasher
-
74503191926 WasherWasher
-
77503191966 Lower AxleLower Axle
-
78503191982 Ball BearingBall Bearing
-
79503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
80503192491 WasherWasher
-
81503192494 WasherWasher
-
82503192496 WasherWasher
-
83503192531 RockerRocker
-
84503192555 Axle BarAxle Bar
-
85503192592 Labyrinth RingLabyrinth Ring
-
86503192606 Rear Shock AxleRear Shock Axle
-
88503192678 SpacerSpacer
-
89503192749 Guide BlockGuide Block
-
90503192750 Rubber StopperRubber Stopper
-
91503192767 BushingBushing
-
92503192771 Black Wheel CapBlack Wheel Cap
-
93503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
94503192918 LH Cam BlockLH Cam Block
-
95503192919 RH Cam BlockRH Cam Block
-
96503192921 O-RingO-Ring
-
97503192981 Lower ShaftLower Shaft
-
98503193005 Link RodLink Rod
-
99503193037 BushingBushing
-
103503193101 Rubber StopperRubber Stopper
-
104503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
105503193250 SpacerSpacer
-
106503193372 Screw M8 X 90Screw M8 X 90
-
107503193449 Black Slider Shoe 137''Black Slider Shoe 137''
-
108503193451 Black Wheel Ass'y 165 mmBlack Wheel Ass'y 165 mm
-
112503193617 Rear Arm Ass'yRear Arm Ass'y
-
113503193724 LH ProtectorLH Protector
-
114503193725 RH ProtectorRH Protector
-
115503193894 Casted SupportCasted Support
-
116503193971 Front Arm Ass'yFront Arm Ass'y
-
117503194037 Runner 137''. Package-LERunner 137''. Package-LE
-
118503194050 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
119505072663 Leg CushionLeg Cushion
-
121516004755 Runner DecalRunner Decal
-
122516004900 LH Block Sticker DecalLH Block Sticker Decal
-
123516004901 RH Block Sticker DecalRH Block Sticker Decal
-
124517225900 Flat WasherFlat Washer
-
127572084800 Reinforcement StopperReinforcement Stopper
-
130234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
131503192583 TensionerTensioner
-
132207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
133503192360 Stopper StrapStopper Strap
-
134503193435 Pivot AxlePivot Axle
-
135233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
136390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
137503193539 Black LH Spring, Square. Package-LEBlack LH Spring, Square. Package-LE
-
137503193538 Black RH Spring, Square. Package-LEBlack RH Spring, Square. Package-LE
-
138503193069 Link Ass'yLink Ass'y
-
139503193444 Central ShockCentral Shock
-
140503193067 Black Spring (189mm Long)Black Spring (189mm Long)
-
141706200881 Spring StopperSpring Stopper
-
142505073625 Adjustement CamAdjustement Cam
-
143503193663 ProtectorProtector
-
144503191872 Spring GuideSpring Guide
-
145503193837 Black Spring (Short)Black Spring (Short)
-
146503191281 Spring SpacerSpring Spacer
-
147503193646 Rear Shock HPG Ass'yRear Shock HPG Ass'y
