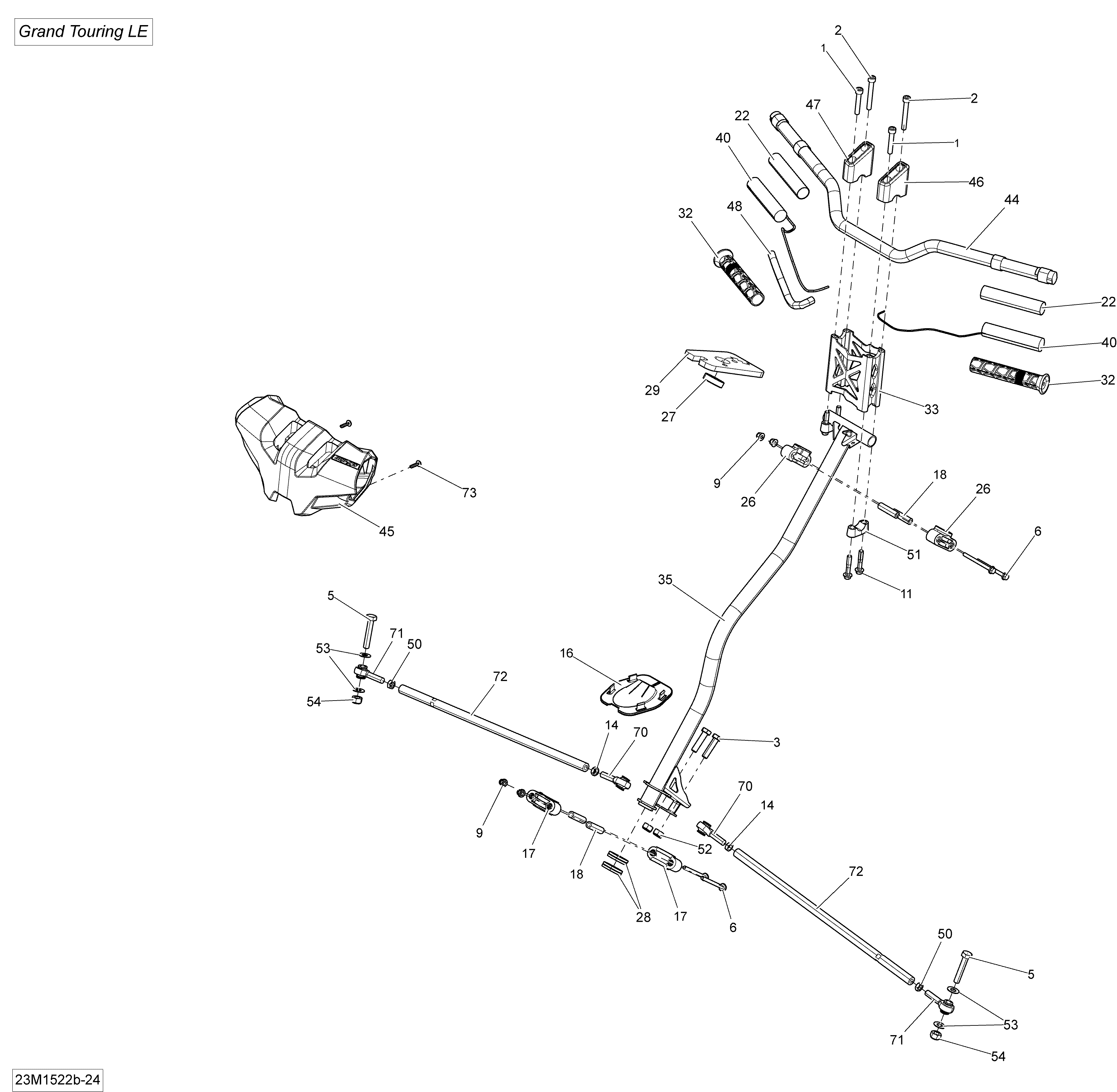

07- Steering _23M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
1205084560 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
2205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
5207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
6207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
14250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
16506152163 PlatePlate
-
17506152217 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
22506152423 InsulantInsulant
-
26506152508 Upper Half-HousingUpper Half-Housing
-
27506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
28506152518 Lower Vibration RingLower Vibration Ring
-
29506152521 CushionCushion
-
32506152501 GripGrip
-
33506152759 Handlebar Extension 115Handlebar Extension 115
-
35506152584 Black Main TubeBlack Main Tube
-
40506152681 Heated FilmHeated Film
-
44506152861 Black Handle BarBlack Handle Bar
-
45506152721 Steering PadSteering Pad
-
46506152729 LH Handlebar SupportLH Handlebar Support
-
47506152730 RH Handlebar SupportRH Handlebar Support
-
48515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
50732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
51506152751 Steering SupportSteering Support
-
52233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
53506152582 WasherWasher
-
54233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
70506152081 LH Thread Ball JointLH Thread Ball Joint
-
71506152019 RH Thread Ball JointRH Thread Ball Joint
-
72506152496 Tie-RodTie-Rod
-
73250000400 Torx Screw K50 X 20Torx Screw K50 X 20
