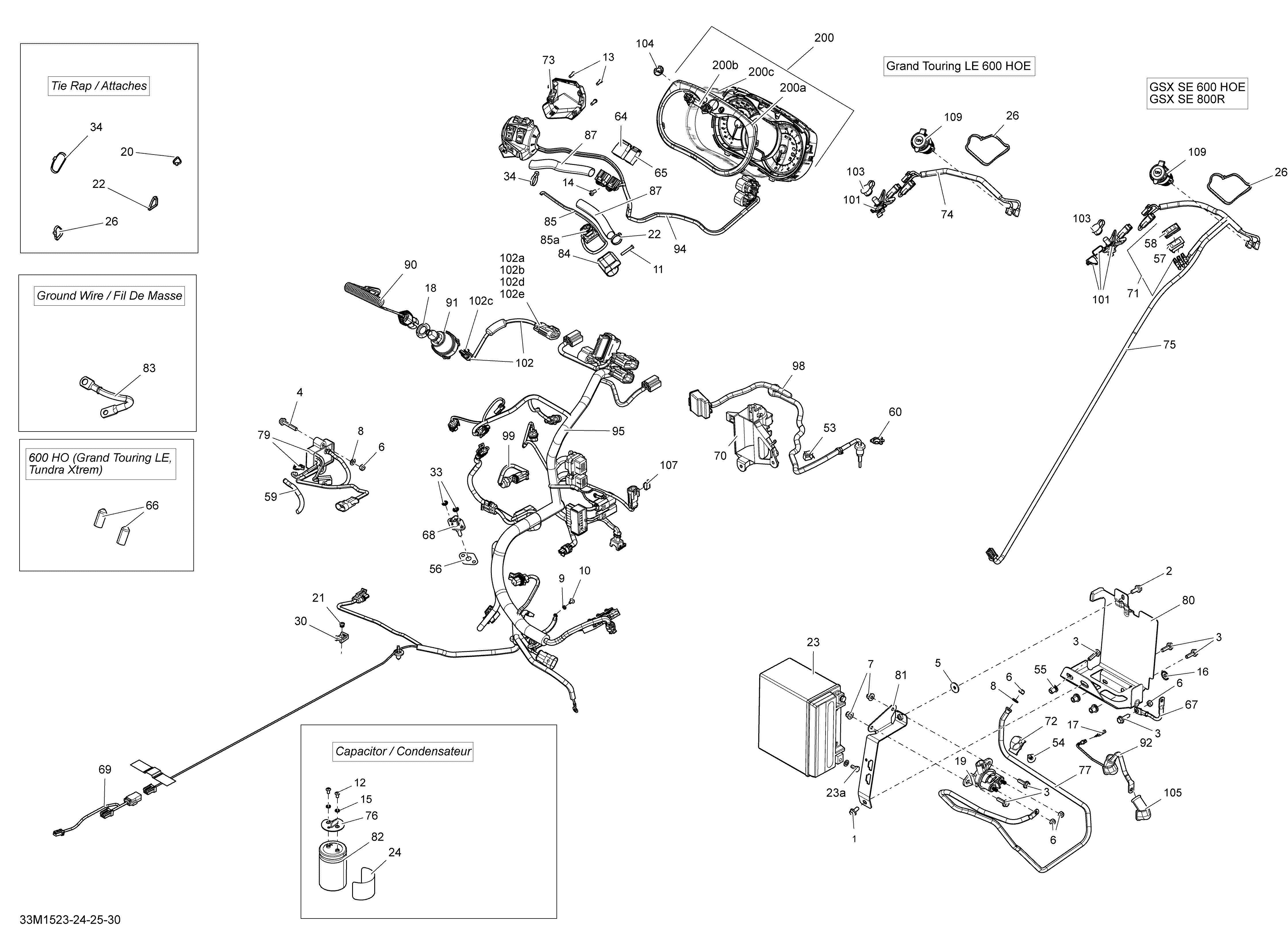

10- Electrical System _33M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
1207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5224061201 Flat WasherFlat Washer
-
6232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9234141601 Lock Washer 4 mmLock Washer 4 mm
-
10250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
11250000263 Torx Screw #8-18Torx Screw #8-18
-
12250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
13250000671 Torx ScrewTorx Screw
-
14250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
15250200026 Lock washerLock washer
-
16250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
17278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
18278002963 Safety NutSafety Nut
-
19278003012 Starter RelayStarter Relay
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
21390909200 Avex RivetAvex Rivet
-
22293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
23410301203 Lead Battery 18 Amperes. Includes 23 to 23aLead Battery 18 Amperes. Includes 23 to 23a
-
23a250000282 Battery Bolt KitBattery Bolt Kit
-
24516006206 Capacitor DecalCapacitor Decal
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30515176795 ClipClip
-
33389804300 Push NutPush Nut
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
54414644300 DartDart
-
55293450275 InsertInsert
-
56508000769 SealSeal
-
64515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
65515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
66515176141 CapCap
-
67515176358 Ground WireGround Wire
-
68515176366 Air Temperature SensorAir Temperature Sensor
-
69515176571 Junction HarnessJunction Harness
-
70515176607 Capacitor SupportCapacitor Support
-
72515177066 ClipClip
-
73515177147 Housing PlateHousing Plate
-
74515177188 Harness AccessoriesHarness Accessories
-
76515177193 CapCap
-
77515177208 Battery/Starter WireBattery/Starter Wire
-
80515177264 Battery SupportBattery Support
-
81515177266 Battery StripBattery Strip
-
82515177272 CapacitorCapacitor
-
83515177289 Ground WireGround Wire
-
84515177310 Kill Switch SupportKill Switch Support
-
85515177362 Kill Switch. Includes 85 to 85aKill Switch. Includes 85 to 85a
-
85a515175232 Male TerminalMale Terminal
-
87415129879 Protector TubeProtector Tube
-
90515177457 KeyKey
-
91515177458 SwitchSwitch
-
92515177576 Fuse Battery WireFuse Battery Wire
-
94515177677 HousingHousing
-
95515177746 Main HarnessMain Harness
-
99515177813 Temperature SensorTemperature Sensor
-
101515177837 Visor HarnessVisor Harness
-
102515177877 Wiring Harness. Includes 102 to 102eWiring Harness. Includes 102 to 102e
-
102a710001233 SealSeal
-
102b710001224 TerminalTerminal
-
102c710001161 HousingHousing
-
102d710001163 Wire SealWire Seal
-
102e710001164 Female TerminalFemale Terminal
-
103572103300 CapCap
-
104704904616 BRP Logo, 20mmBRP Logo, 20mm
-
105710000495 Protector CapProtector Cap
-
107710001038 ClipClip
-
109710001248 Outlet DCOutlet DC
-
200515177761 SpeedometerSpeedometer
-
200a415129355 Speedometer ButtonSpeedometer Button
-
200b415129348 Gauge RingGauge Ring
-
200c415129349 LensLens
