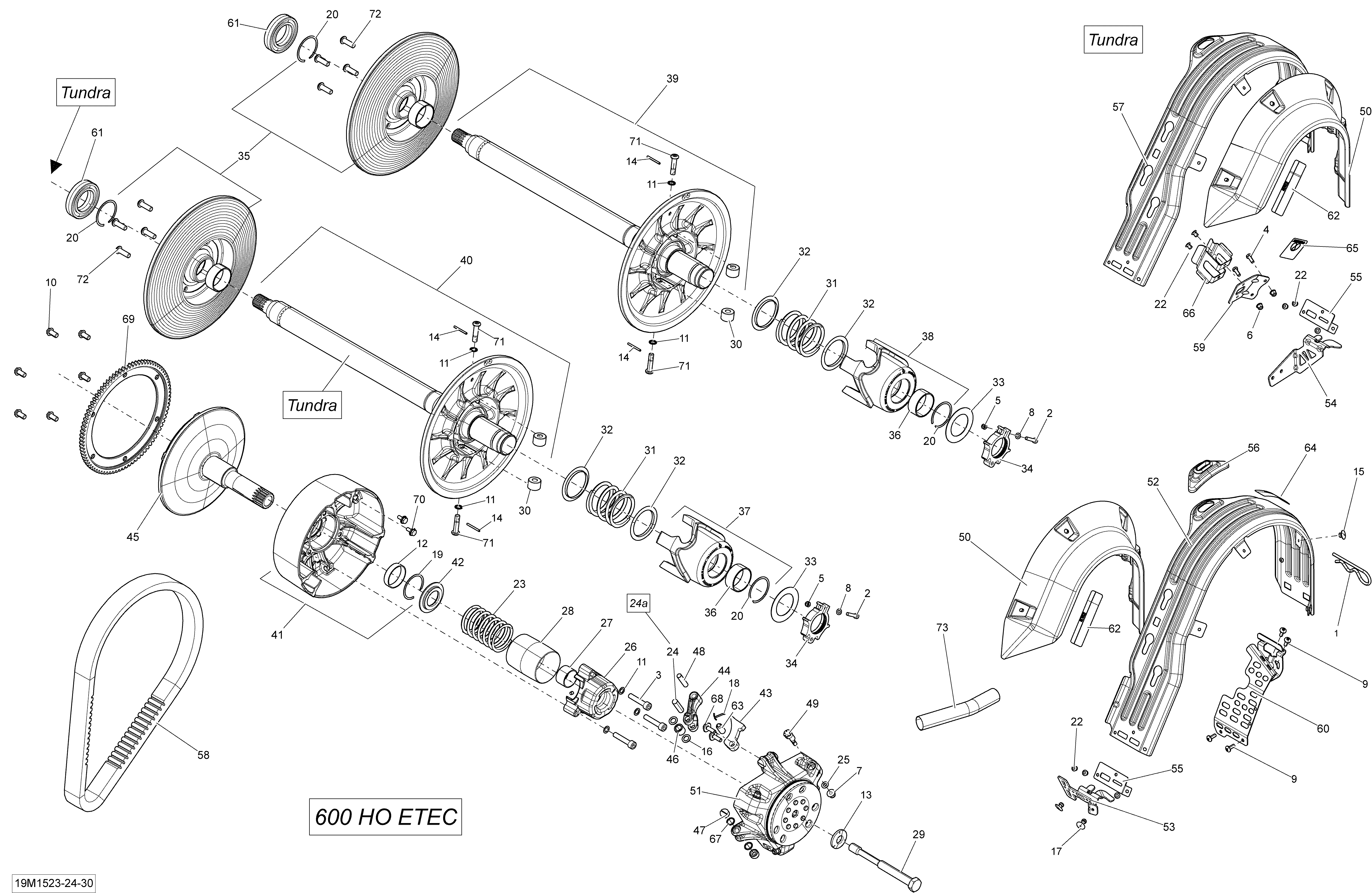

05- Pulley System _19M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
5232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8234051410 Flat Washer M5Flat Washer M5
-
9250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
10250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
11250200009 Lock Washer 8 mmLock Washer 8 mm
-
12417222758 BushingBushing
-
13250200144 Conical Spring Washer M14Conical Spring Washer M14
-
14250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
15293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
16417004302 Stopper WasherStopper Washer
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18250400060 Cotter PinCotter Pin
-
19293370037 CirclipCirclip
-
20293370049 CirclipCirclip
-
22390909200 Avex RivetAvex Rivet
-
23414689200 Spring ClutchSpring Clutch
-
24417004308 PinPin
-
25417005600 WasherWasher
-
26417007500 Spring Cover Ass'ySpring Cover Ass'y
-
27417009204 BushingBushing
-
28417009205 GuardGuard
-
29417120000 Drive Pulley BoltDrive Pulley Bolt
-
30417127016 RollerRoller
-
31417127137 SpringSpring
-
32417127116 Swivel AbutmentSwivel Abutment
-
33417127155 WasherWasher
-
34415129604 Calibration Ass'yCalibration Ass'y
-
35417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
36417127318 BushingBushing
-
38417127377 Cam Ass'yCam Ass'y
-
39417127387 Fix Flange Ass'yFix Flange Ass'y
-
41417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
42417222312 Spring SeatSpring Seat
-
43417222546 Ramp 414Ramp 414
-
44417222671 LeverLever
-
45417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
46417222947 RollerRoller
-
47417222992 Slider ShoeSlider Shoe
-
48417223164 Lever AxleLever Axle
-
49417223501 Calibration ScrewCalibration Screw
-
50417300356 Side ProtectorSide Protector
-
51417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
52417300357 Belt GuardBelt Guard
-
53417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
55417300380 ReinforcementReinforcement
-
56417300381 GuideGuide
-
58417300383 Drive BeltDrive Belt
-
60417300448 Belt Guard BracketBelt Guard Bracket
-
61504152574 Ball BearingBall Bearing
-
62516005503 Decal, EnglishDecal, English
-
63250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
64516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
67732401030 O-RingO-Ring
-
68250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
69417223738 Ring GearRing Gear
-
70250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
71417127294 Pivot StudPivot Stud
-
72250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
73219702532 Protector Tube 25 mm - 210 mmProtector Tube 25 mm - 210 mm
