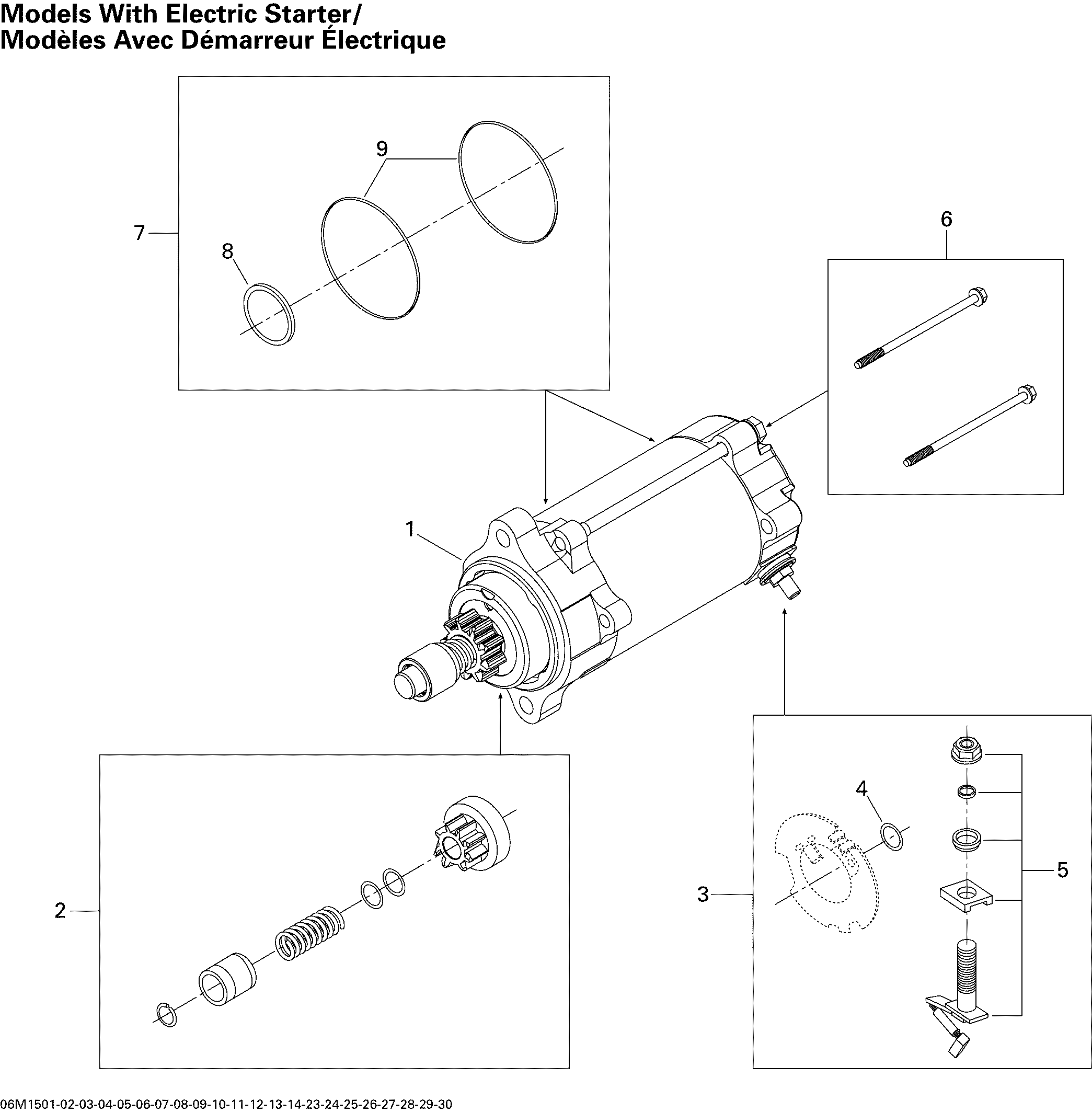

04- Electric Starter _06M1524 для BRP Ski-Doo Grand Touring LE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
1515177389 Starter. Includes 1 to 9Starter. Includes 1 to 9
-
2415129441 Clutch KitClutch Kit
-
3415129333 Brush Kit. Includes 3 to 5Brush Kit. Includes 3 to 5
-
4410204500 Flat WasherFlat Washer
-
5410212100 Brush KitBrush Kit
-
6415129341 Starter BoltStarter Bolt
-
7415129342 O-Ring Kit. Includes 7 to 9O-Ring Kit. Includes 7 to 9
-
9278000695 O-RingO-Ring
