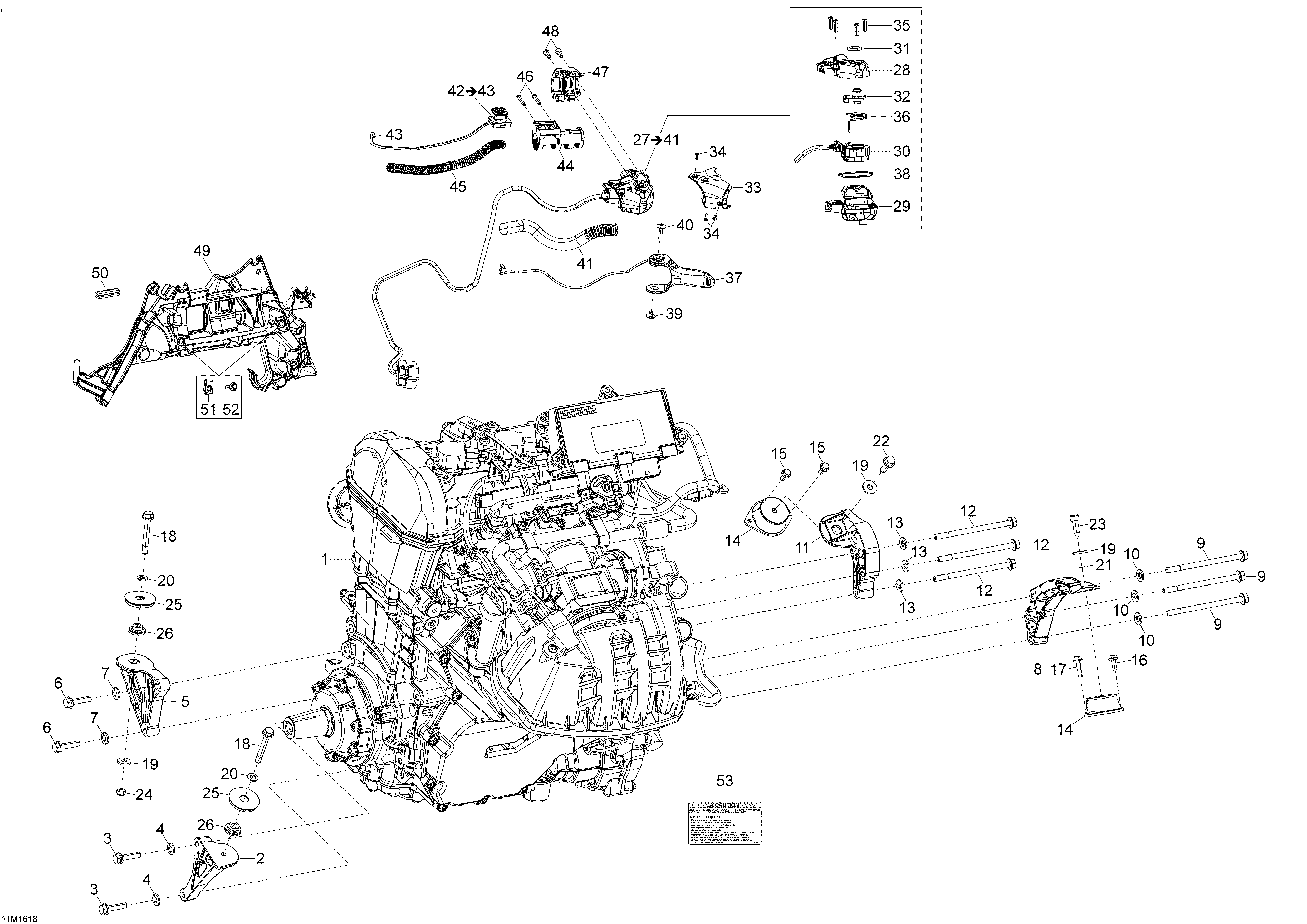

01- Engine And Engine Support - 900 ACE для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
2512060660 Rear Support (PTO)Rear Support (PTO)
-
3207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5512060661 Front Support (PTO)Front Support (PTO)
-
6207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8512060894 Rear Support (MAG)Rear Support (MAG)
-
9207584544 Hex. Flange Screw M8 x 45, Scotch GripHex. Flange Screw M8 x 45, Scotch Grip
-
10250200157 Conical Spring Washer M8Conical Spring Washer M8
-
11512060663 Front Support (MAG)Front Support (MAG)
-
12207584544 Hex. Flange Screw M8 x 45, Scotch GripHex. Flange Screw M8 x 45, Scotch Grip
-
13250200157 Conical Spring Washer M8Conical Spring Washer M8
-
14512060729 Rubber MountRubber Mount
-
15207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
16207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
17207562534 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
18207586044 Hex. Flange Screw M8 x 60, Scotch GripHex. Flange Screw M8 x 60, Scotch Grip
-
19503183200 WasherWasher
-
20250200008 Flat Washer M8Flat Washer M8
-
21293300123 O RingO Ring
-
22250000257 Cone Screw M8 x 30Cone Screw M8 x 30
-
23250000639 Cone Screw M8 x 25Cone Screw M8 x 25
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25512060826 StopperStopper
-
26512060285 SpacerSpacer
-
27512061113 Housing Ass'y. Includes 27 To 41Housing Ass'y. Includes 27 To 41
-
33512060862 CapCap
-
34250000623 Torx Screw 2.9 x 9.5Torx Screw 2.9 x 9.5
-
35250000671 Torx ScrewTorx Screw
-
37415130047 Handle Assembly kitHandle Assembly kit
-
40250000528 Torx Screw M5 x 20Torx Screw M5 x 20
-
41515177716 Protector TubeProtector Tube
-
42515177362 Kill Switch. Includes 42 To 43Kill Switch. Includes 42 To 43
-
43515175232 Male TerminalMale Terminal
-
44512060844 SupportSupport
-
45515177946 Protector TubeProtector Tube
-
46250000263 Torx Screw #8-18Torx Screw #8-18
-
47512060987 Front HousingFront Housing
-
48250000632 Torx Screw M5 x 14Torx Screw M5 x 14
-
49512060994 ECU SupportECU Support
-
50271001530 Protect TrimProtect Trim
-
51250000079 Panel Nut M5Panel Nut M5
-
52207552044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
53516005521 Check Oil DecalCheck Oil Decal
