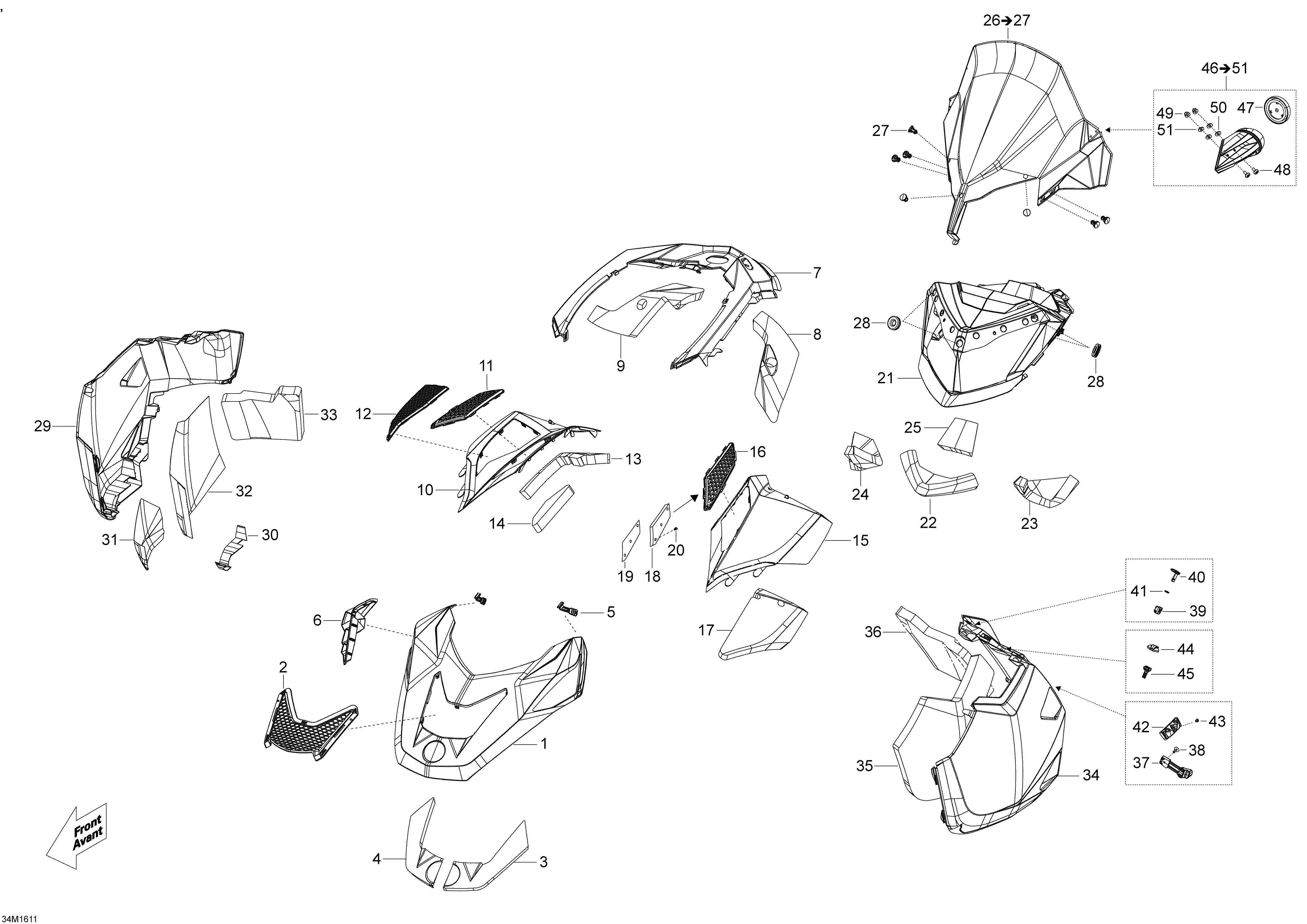

09- Hood для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1517304812 Black Hood. Model-LEBlack Hood. Model-LE
-
1517305596 Gray Hood. Model-SEGray Hood. Model-SE
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 LatchLatch
-
6517304155 Scoop GrillScoop Grill
-
7517305611 Black Console. Model-LEBlack Console. Model-LE
-
7517305612 Black Console. Model-SEBlack Console. Model-SE
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517304829 Black RH Side Access Panel. Model-LEBlack RH Side Access Panel. Model-LE
-
10517305598 Gray RH Side Access Panel. Model-SEGray RH Side Access Panel. Model-SE
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Access Panel GrillRH Lower Access Panel Grill
-
13517304311 InsulatorInsulator
-
14517305987 InsulatorInsulator
-
15517304839 Black LH Side Access Panel. Model-LEBlack LH Side Access Panel. Model-LE
-
15517305600 Gray LH Side Access Panel. Model-SEGray LH Side Access Panel. Model-SE
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517305311 Insulator. Model-1200 4-TECInsulator. Model-1200 4-TEC
-
19502007312 Grill Plate. Model-1200 4-TECGrill Plate. Model-1200 4-TEC
-
20414644300 Dart. Model-1200 4-TECDart. Model-1200 4-TEC
-
21517304272 Indicator SupportIndicator Support
-
22517304314 InsulatorInsulator
-
23517304315 InsulatorInsulator
-
24517304316 InsulatorInsulator
-
25517304319 InsulatorInsulator
-
26860201000 Windshield (580) Ass'y. Includes 26 To 27Windshield (580) Ass'y. Includes 26 To 27
-
27517304744 KnobKnob
-
28517303756 GrommetGrommet
-
29517304866 Black RH Side PanelBlack RH Side Panel
-
30517304215 Aluminum FoilAluminum Foil
-
31517304216 Aluminum FoilAluminum Foil
-
32517304512 Aluminum FoilAluminum Foil
-
33517304310 RH Foam RearRH Foam Rear
-
34517304869 Black LH Side PanelBlack LH Side Panel
-
35517303891 LH FoamLH Foam
-
36517304309 LH Foam RearLH Foam Rear
-
37517304572 Latch-PanelLatch-Panel
-
38293150108 Pop Rivet 3/16Pop Rivet 3/16
-
39517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
40517304296 Quarter-Turn HandleQuarter-Turn Handle
-
41517304538 Locking PlateLocking Plate
-
42517304497 Side Panel SupportSide Panel Support
-
43293150211 RivetRivet
-
44860200239 End PieceEnd Piece
-
45517306057 Latch-PanelLatch-Panel
-
46517305787 RH/LH Mirror Ass'y. Includes 46 To 51RH/LH Mirror Ass'y. Includes 46 To 51
-
48250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
49232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
50250200024 Rubber Washer M5Rubber Washer M5
-
5120117 WasherWasher
