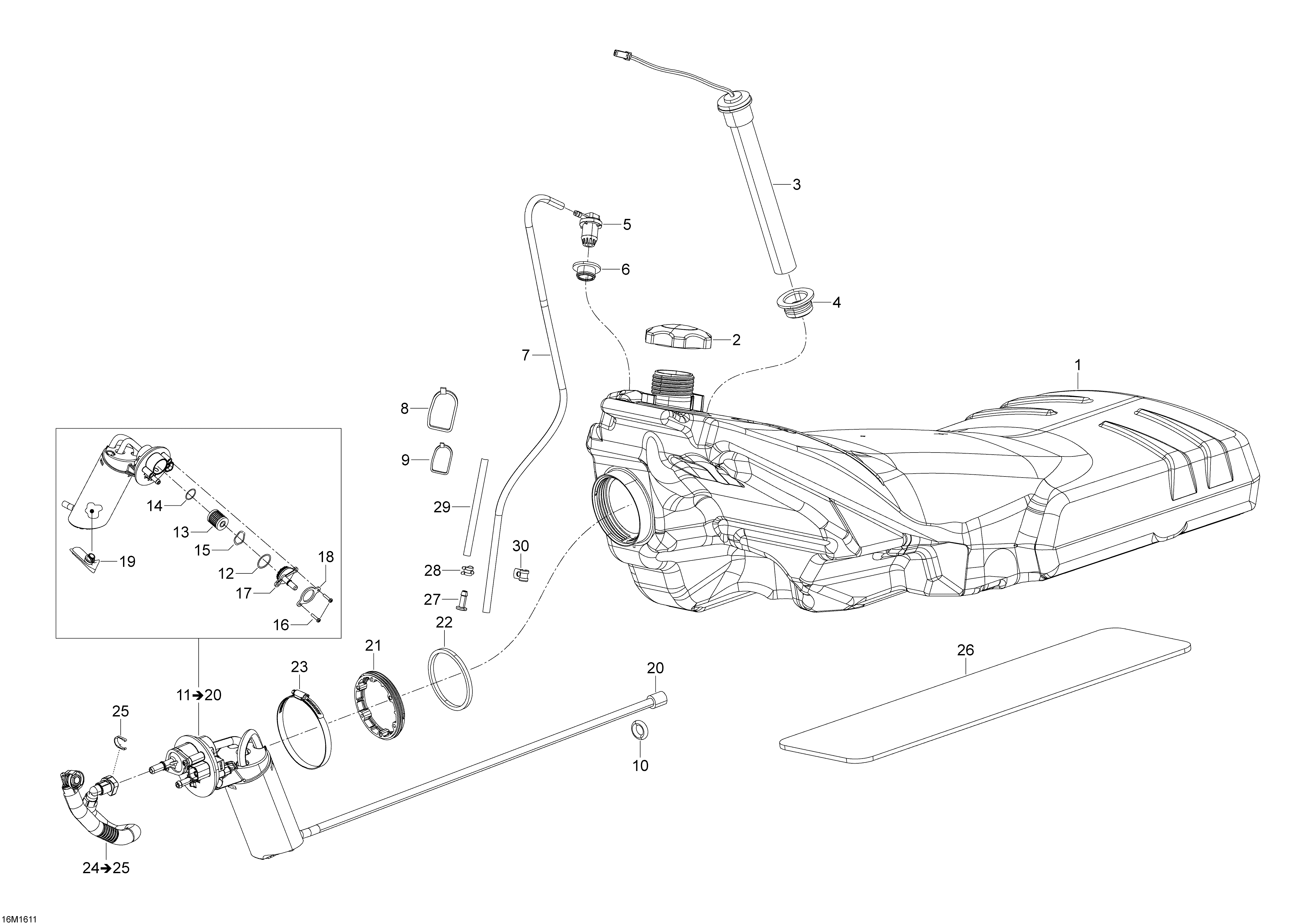

02- Fuel System для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1513033757 Fuel TankFuel Tank
-
2513033723 Cap. Model-EuropeCap. Model-Europe
-
2513033720 Cap. Model-North AmericaCap. Model-North America
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose (780mm)Hose (780mm)
-
8414115200 Tie-Rap 180mmTie-Rap 180mm
-
9293750002 Tie-Rap 142mmTie-Rap 142mm
-
10293300184 O RingO Ring
-
11513033694 Fuel Pump Ass'y. Includes 11 To 20Fuel Pump Ass'y. Includes 11 To 20
-
12415129509 O-RingO-Ring
-
13415129510 Fuel FilterFuel Filter
-
14415129511 O-RingO-Ring
-
15415129512 Wave WasherWave Washer
-
16415129513 ScrewScrew
-
17415129685 CoverCover
-
18415129569 Fuel Pump RingFuel Pump Ring
-
19415129451 Fuel Filter (In Tank, Fuel Pump)Fuel Filter (In Tank, Fuel Pump)
-
20414872100 Fuel Filter (In Tank, Fuel Line)Fuel Filter (In Tank, Fuel Line)
-
21513033180 RingRing
-
22513033334 GasketGasket
-
23513033628 ClampClamp
-
24513033582 Hose Ass'y. Includes 24 To 25, Model-900 ACEHose Ass'y. Includes 24 To 25, Model-900 ACE
-
24513033583 Hose Ass'y. Includes 24 To 25, Model-1200 4-TECHose Ass'y. Includes 24 To 25, Model-1200 4-TEC
-
25513033135 Locking ClipLocking Clip
-
26513033788 Insulate FoamInsulate Foam
-
27513033821 Hose ConnectorHose Connector
-
28414554800 Spring ClampSpring Clamp
-
29504153468 Protector TubeProtector Tube
-
30293850125 Open Clamp. Model-1200 4-TECOpen Clamp. Model-1200 4-TEC
