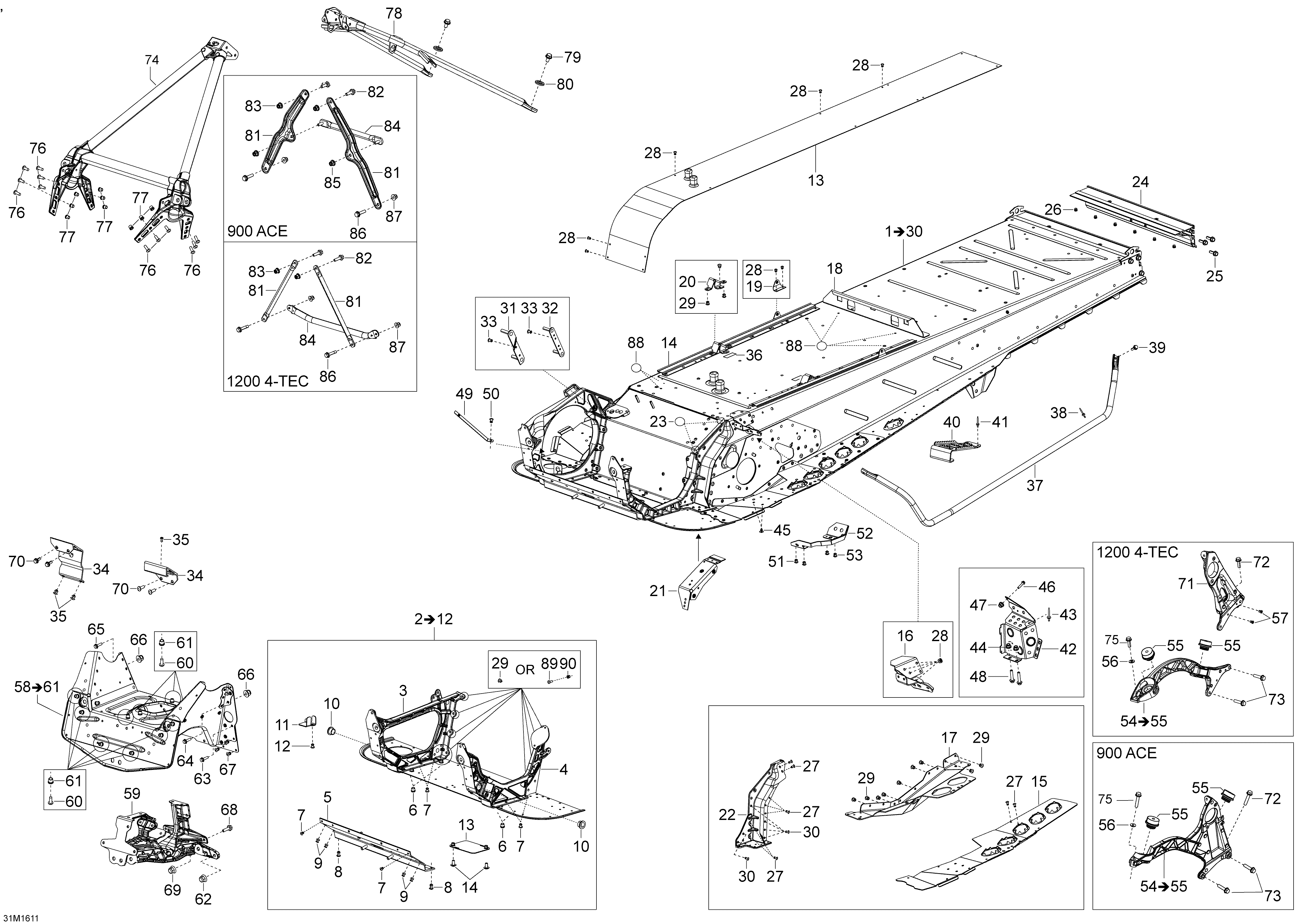

09- Frame для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1518328840 Black Frame. Includes 1 To 30, Model-900 ACEBlack Frame. Includes 1 To 30, Model-900 ACE
-
1518328841 Black Frame. Includes 1 To 30, Model-1200 4-TECBlack Frame. Includes 1 To 30, Model-1200 4-TEC
-
2518328815 Module E. Includes 2 To 12, Model-900 ACEModule E. Includes 2 To 12, Model-900 ACE
-
2518328187 Module E. Includes 2 To 12, Model-1200 4-TECModule E. Includes 2 To 12, Model-1200 4-TEC
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 BushingBushing
-
11518327983 Muffler Support. Model-900 ACEMuffler Support. Model-900 ACE
-
11518327448 Muffler Support. Model-1200 4-TECMuffler Support. Model-1200 4-TEC
-
12293150163 RivetRivet
-
13509000976 Tunnel RadiatorTunnel Radiator
-
14518326107 Fastening RailFastening Rail
-
15518328821 LH FootrestLH Footrest
-
15518328822 RH FootrestRH Footrest
-
16605355235 Fastening BracketFastening Bracket
-
17518328016 LH Drive Axle CoverLH Drive Axle Cover
-
17518328017 RH Drive Axle CoverRH Drive Axle Cover
-
18518325986 Battery SupportBattery Support
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 LH Support Tube BracketLH Support Tube Bracket
-
20518326110 RH Support Tube BracketRH Support Tube Bracket
-
21518326430 Clinch Nut PlateClinch Nut Plate
-
22518325524 LH Frame CornerLH Frame Corner
-
22518328024 RH Frame CornerRH Frame Corner
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328748 Rear ProfileRear Profile
-
25207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
26293150174 RivetRivet
-
27390909100 RivetRivet
-
28390909200 RivetRivet
-
29293150119 RivetRivet
-
30293150183 RivetRivet
-
31518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
32518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
33390402200 Pop Rivet 3/16Pop Rivet 3/16
-
34518326178 MAG Engine Support. Model-900 ACEMAG Engine Support. Model-900 ACE
-
34518325371 MAG Engine Support. Model-1200 4-TECMAG Engine Support. Model-1200 4-TEC
-
35293150174 Rivet. Model-900 ACERivet. Model-900 ACE
-
35293150174 Rivet. Model-1200 4-TECRivet. Model-1200 4-TEC
-
36518326963 LH Footboard Support TubeLH Footboard Support Tube
-
36518326964 RH Footboard Support TubeRH Footboard Support Tube
-
37390909100 RivetRivet
-
38207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39520001208 Black FootrestBlack Footrest
-
40293150102 Pop Rivet 3/16Pop Rivet 3/16
-
41518327374 Black LH Toe Hook. Model-LE 900 ACEBlack LH Toe Hook. Model-LE 900 ACE
-
41518327375 Black LH Toe Hook. Model-SE 900 ACEBlack LH Toe Hook. Model-SE 900 ACE
-
41518328969 Black LH Toe Hook. Model-1200 4-TECBlack LH Toe Hook. Model-1200 4-TEC
-
41518327376 Black RH Toe HookBlack RH Toe Hook
-
42390909200 RivetRivet
-
43605636003 Clinch Nut M6Clinch Nut M6
-
44414644300 Dart. Model-LEDart. Model-LE
-
44605636003 Clinch Nut M6. Model-SEClinch Nut M6. Model-SE
-
45207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
47250000717 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
48514054846 Spring BracketSpring Bracket
-
49390909200 RivetRivet
-
50390909200 RivetRivet
-
51518326566 Pulley Cover Plate. Model-North AmericaPulley Cover Plate. Model-North America
-
52293150104 Pop Rivet 3/16. Model-North AmericaPop Rivet 3/16. Model-North America
-
53518327535 LH Brace Ass'y. Includes 53 To 54, Model-900 ACELH Brace Ass'y. Includes 53 To 54, Model-900 ACE
-
53518327392 LH Brace Ass'y. Includes 53 To 54, Model-1200 4-TECLH Brace Ass'y. Includes 53 To 54, Model-1200 4-TEC
-
54512060295 Rubber MountRubber Mount
-
55234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5636087 Rivet. Model-1200 4-TECRivet. Model-1200 4-TEC
-
58518328395 Cross Member. Includes 57 To 60Cross Member. Includes 57 To 60
-
59518327487 Support de Suspension AvantSupport de Suspension Avant
-
60207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
61233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
62210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
63207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
64207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
65233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
66293150163 RivetRivet
-
67207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
68233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
69207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
70518328434 Pulley Support. Model-1200 4-TECPulley Support. Model-1200 4-TEC
-
71207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
72207583586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
73207584044 Hex. Flange Screw M8 x 40. Model-900 ACEHex. Flange Screw M8 x 40. Model-900 ACE
-
73207582586 Hex. Flange Screw M8 x 25. Model-1200 4-TECHex. Flange Screw M8 x 25. Model-1200 4-TEC
-
74518326975 Front Member Ass'y. Model-900 ACEFront Member Ass'y. Model-900 ACE
-
74518326970 Front Member Ass'y. Model-1200 4-TECFront Member Ass'y. Model-1200 4-TEC
-
75207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
76233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
77518326103 Upper Support TubeUpper Support Tube
-
78207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
80518326848 Upper Column Support. Model-900 ACEUpper Column Support. Model-900 ACE
-
80518325114 Upper Column Support. Model-1200 4-TECUpper Column Support. Model-1200 4-TEC
-
81207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
82233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
83518326355 Center Column Support. Model-900 ACECenter Column Support. Model-900 ACE
-
83518326657 Center Column Support. Model-1200 4-TECCenter Column Support. Model-1200 4-TEC
-
84233261414 Elastic Flange Nut M6. Model-900 ACEElastic Flange Nut M6. Model-900 ACE
-
85207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
86233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
87518325560 Adhesive PatchAdhesive Patch
-
88207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
89233261414 Elastic Flange Nut M6Elastic Flange Nut M6
