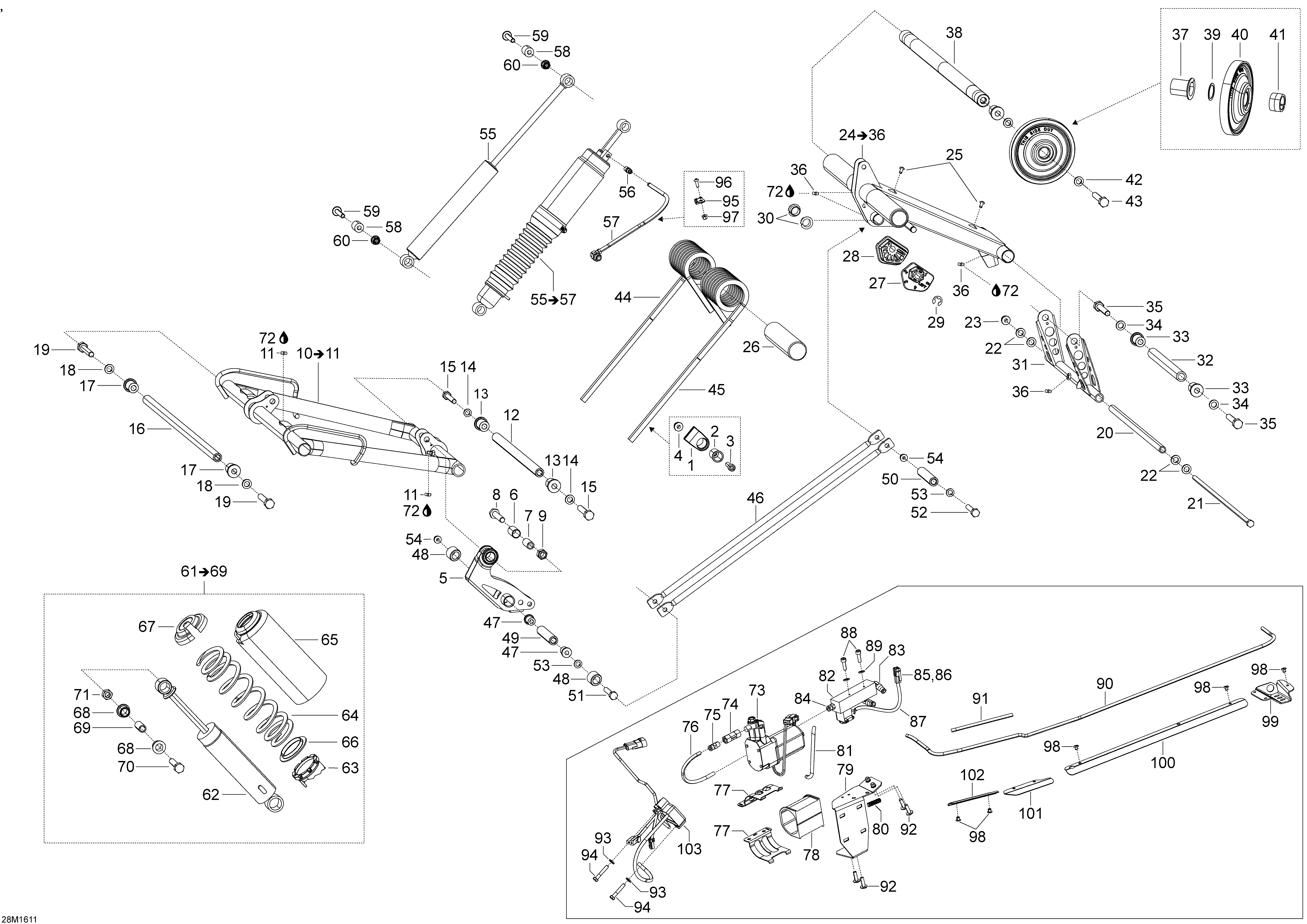

08- Rear Suspension B для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Cushion RetainCushion Retain
-
3205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
4233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
5503192211 Rocker WeldRocker Weld
-
6503193037 CushionCushion
-
7503189282 BushingBushing
-
8207005044 Hex. Cap Screw M10 x 50Hex. Cap Screw M10 x 50
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503193274 Front Arm Ass'y. Includes 10 To 11Front Arm Ass'y. Includes 10 To 11
-
11408200700 Grease FittingGrease Fitting
-
12503191390 Lower ShaftLower Shaft
-
13503189324 BushingBushing
-
14503192496 WasherWasher
-
15250000605 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
16503191391 Upper ShaftUpper Shaft
-
17503189324 BushingBushing
-
18503189564 WasherWasher
-
19250000605 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
20503191396 Axle PivotAxle Pivot
-
21503191397 Bolt M8 x 369mmBolt M8 x 369mm
-
22503189157 WasherWasher
-
23233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
24503191709 Rear Arm Ass'y. Includes 24 To 36Rear Arm Ass'y. Includes 24 To 36
-
25414644300 DartDart
-
27503191565 LH Cam AdjusterLH Cam Adjuster
-
28503191566 RH Cam AdjusterRH Cam Adjuster
-
29293370013 CirclipCirclip
-
30503191555 Swivel BushingSwivel Bushing
-
31503191393 Arm PivotArm Pivot
-
32503192330 Lower ShaftLower Shaft
-
33503191640 CushionCushion
-
34503189148 WasherWasher
-
35205523554 Socket Head Screw M12 x 35Socket Head Screw M12 x 35
-
36408200700 Grease FittingGrease Fitting
-
37503191451 CushionCushion
-
38503191405 Upper ShaftUpper Shaft
-
39503190328 WasherWasher
-
40503191738 Wheel 155mmWheel 155mm
-
41503191099 Retaining RingRetaining Ring
-
42503192491 WasherWasher
-
43250000484 Socket Head Screw M12 x 35Socket Head Screw M12 x 35
-
44503192377 RH SpringRH Spring
-
45503192378 LH SpringLH Spring
-
46503191765 Link Rod. Model-LELink Rod. Model-LE
-
46503193026 Link Rod. Model-SELink Rod. Model-SE
-
47503191555 Swivel BushingSwivel Bushing
-
48503190114 Spacer. Model-SESpacer. Model-SE
-
49503190643 Axle Bar. Model-LEAxle Bar. Model-LE
-
49503190113 Axle Bar. Model-SEAxle Bar. Model-SE
-
50503190643 Axle BarAxle Bar
-
51207089044 Hex. Cap Screw M8 x 90. Model-LEHex. Cap Screw M8 x 90. Model-LE
-
51230083044 Hex. Cap Screw M8 x 130. Model-SEHex. Cap Screw M8 x 130. Model-SE
-
52207089044 Hex. Cap Screw M8 x 90Hex. Cap Screw M8 x 90
-
53503189157 WasherWasher
-
54233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
55503193520 Rear Shock. Model-LERear Shock. Model-LE
-
55503193000 Rear Shock. Includes 55 To 57, Model-SERear Shock. Includes 55 To 57, Model-SE
-
56503191939 Male ConnectorMale Connector
-
57503192649 Hose Ass?yHose Ass?y
-
58414936000 Cushion. Model-LE & SECushion. Model-LE & SE
-
59207684044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
60233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
62503192991 Shock. Model-EuropeShock. Model-Europe
-
62503192266 Shock. Model-North AmericaShock. Model-North America
-
63505073625 Adjuster CamAdjuster Cam
-
64503189686 SpringSpring
-
65503193663 ProtectorProtector
-
66503191872 Spring GuideSpring Guide
-
67503189912 Spring Stopper. Model-EuropeSpring Stopper. Model-Europe
-
67706200881 Spring Stopper. Model-North AmericaSpring Stopper. Model-North America
-
68503189117 Ureth. CushionUreth. Cushion
-
69503189282 BushingBushing
-
70207005044 Hex. Cap Screw M10 x 50Hex. Cap Screw M10 x 50
-
71233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
73706001349 Compressor. Model-SECompressor. Model-SE
-
74706000940 Check Valve. Model-SECheck Valve. Model-SE
-
75706000869 Connector. Model-SEConnector. Model-SE
-
76415129507 Hose. Model-SEHose. Model-SE
-
77503193103 Bracket. Model-SEBracket. Model-SE
-
78706000631 Isolator. Model-SEIsolator. Model-SE
-
79503193484 Support. Model-SESupport. Model-SE
-
80513033638 Protector Tube (30mm). Model-SEProtector Tube (30mm). Model-SE
-
81515175442 Protector Tube (150mm). Model-SEProtector Tube (150mm). Model-SE
-
82503193009 Air Manifold. Includes 82 To 87, Model-SEAir Manifold. Includes 82 To 87, Model-SE
-
83706000872 Connector 90°. Model-SEConnector 90°. Model-SE
-
84706000869 Connector. Model-SEConnector. Model-SE
-
85515175232 Male Terminal. Model-SEMale Terminal. Model-SE
-
86515175654 Housing, 2 Circuits. Model-SEHousing, 2 Circuits. Model-SE
-
87515175442 Protector Tube (90mm). Model-SEProtector Tube (90mm). Model-SE
-
88205562044 Socket HD Screw M6 x 20. Model-SESocket HD Screw M6 x 20. Model-SE
-
89234061410 Flat Washer. Model-SEFlat Washer. Model-SE
-
90503193034 Tube. Model-SETube. Model-SE
-
91515175442 Protector Tube (380mm). Model-SEProtector Tube (380mm). Model-SE
-
92250000722 Torx Truss Screw M6 x 20. Model-SETorx Truss Screw M6 x 20. Model-SE
-
93234061410 Flat Washer. Model-SEFlat Washer. Model-SE
-
94207063544 Hex. Cap Screw M6 x 35. Model-SEHex. Cap Screw M6 x 35. Model-SE
-
95503193393 Clamp. Model-SEClamp. Model-SE
-
96235551494 Torx Screw M5 x 14. Model-SETorx Screw M5 x 14. Model-SE
-
97233251434 Elastic Flange Nut M5. Model-SEElastic Flange Nut M5. Model-SE
-
98293150102 Pop Rivet 3/16. Model-SEPop Rivet 3/16. Model-SE
-
99503193004 Bracket. Model-SEBracket. Model-SE
-
100503193006 Hose Protector. Model-SEHose Protector. Model-SE
-
101503193007 Hose Protector. Model-SEHose Protector. Model-SE
-
102503193011 Hose Protector. Model-SEHose Protector. Model-SE
-
103515177125 Compressor Module. Model-SECompressor Module. Model-SE
