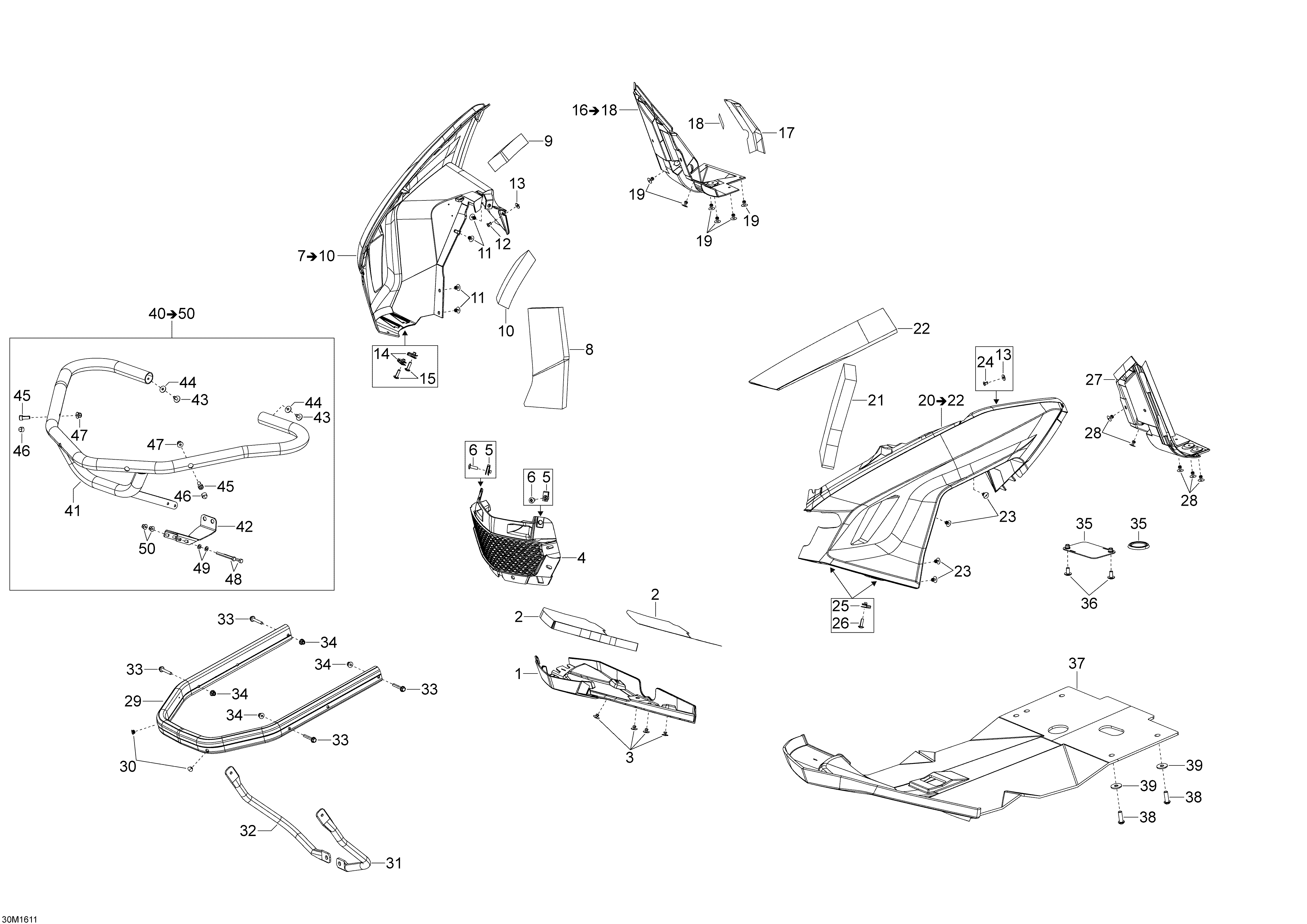

09- Bottom Pan для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1502007184 Black Front Bottom PanBlack Front Bottom Pan
-
2502007002 Insulator. Molde-1200 4-TECInsulator. Molde-1200 4-TEC
-
2508000840 Heat Shield. Model-900 ACEHeat Shield. Model-900 ACE
-
3293150103 Pop Rivet 3/16Pop Rivet 3/16
-
4502007145 Front GrillFront Grill
-
5250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
6250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
7502007188 Black RH Bottom Pan Ass?y. Includes 7 To 10, Model-LEBlack RH Bottom Pan Ass?y. Includes 7 To 10, Model-LE
-
7502007187 Black RH Bottom Pan Ass?y. Includes 7 To 10, Model-SEBlack RH Bottom Pan Ass?y. Includes 7 To 10, Model-SE
-
8502007006 InsulatorInsulator
-
9502007008 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11293150104 Pop Rivet 3/16Pop Rivet 3/16
-
12390402200 Pop Rivet 3/16Pop Rivet 3/16
-
13234052450 Flat WasherFlat Washer
-
14250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
15250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
16502007193 Black RH Rear Bottom Pan Ass?y. Includes 16 To 18Black RH Rear Bottom Pan Ass?y. Includes 16 To 18
-
17502007038 Aluminium FoilAluminium Foil
-
1844110 Al-TapeAl-Tape
-
19293150104 Pop Rivet 3/16Pop Rivet 3/16
-
20502007196 Black LH Bottom Pan Ass?y. Includes 20 To 22, Model-LEBlack LH Bottom Pan Ass?y. Includes 20 To 22, Model-LE
-
20502007198 Black LH Bottom Pan Ass?y. Includes 20 To 22, Model-SEBlack LH Bottom Pan Ass?y. Includes 20 To 22, Model-SE
-
21502007003 InsulatorInsulator
-
22502007185 InsulatorInsulator
-
23293150104 Pop Rivet 3/16Pop Rivet 3/16
-
24390402200 Pop Rivet 3/16Pop Rivet 3/16
-
25250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
26250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
27502007195 Black LH Rear Bottom PanBlack LH Rear Bottom Pan
-
28293150104 Pop Rivet 3/16Pop Rivet 3/16
-
29502007469 Clear Anod. Bumper. Model-LEClear Anod. Bumper. Model-LE
-
29502007470 Black Anod. Bumper. Model-SEBlack Anod. Bumper. Model-SE
-
30293730041 Dart. Model-LEDart. Model-LE
-
31502007014 LH Bumper Support TubeLH Bumper Support Tube
-
32502007015 RH Bumper Support TubeRH Bumper Support Tube
-
33207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
34233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
35518328317 Oil Plate. Model-900 ACEOil Plate. Model-900 ACE
-
35518329102 Oil Plate Cover. Model-1200 4-TECOil Plate Cover. Model-1200 4-TEC
-
36250000767 Torx Truss Screw M6 x 12. Model-900 ACETorx Truss Screw M6 x 12. Model-900 ACE
-
37860200563 Skid Plate Kit. Model-SESkid Plate Kit. Model-SE
-
38250000757 Torx Screw M8 x 25, Scotch Grip. Model-SETorx Screw M8 x 25, Scotch Grip. Model-SE
-
39234082410 Flat Washer. Model-SEFlat Washer. Model-SE
-
40860200537 Extra Bumper Kit. Includes 40 To 50, Model-SEExtra Bumper Kit. Includes 40 To 50, Model-SE
-
42502007022 Lower Fastening Plate. Model-SELower Fastening Plate. Model-SE
-
43250000717 Torx Truss Screw M6 x 16. Model-SETorx Truss Screw M6 x 16. Model-SE
-
4420117 Washer. Model-SEWasher. Model-SE
-
45205084044 Socket Screw M8 x 40. Model-SESocket Screw M8 x 40. Model-SE
-
4628056 Cover. Model-SECover. Model-SE
-
47233281414 Elastic Flange Nut M8. Model-SEElastic Flange Nut M8. Model-SE
-
48207066044 Hex. Cap Screw M6 x 60. Model-SEHex. Cap Screw M6 x 60. Model-SE
-
49234061410 Washer. Model-SEWasher. Model-SE
-
50233261414 Elastic Flange Nut M6. Model-SEElastic Flange Nut M6. Model-SE
