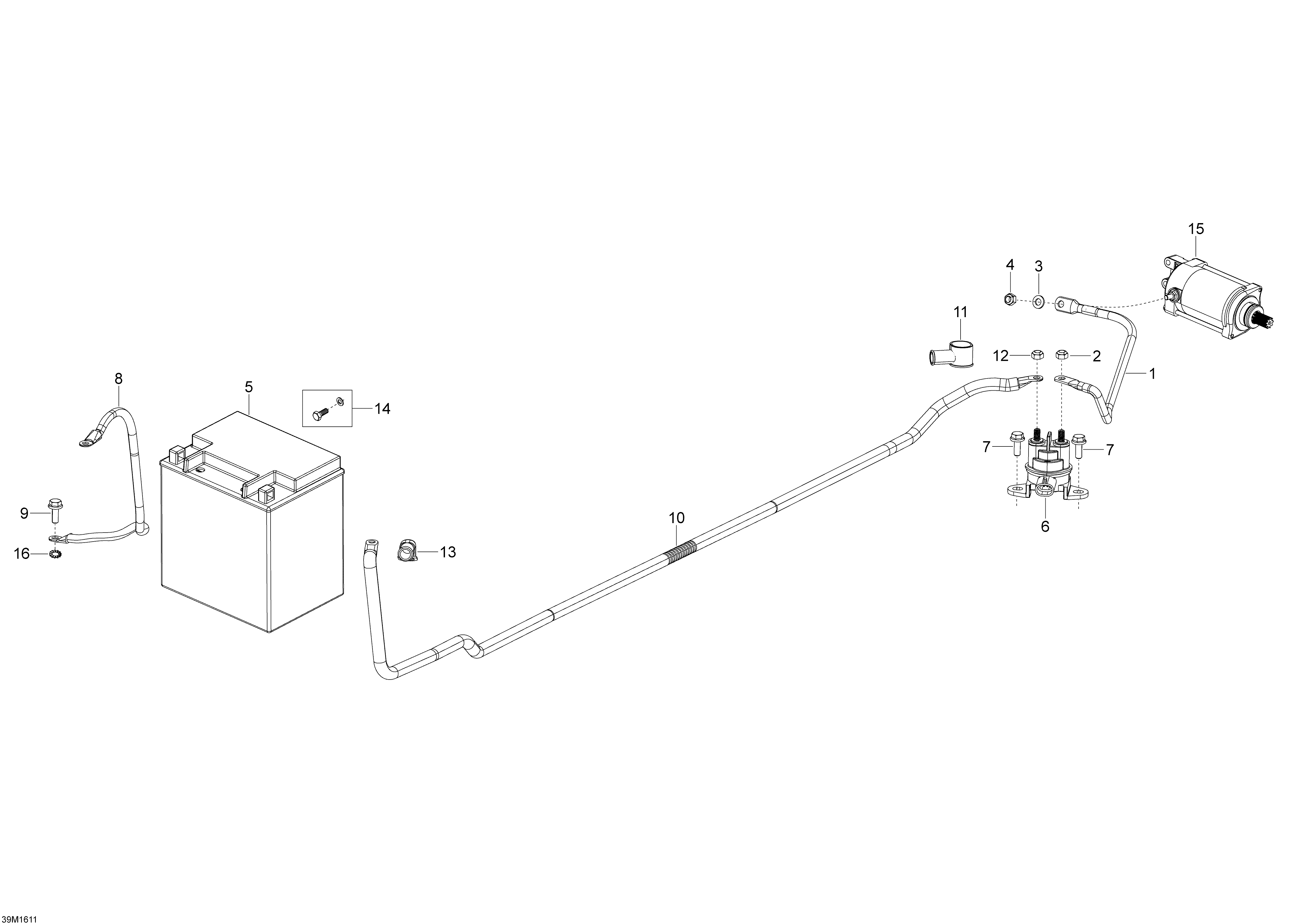

10- Battery And Electric Starter для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1515176945 Start Cable. Model-900 ACEStart Cable. Model-900 ACE
-
1515176779 Start Cable. Model-1200 4-TECStart Cable. Model-1200 4-TEC
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer M6Flat Washer M6
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5415129898 Battery (18Ah). Model-LEBattery (18Ah). Model-LE
-
5515176151 Battery (30Ah). Model-SEBattery (30Ah). Model-SE
-
6278003012 Starter SolenoidStarter Solenoid
-
7207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
8515176777 Ground CableGround Cable
-
9207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
10515176778 Battery CableBattery Cable
-
11570151000 Protection Cap. Model-900 ACEProtection Cap. Model-900 ACE
-
12232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
13710000495 Protector Cap. Model-900 ACEProtector Cap. Model-900 ACE
-
13710000495 Protector Cap. Model-1200 4-TECProtector Cap. Model-1200 4-TEC
-
14250000282 Battery Fastener KitBattery Fastener Kit
-
15420892429 Electric StarterElectric Starter
-
16250200041 Serrated Lock WasherSerrated Lock Washer
