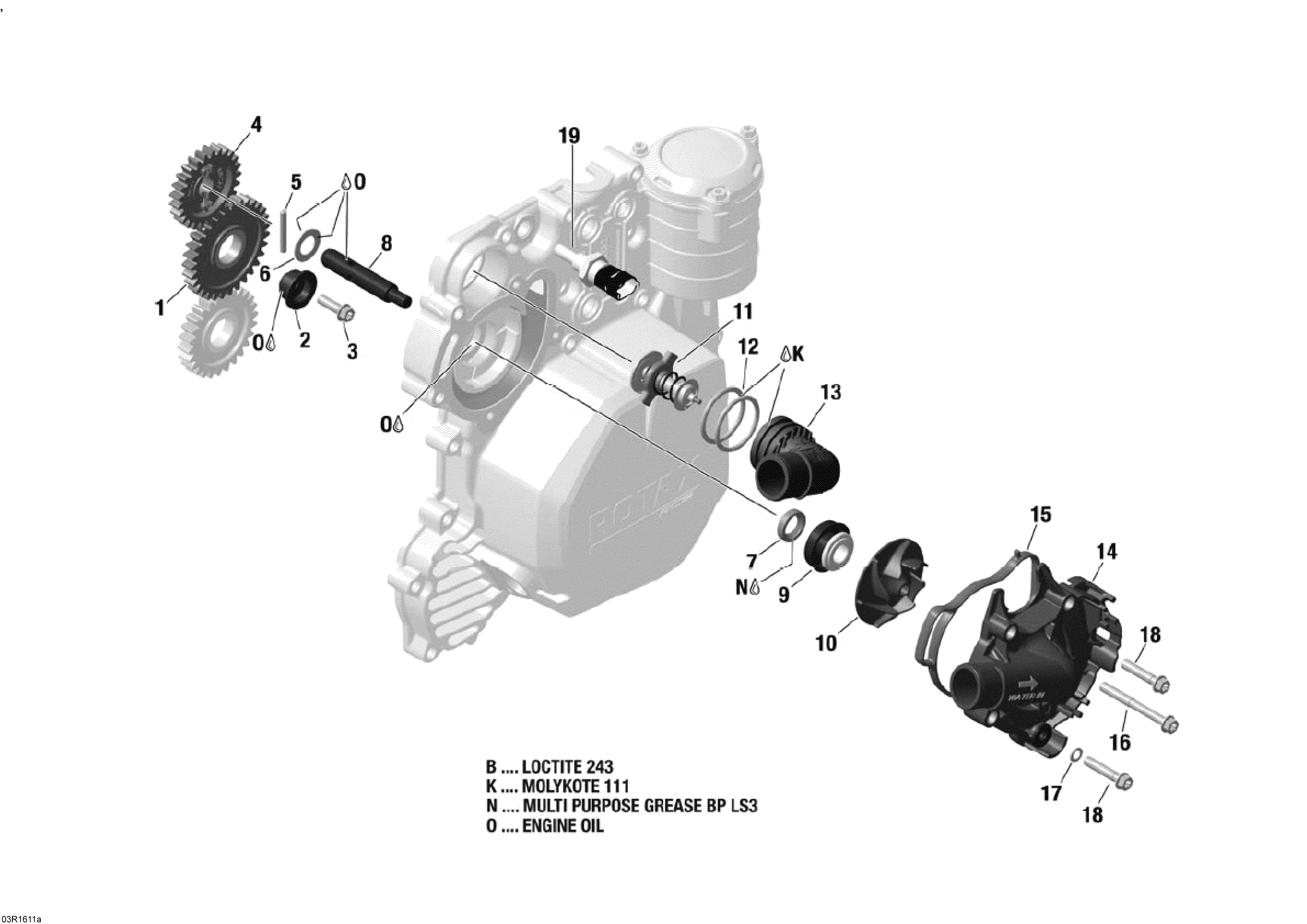

01- Engine Cooling - 900 ACE для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1420835059 Intermediate Gear (31 T)Intermediate Gear (31 T)
-
2420947394 Graduated SpacerGraduated Spacer
-
3420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%
-
4420835230 Waterpump Gear (25 T)Waterpump Gear (25 T)
-
5420232431 Needle PinNeedle Pin
-
6420827261 Thrust WasherThrust Washer
-
7420931802 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
8420820150 Waterpump ShaftWaterpump Shaft
-
9420850946 Rotary Seal. Included In Gasket KitRotary Seal. Included In Gasket Kit
-
10420222880 Impeller. Tightening Torque 9 Nm +/- 12%Impeller. Tightening Torque 9 Nm +/- 12%
-
11420822650 Thermostat (75 Deg.)Thermostat (75 Deg.)
-
12420950893 O Ring. Included In Gasket KitO Ring. Included In Gasket Kit
-
13420922150 Thermostat CoverThermostat Cover
-
14420922293 Water Pump Housing Ass'y. Includes 14 To 15Water Pump Housing Ass'y. Includes 14 To 15
-
15420431682 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
16420440702 Torx Flange Screw M6 x 55. Tightening Torque 9 Nm +/- 12%Torx Flange Screw M6 x 55. Tightening Torque 9 Nm +/- 12%
-
17420230415 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
18420440647 Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
-
19278002895 Temperature Sensor. Tightening Torque 16 Nm +/- 12%Temperature Sensor. Tightening Torque 16 Nm +/- 12%
