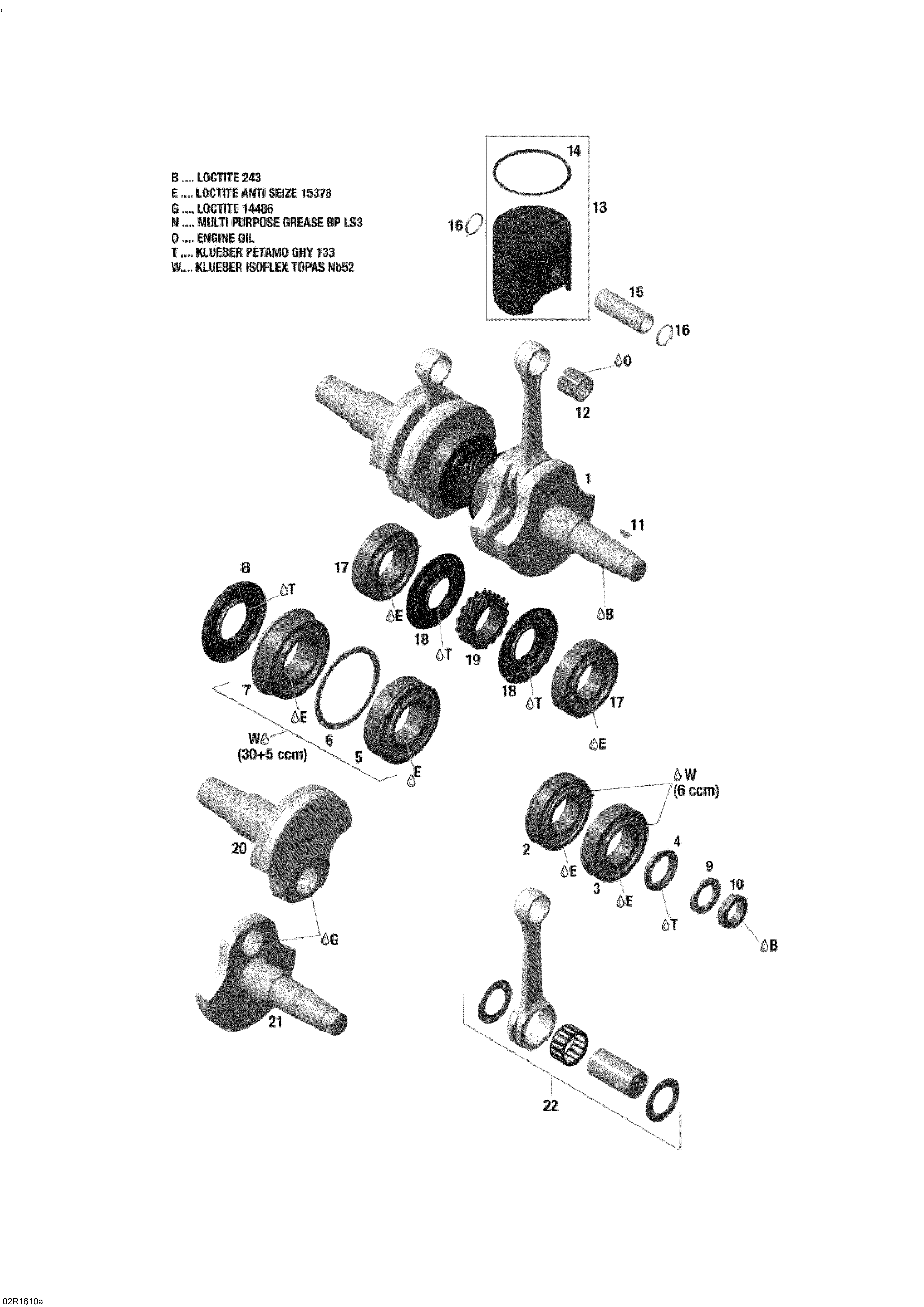

01- Crankshaft and Piston - 600 E-TEC для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
1420890953 Crankshaft Ass'y. Includes 1 To 8Crankshaft Ass'y. Includes 1 To 8
-
2420832175 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931795 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
5420832602 Ball BearingBall Bearing
-
6420926190 WasherWasher
-
7420832702 Ball BearingBall Bearing
-
8420931284 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
9420945759 Lock WasherLock Washer
-
10420842239 Hex. Nut M22. Tightening Torque 120-130 NmHex. Nut M22. Tightening Torque 120-130 Nm
-
11420246015 Woodruff KeyWoodruff Key
-
12420832445 Needle BearingNeedle Bearing
-
13420892388 Piston Ass'y With Rings. Includes 13 To 14Piston Ass'y With Rings. Includes 13 To 14
-
14420815295 Semi-Trapez RingSemi-Trapez Ring
-
15420916412 Piston PinPiston Pin
-
16420845106 Piston Circlip. Included In Gasket KitPiston Circlip. Included In Gasket Kit
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
22420890958 Rod Repair Kit (PTO Side)Rod Repair Kit (PTO Side)
-
22420890959 Rod Repair Kit (MAG Side)Rod Repair Kit (MAG Side)
