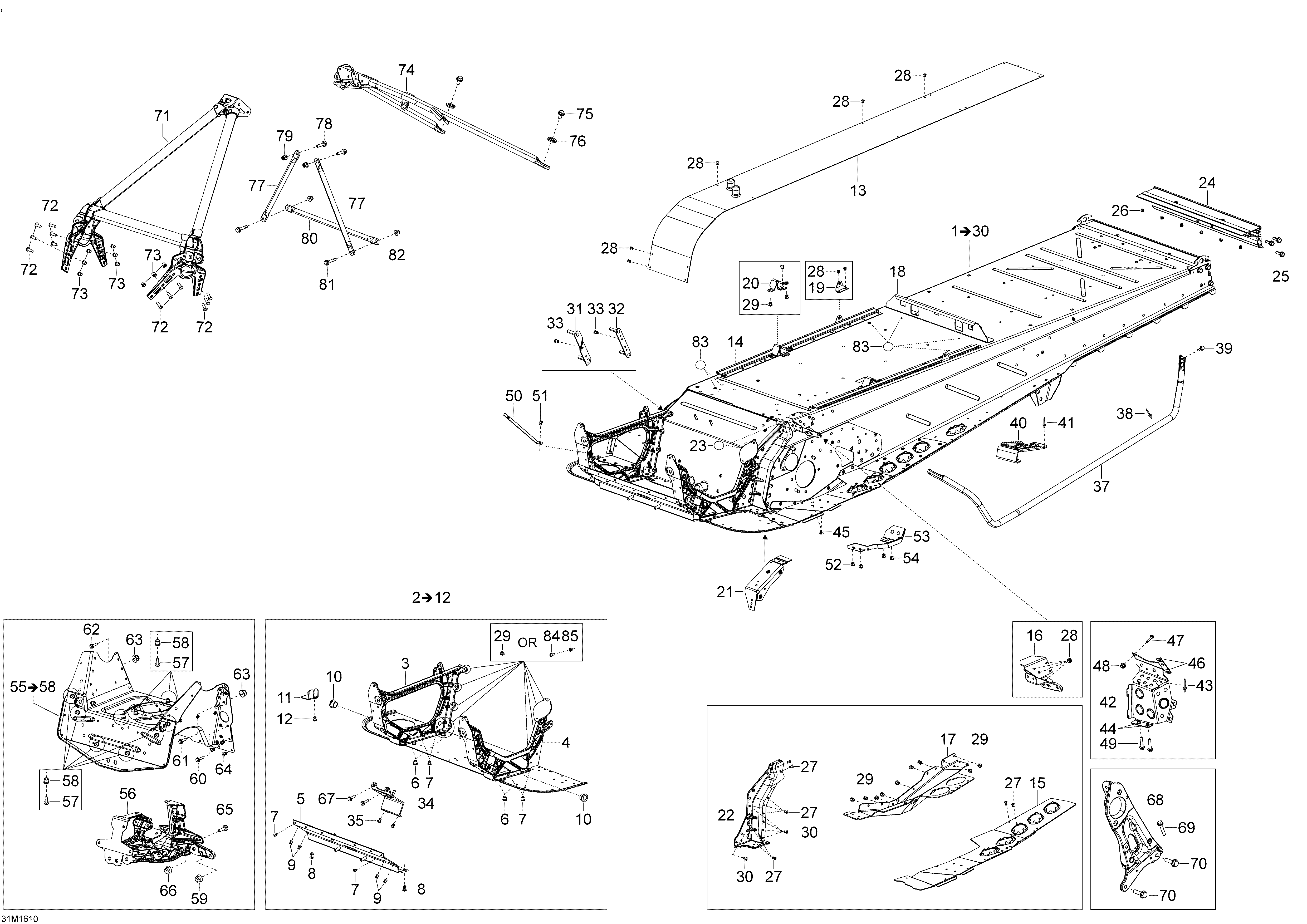

09- Frame для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
1518328839 Black Frame. Includes 1 To 30, Model-LE & SEBlack Frame. Includes 1 To 30, Model-LE & SE
-
1518328842 Black Frame. Includes 1 To 30, Model-ExtremeBlack Frame. Includes 1 To 30, Model-Extreme
-
2518328813 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut M8Clinch Nut M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 CushionCushion
-
11518328194 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000975 RadiatorRadiator
-
14518326107 Fastening RailFastening Rail
-
15518328821 LH Footrest. Model-LE & SELH Footrest. Model-LE & SE
-
15518328332 LH Footrest. Model-ExtremeLH Footrest. Model-Extreme
-
15518328822 RH Footrest. Model-LE & SERH Footrest. Model-LE & SE
-
15518328333 RH Footrest. Model-ExtremeRH Footrest. Model-Extreme
-
16605355235 Fastening BracketFastening Bracket
-
17518328016 LH Drive Axle CoverLH Drive Axle Cover
-
17518328017 RH Drive Axle CoverRH Drive Axle Cover
-
18518325986 Battery SupportBattery Support
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 LH Support Tube BracketLH Support Tube Bracket
-
20518326110 RH Support Tube BracketRH Support Tube Bracket
-
21518326430 Clinch Nut PlateClinch Nut Plate
-
22518325524 LH Frame CornerLH Frame Corner
-
22518328024 RH Frame CornerRH Frame Corner
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328748 Rear ProfileRear Profile
-
25207582586 Screw M8 x 25Screw M8 x 25
-
26293150174 RivetRivet
-
27390909100 RivetRivet
-
28390909200 RivetRivet
-
29293150119 RivetRivet
-
30293150183 RivetRivet
-
31518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
32518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
33390402200 Pop Rivet 3/16Pop Rivet 3/16
-
34518325943 MAG SupportMAG Support
-
35293150119 RivetRivet
-
37518326963 LH Footrest Support TubeLH Footrest Support Tube
-
37518326964 RH Footrest Support TubeRH Footrest Support Tube
-
38390909100 RivetRivet
-
39207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
40520001208 Black Footrest. Model-LE & SEBlack Footrest. Model-LE & SE
-
41293150102 Pop Rivet 3/16. Model-LE & SEPop Rivet 3/16. Model-LE & SE
-
42518327375 Black LH Toe Hook. Model-SEBlack LH Toe Hook. Model-SE
-
42518327374 Black LH Toe Hook. Model-LE & ExtremeBlack LH Toe Hook. Model-LE & Extreme
-
42518327376 Black RH Toe HookBlack RH Toe Hook
-
43390909200 RivetRivet
-
44605636003 Clinch Nut M6Clinch Nut M6
-
45414644300 Dart. Model-LEDart. Model-LE
-
46605636003 Clinch Nut M6Clinch Nut M6
-
47207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
48233261414 Nut M6Nut M6
-
49250000717 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
50514054846 Spring BracketSpring Bracket
-
51390909200 RivetRivet
-
52390909200 RivetRivet
-
53518326566 Pulley Cover Plate. Model-North AmericaPulley Cover Plate. Model-North America
-
54293150104 Pop Rivet 3/16. Model-North AmericaPop Rivet 3/16. Model-North America
-
55518328392 Cross Member. Includes 55 To 58, Model-LE & ExtremeCross Member. Includes 55 To 58, Model-LE & Extreme
-
55518328396 Cross Member. Includes 55 To 58, Model-SECross Member. Includes 55 To 58, Model-SE
-
56518327487 Support de Suspension AvantSupport de Suspension Avant
-
57207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
58233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
59233281414 Elastic Flange Nut M6Elastic Flange Nut M6
-
60210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
61207662544 Screw M6 x 25Screw M6 x 25
-
62207563034 Screw M6 x 30Screw M6 x 30
-
63233261414 Nut M6Nut M6
-
64293150163 RivetRivet
-
65207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
66233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
67207661644 Screw M6 x 16Screw M6 x 16
-
68518328434 Pulley SupportPulley Support
-
69207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
70207583086 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
71518326970 Front MemberFront Member
-
72207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
73233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
74518326103 Upper Support TubeUpper Support Tube
-
75207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
77518325114 Upper Column SupportUpper Column Support
-
78207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
80518325115 Center Column SupportCenter Column Support
-
81207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
82233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
83518325560 Adhesive PatchAdhesive Patch
-
84207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
85233261414 Elastic Flange Nut M6Elastic Flange Nut M6
