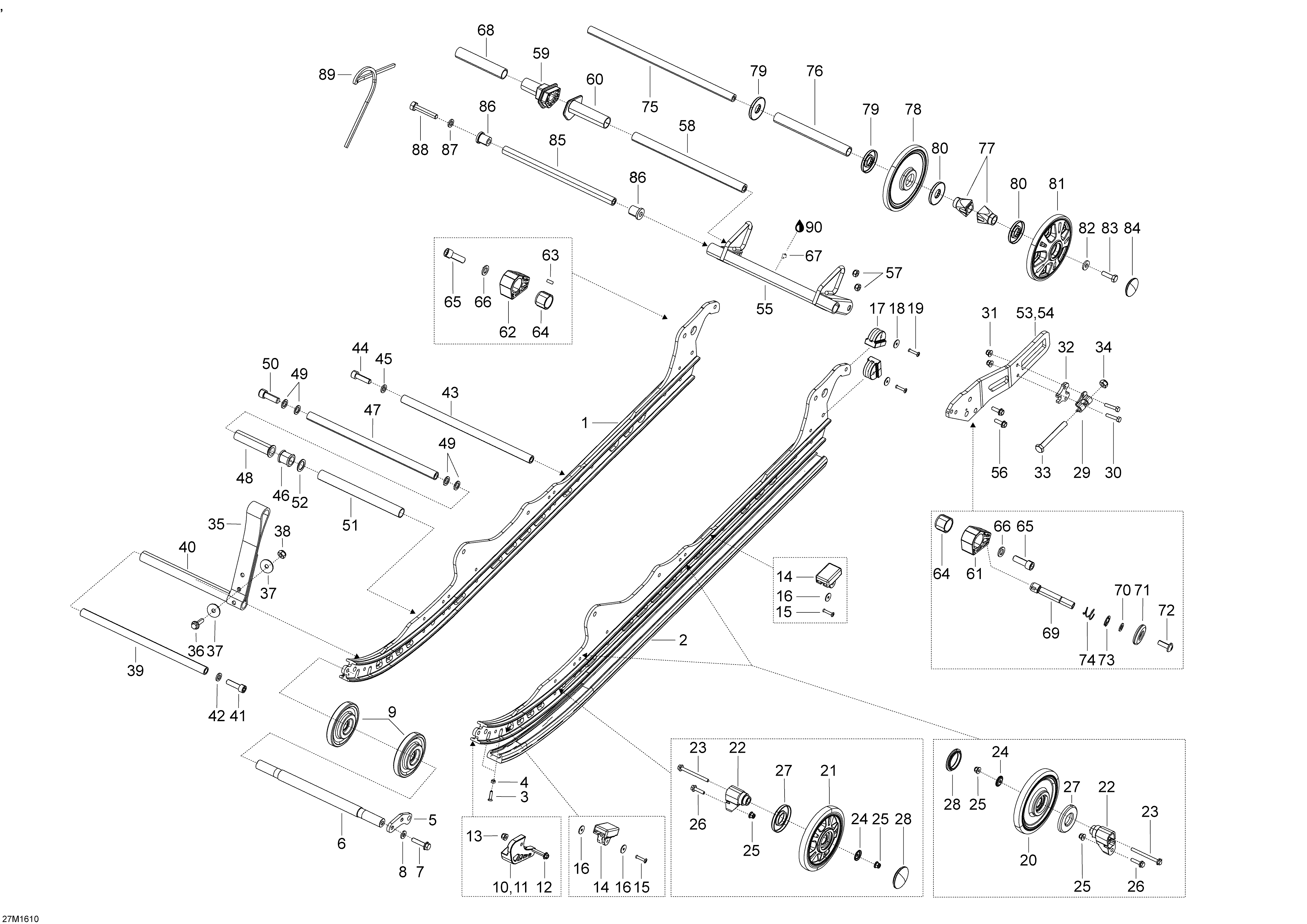

08- Rear Suspension A для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
1503193397 Runner. Model-LERunner. Model-LE
-
1503194309 Black Runner. Model-SEBlack Runner. Model-SE
-
1503194351 Black Runner. Model-ExtremeBlack Runner. Model-Extreme
-
2503192618 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192612 PlatePlate
-
6503192643 Front Wheel ShaftFront Wheel Shaft
-
7207583586 Hex. Flange Screw M8 x 35Hex. Flange Screw M8 x 35
-
8503189157 WasherWasher
-
9503192611 Wheel 100mmWheel 100mm
-
10503192610 RH ProtectorRH Protector
-
11503192609 LH ProtectorLH Protector
-
12207684044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
13233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
14503190576 Rubber StopperRubber Stopper
-
15293150142 Pop Rivet 3/16Pop Rivet 3/16
-
16503191273 WasherWasher
-
17503191291 Rubber StopperRubber Stopper
-
18293150142 Pop Rivet 3/16Pop Rivet 3/16
-
19503191273 WasherWasher
-
20503191311 Wheel 147mm (Inner)Wheel 147mm (Inner)
-
21503191152 Wheel 147mm (Outer)Wheel 147mm (Outer)
-
22503193894 Cast. SupportCast. Support
-
23207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
24503191820 Cup WasherCup Washer
-
25233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
26207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
27503190434 Labyrinth SealLabyrinth Seal
-
28503192771 Wheel CapWheel Cap
-
29503192583 TensionerTensioner
-
30207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
31233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
32503193250 SpacerSpacer
-
33230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
34233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503192360 Stopper StrapStopper Strap
-
36207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
37224081301 Flat WasherFlat Washer
-
38233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
39503192623 Strap AxleStrap Axle
-
40503192679 SpacerSpacer
-
41205503544 Socket Screw M10 x 35Socket Screw M10 x 35
-
42503189564 WasherWasher
-
43503191418 Axle StrapAxle Strap
-
44205503544 Socket Screw M10 x 35Socket Screw M10 x 35
-
45503189564 WasherWasher
-
46503189271 Ureth. CushionUreth. Cushion
-
47503193967 ShaftShaft
-
48503191259 SpacerSpacer
-
49503189276 WasherWasher
-
50205523544 Socket Head Screw M12 x 35Socket Head Screw M12 x 35
-
51503191421 SpacerSpacer
-
52503189273 WasherWasher
-
53503193378 RH Runner Pivot. Model-LERH Runner Pivot. Model-LE
-
53503193970 Black RH Runner Pivot. Model-SE & ExtremeBlack RH Runner Pivot. Model-SE & Extreme
-
54503193377 LH Runner Pivot. Model-LELH Runner Pivot. Model-LE
-
54503193969 Black LH Runner Pivot. Model-SE & ExtremeBlack LH Runner Pivot. Model-SE & Extreme
-
55503191414 Pivot WeldPivot Weld
-
56207682534 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
57232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
58503191711 Cam AxleCam Axle
-
59503191190 RH Cam SpringRH Cam Spring
-
60503191668 LH Cam SpringLH Cam Spring
-
61503192426 LH BlockLH Block
-
62503192427 RH BlockRH Block
-
63250400005 Dowel Pin 4 x 8mmDowel Pin 4 x 8mm
-
64503189488 Block GuideBlock Guide
-
65205523544 Socket Head Screw M12 x 35Socket Head Screw M12 x 35
-
66503189148 WasherWasher
-
67408200700 Grease FittingGrease Fitting
-
68503191713 SpacerSpacer
-
69503192437 ShaftShaft
-
70234051410 Flat WasherFlat Washer
-
71503192438 HandleHandle
-
72250000742 Torx-Truss Screw M5 x 14Torx-Truss Screw M5 x 14
-
73293370068 CirclipCirclip
-
74503192436 SpringSpring
-
75503191408 Rear AxleRear Axle
-
76503191409 SpacerSpacer
-
77503190428 SpacerSpacer
-
78503192140 Wheel 165mmWheel 165mm
-
79503190682 Labyrinth SealLabyrinth Seal
-
80503190434 Labyrinth SealLabyrinth Seal
-
81503192128 Wheel 165mmWheel 165mm
-
82503190439 WasherWasher
-
83250000019 Hex. Cap Screw M10 x 35Hex. Cap Screw M10 x 35
-
84503192771 Wheel CapWheel Cap
-
85503191390 Lower ShaftLower Shaft
-
86503189324 BushingBushing
-
87503192496 WasherWasher
-
88250000605 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
89503192282 SpringSpring
