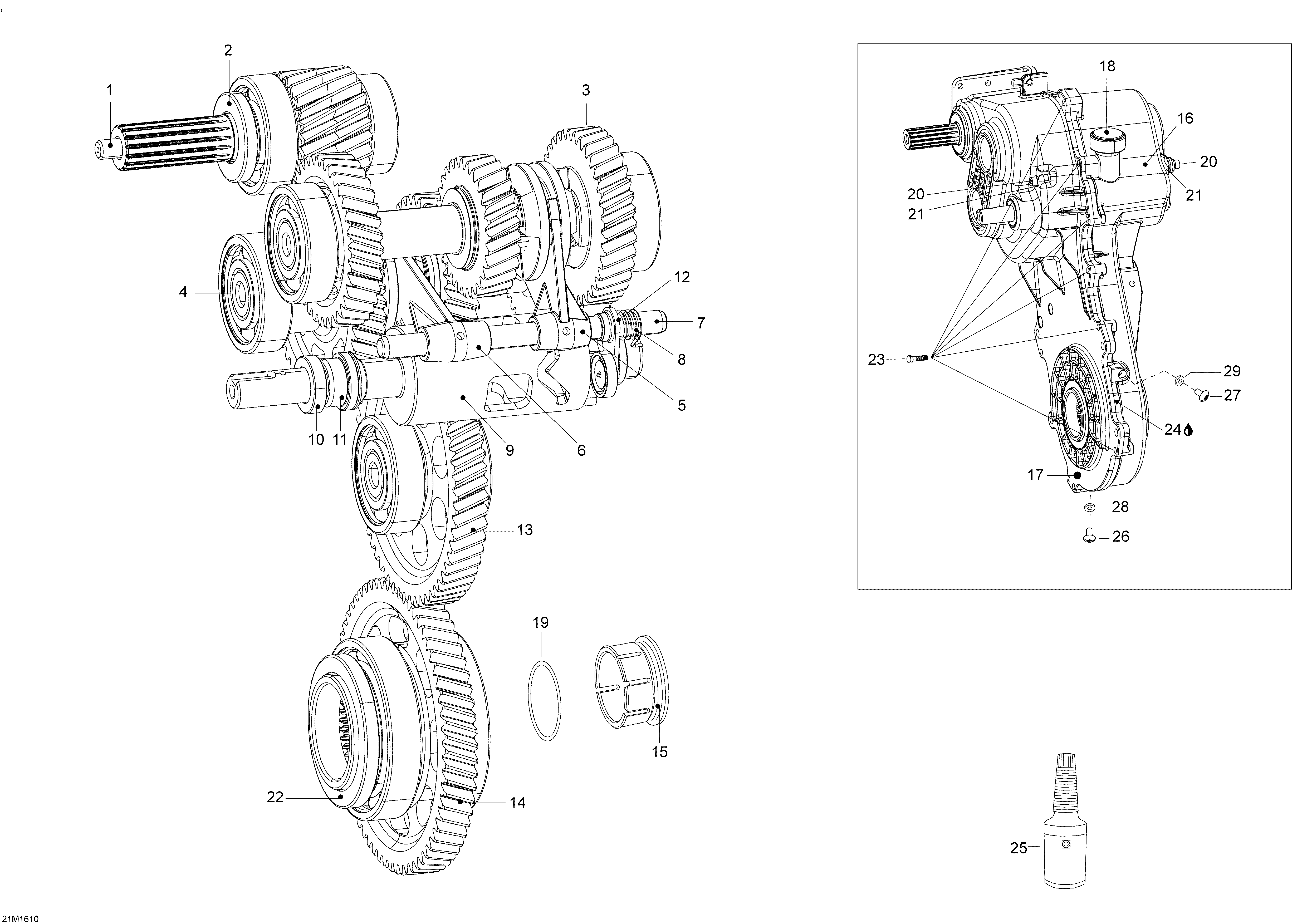

05- Transmission для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
-619230064 Transmission Ass'y (Fast Ratio)Transmission Ass'y (Fast Ratio)
-
1619230009 Counter Shaft Ass'yCounter Shaft Ass'y
-
2619230010 Oil SealOil Seal
-
3619230053 Main Shaft Ass'yMain Shaft Ass'y
-
4619230057 Reverse Shaft Ass'yReverse Shaft Ass'y
-
5619230055 Fork (Forewards 1-2)Fork (Forewards 1-2)
-
6619230015 Fork (Reverse)Fork (Reverse)
-
7619230016 ShaftShaft
-
8619230017 SpringSpring
-
9619230056 Shifting DrumShifting Drum
-
10619230052 Oil SealOil Seal
-
11619230020 BushingBushing
-
12619230021 Locking LeverLocking Lever
-
13619230022 Middle Gear Ass'yMiddle Gear Ass'y
-
14619230023 Lower Gear Ass'yLower Gear Ass'y
-
15504152821 Magnetic PlugMagnetic Plug
-
16504153194 Cover, OutsideCover, Outside
-
17504153243 Inside CoverInside Cover
-
18619230027 Oil CapOil Cap
-
19619230028 O-RingO-Ring
-
20619230029 ScrewScrew
-
21619230030 WasherWasher
-
22619230031 Oil SealOil Seal
-
23619230033 Screw M6 x 20Screw M6 x 20
-
24420297906 SealSeal
-
26619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
27619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
28615580812 Gasket RingGasket Ring
-
29619230047 Seal RingSeal Ring
