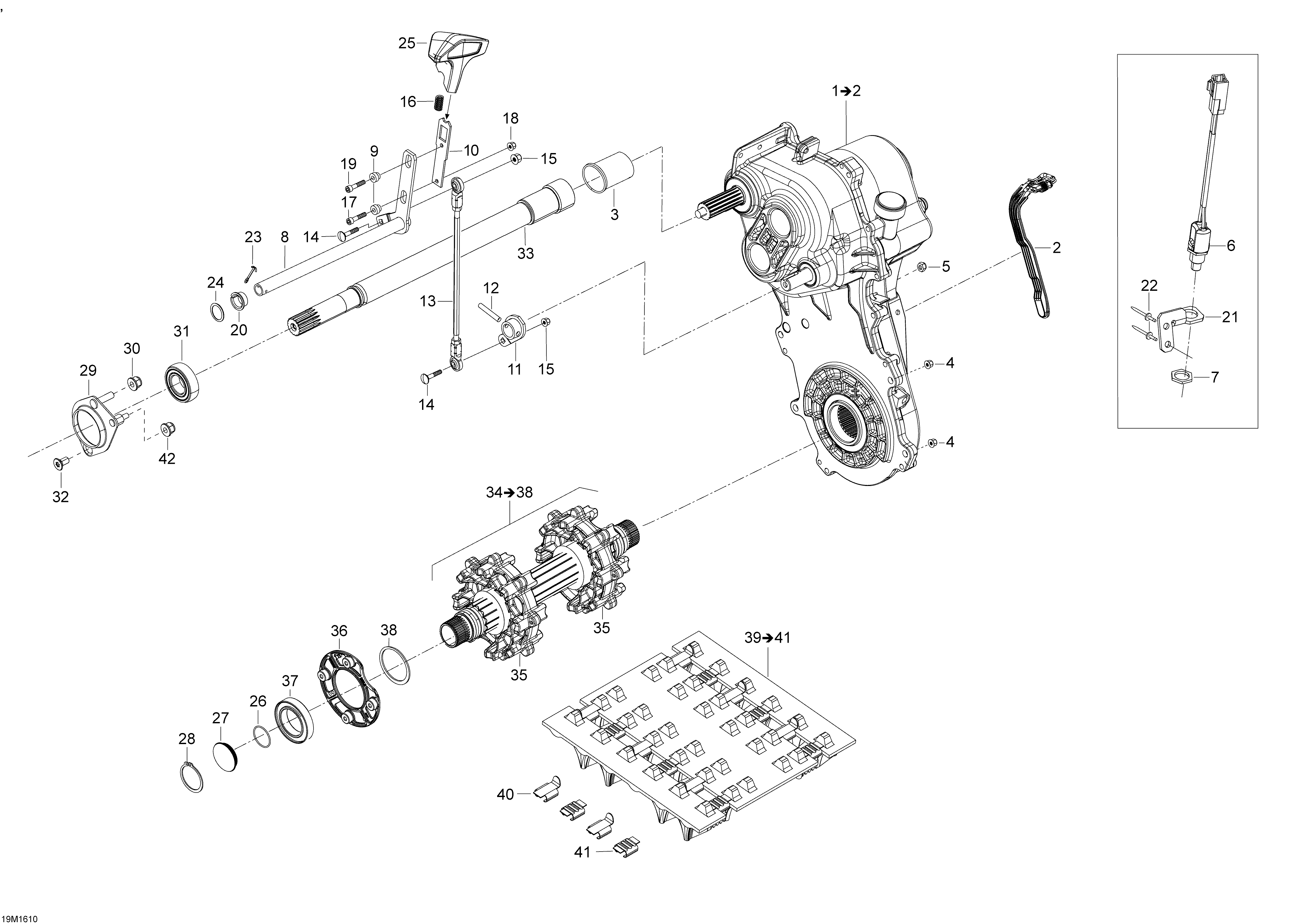

05- Drive System для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
1619230064 Transmission Ass'y (Fast Ratio). Includes 1 To 2Transmission Ass'y (Fast Ratio). Includes 1 To 2
-
2504152896 SensorSensor
-
3504153054 Protective RubberProtective Rubber
-
4233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6515176472 SwitchSwitch
-
7250000373 NutNut
-
8504153288 ShifterShifter
-
9504152787 SleeveSleeve
-
10504153287 Shifter ArmShifter Arm
-
11504153280 LeverLever
-
1241012 Spring Pin 6 x 30Spring Pin 6 x 30
-
13504153258 Shifter RodShifter Rod
-
14250000677 Bolt Carriage M6 x 20Bolt Carriage M6 x 20
-
15232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
16504152882 SpringSpring
-
17205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
18233251434 Nut M5Nut M5
-
19250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
20504152890 BushingBushing
-
21504152902 Sensor BracketSensor Bracket
-
22293150163 RivetRivet
-
23250400035 Cotter PinCotter Pin
-
24503189273 WasherWasher
-
25504152837 Shifter HandleShifter Handle
-
26293300122 O-RingO-Ring
-
27504152619 Magnetic CapMagnetic Cap
-
28504152572 CirclipCirclip
-
29504153187 Bearing HousingBearing Housing
-
30233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
31293350074 Ball BearingBall Bearing
-
32235381646 Torx Screw M8 x 16Torx Screw M8 x 16
-
33504152963 Counter ShaftCounter Shaft
-
34504153208 Drive Axle Ass'y. Includes 34 To 38, Model-EuropeDrive Axle Ass'y. Includes 34 To 38, Model-Europe
-
34504153210 Drive Axle Ass'y. Includes 34 To 38, Model-North AmericaDrive Axle Ass'y. Includes 34 To 38, Model-North America
-
36504152949 Retaining RingRetaining Ring
-
37293350059 Ball BearingBall Bearing
-
38504153207 ShimShim
-
39504152817 Track Ass'y (500 x 3923 x 32). Includes 39 To 41, Model-600 E-TECTrack Ass'y (500 x 3923 x 32). Includes 39 To 41, Model-600 E-TEC
-
39504153133 Track Ass'y (500 x 3923 x 44). Includes 39 To 41, Model-800 E-TECTrack Ass'y (500 x 3923 x 44). Includes 39 To 41, Model-800 E-TEC
-
40415129528 Guide. Model-800 E-TECGuide. Model-800 E-TEC
-
41504152651 Cleat. Model-800 E-TECCleat. Model-800 E-TEC
-
42233261414 Elastic Flange Nut M6Elastic Flange Nut M6
