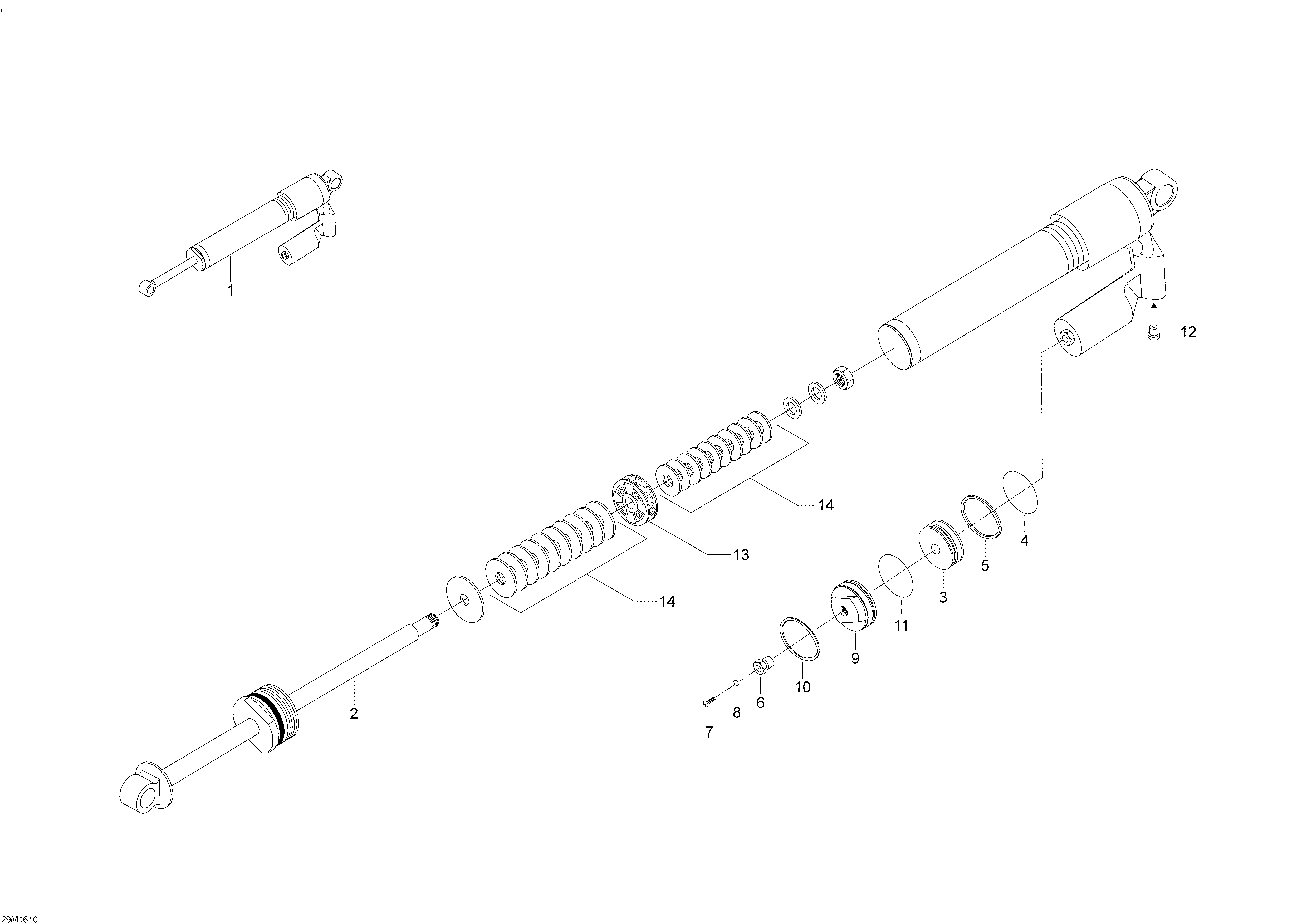

08- Rear Shocks - 800 E-TEC для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
1503194217 Rear ShockRear Shock
-
4415093807 O RingO Ring
-
5415093806 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
9619300009 GuideGuide
-
10619300006 Stop RingStop Ring
-
11415093804 O RingO Ring
-
13619300108 Piston 36 mm, 0 x 0,3 SlitsPiston 36 mm, 0 x 0,3 Slits
-
13415128848 Piston 36 mm, 1 x 0,3 SlitsPiston 36 mm, 1 x 0,3 Slits
-
13619300161 Piston 36 mm, 2 x 0,3 slitsPiston 36 mm, 2 x 0,3 slits
-
13619300071 Piston 36 mm, 3 x 0,3 SlitsPiston 36 mm, 3 x 0,3 Slits
-
13619300109 Piston 36 mm, 4 x 0,3 SlitsPiston 36 mm, 4 x 0,3 Slits
-
13619300111 Piston 36 mm, 5 x 0,3 SlitsPiston 36 mm, 5 x 0,3 Slits
-
13619300110 Piston 36 mm, 6 x 0,3 SlitsPiston 36 mm, 6 x 0,3 Slits
-
14619300162 Shim 36 mm, 12 x 0,114Shim 36 mm, 12 x 0,114
-
14619300075 Shim 36 mm, 12 x 0,152Shim 36 mm, 12 x 0,152
-
14619300117 Shim 36 mm, 12 x 0,203Shim 36 mm, 12 x 0,203
-
14619300120 Shim 36 mm, 12 x 0,254Shim 36 mm, 12 x 0,254
-
14619300076 Shim 36 mm, 13 x 0,114Shim 36 mm, 13 x 0,114
-
14619300077 Shim 36 mm, 13 x 0,152Shim 36 mm, 13 x 0,152
-
14619300078 Shim 36 mm, 13 x 0,203Shim 36 mm, 13 x 0,203
-
14619300079 Shim 36 mm, 13 x 0,254Shim 36 mm, 13 x 0,254
-
14619300080 Shim 36 mm, 14 x 0,114Shim 36 mm, 14 x 0,114
-
14619300081 Shim 36 mm, 14 x 0,152Shim 36 mm, 14 x 0,152
-
14619300082 Shim 36 mm, 14 x 0,203Shim 36 mm, 14 x 0,203
-
14619300083 Shim 36 mm. 14 X 0,254Shim 36 mm. 14 X 0,254
-
14619300121 Shim 36 mm, 15 x 0,114Shim 36 mm, 15 x 0,114
-
14619300115 Shim 36 mm, 15 x 0,152Shim 36 mm, 15 x 0,152
-
14619300122 Shim 36 mm, 15 x 0,203Shim 36 mm, 15 x 0,203
-
14619300118 Shim 36 mm, 15 x 0,254Shim 36 mm, 15 x 0,254
-
14619300084 Shim 36 mm, 16 x 0,114Shim 36 mm, 16 x 0,114
-
14619300114 Shim 36 mm, 16 x 0,152Shim 36 mm, 16 x 0,152
-
14619300119 Shim 36 mm, 16 x 0,203Shim 36 mm, 16 x 0,203
-
14619300116 Shim 36 mm, 16 x 0,254Shim 36 mm, 16 x 0,254
-
14619300085 Shim 36 mm, 17 x 0,114Shim 36 mm, 17 x 0,114
-
14619300086 Shim 36 mm, 17 x 0,152Shim 36 mm, 17 x 0,152
-
14619300087 Shim 36 mm, 17 x 0,203Shim 36 mm, 17 x 0,203
-
14619300058 Shim 36 mm, 17 x 0,254Shim 36 mm, 17 x 0,254
-
14619300068 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
14619300123 Shim 36 mm, 18 x 0,152Shim 36 mm, 18 x 0,152
-
14619300124 Shim 36 mm, 18 x 0,203Shim 36 mm, 18 x 0,203
-
14230016 Shim 36 mm, 18 x 0,254Shim 36 mm, 18 x 0,254
-
14619300088 Shim 36 mm, 19 x 0,114Shim 36 mm, 19 x 0,114
-
14619300089 Shim 36 mm, 19 x 0,152Shim 36 mm, 19 x 0,152
-
14619300090 Shim 36 mm, 19 x 0,203Shim 36 mm, 19 x 0,203
-
14619300091 Shim 36 mm, 19 x 0,254Shim 36 mm, 19 x 0,254
-
14619300125 Shim 36 mm, 20 x 0,114Shim 36 mm, 20 x 0,114
-
14619300126 Shim 36 mm, 20 x 0,152Shim 36 mm, 20 x 0,152
-
14619300127 Shim 36 mm, 20 x 0,203Shim 36 mm, 20 x 0,203
-
14230017 Shim 36 mm, 20 x 0,254Shim 36 mm, 20 x 0,254
-
14619300128 Shim 36 mm, 21 x 0,114Shim 36 mm, 21 x 0,114
-
14619300092 Shim 36 mm, 21 x 0,152Shim 36 mm, 21 x 0,152
-
14619300093 Shim 36 mm, 21 x 0,203Shim 36 mm, 21 x 0,203
-
14619300094 Shim 36 mm, 21 x 0,254Shim 36 mm, 21 x 0,254
-
14230018 Shim 36 mm, 22 x 0,114Shim 36 mm, 22 x 0,114
-
14619300129 Shim 36 mm, 22 x 0,152Shim 36 mm, 22 x 0,152
-
14619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
14230019 Shim 36 mm, 22 x 0,254Shim 36 mm, 22 x 0,254
-
14230021 Shim 36 mm, 24 x 0,114Shim 36 mm, 24 x 0,114
-
14230022 Shim 36 mm, 24 x 0,152Shim 36 mm, 24 x 0,152
-
14230023 Shim 36 mm, 24 x 0,203Shim 36 mm, 24 x 0,203
-
14619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
14230024 Shim 36 mm, 26 x 0,114Shim 36 mm, 26 x 0,114
-
14619300130 Shim 36 mm, 26 x 0,152Shim 36 mm, 26 x 0,152
-
14619300131 Shim 36 mm, 26 x 0,203Shim 36 mm, 26 x 0,203
-
14619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
14230025 Shim 36 mm, 28 x 0,114Shim 36 mm, 28 x 0,114
-
14619300096 Shim 36 mm, 28 x 0,152Shim 36 mm, 28 x 0,152
-
14619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
14230026 Shim 36 mm, 28 x 0,254Shim 36 mm, 28 x 0,254
-
14619300167 Shim 36 mm, 30 x 0,152Shim 36 mm, 30 x 0,152
-
14619300132 Shim 36 mm, 30 x 0,203Shim 36 mm, 30 x 0,203
-
14619300113 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
