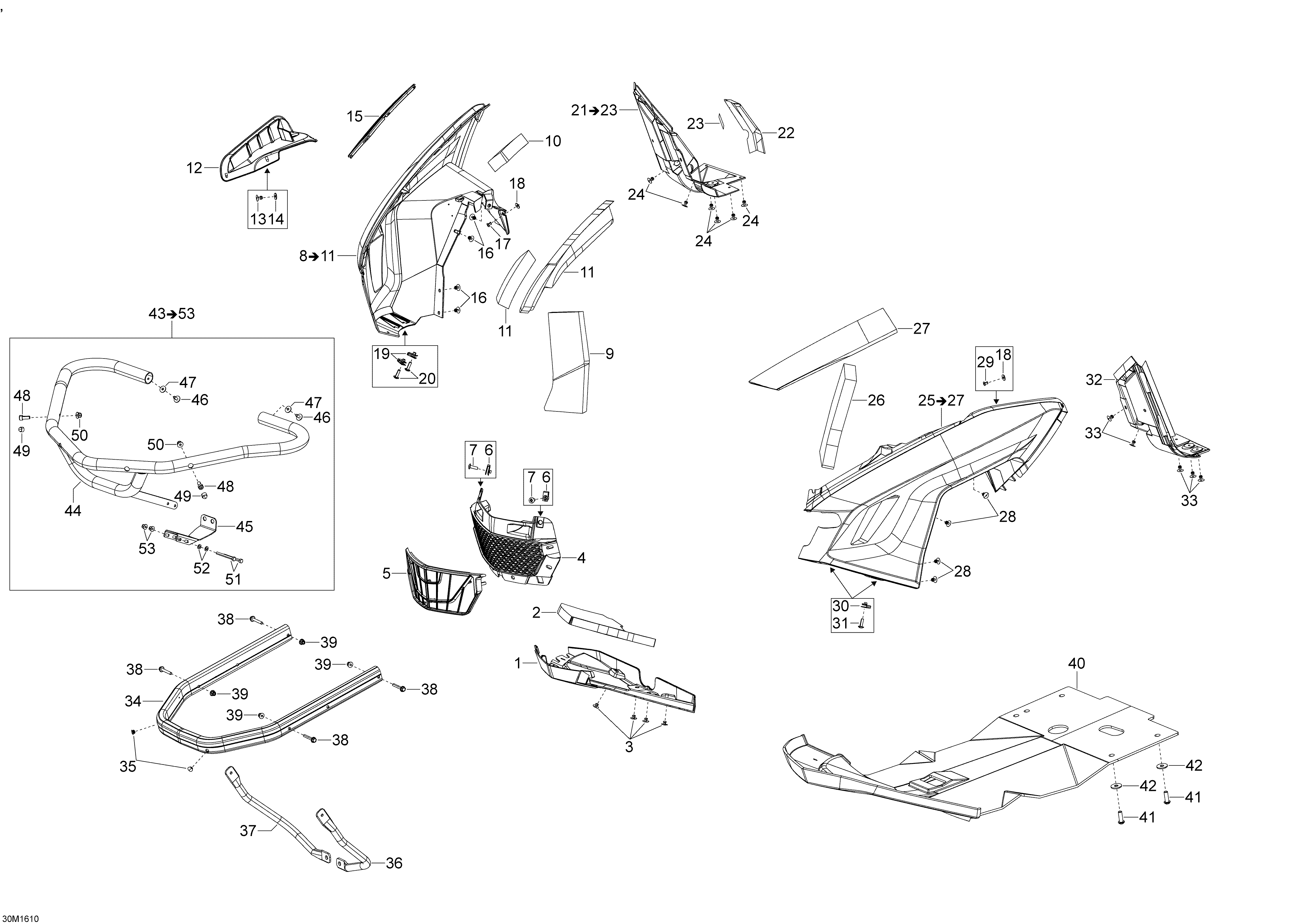

09- Bottom Pan для BRP Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE - 2016
-
№АртикулНазвание
-
1502007184 Black Front Bottom PanBlack Front Bottom Pan
-
2502007002 InsulatorInsulator
-
3293150103 Pop Rivet 3/16Pop Rivet 3/16
-
4502007145 Front GrillFront Grill
-
5502007393 Front Grill With Mesh. Model-ExtremeFront Grill With Mesh. Model-Extreme
-
6250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
8502007188 Black RH Bottom Pan Ass?y. Includes 8 To 11, Model-LEBlack RH Bottom Pan Ass?y. Includes 8 To 11, Model-LE
-
8502007187 Black RH Bottom Pan Ass?y. Includes 8 To 11, Model-SEBlack RH Bottom Pan Ass?y. Includes 8 To 11, Model-SE
-
8502007520 Black RH Bottom Pan Ass?y. Includes 8 To 11, Model-ExtremeBlack RH Bottom Pan Ass?y. Includes 8 To 11, Model-Extreme
-
9502007006 Insulator. Model-LE & SEInsulator. Model-LE & SE
-
9502007526 Insulator. Model-ExtremeInsulator. Model-Extreme
-
10502007008 Insulator. Model-LE & SEInsulator. Model-LE & SE
-
11502007009 Insulator. Model-LE & SEInsulator. Model-LE & SE
-
11517305977 Insulator. Model-ExtremeInsulator. Model-Extreme
-
12517305975 RH Bottom Pan Air Vent. Model-ExtremeRH Bottom Pan Air Vent. Model-Extreme
-
13293150104 Pop Rivet 3/16. Model-ExtremePop Rivet 3/16. Model-Extreme
-
14250200025 Washer. Model-ExtremeWasher. Model-Extreme
-
15517305976 RH Bottom Pan Grill. Model-ExtremeRH Bottom Pan Grill. Model-Extreme
-
16293150104 Pop Rivet 3/16Pop Rivet 3/16
-
17390402200 Pop Rivet 3/16Pop Rivet 3/16
-
18234052450 Flat WasherFlat Washer
-
19250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
21502007191 Black RH Rear Bottom Pan Ass?y. Includes 21 To 23Black RH Rear Bottom Pan Ass?y. Includes 21 To 23
-
22502007038 Aluminium FoilAluminium Foil
-
2344110 Al-TapeAl-Tape
-
24293150104 Pop Rivet 3/16Pop Rivet 3/16
-
25502007196 Black LH Bottom Pan Ass?y. Includes 25 To 27, Model-LE & ExtremeBlack LH Bottom Pan Ass?y. Includes 25 To 27, Model-LE & Extreme
-
25502007198 Black LH Bottom Pan Ass?y. Includes 25 To 27, Model-SEBlack LH Bottom Pan Ass?y. Includes 25 To 27, Model-SE
-
26502007003 InsulatorInsulator
-
27502007185 InsulatorInsulator
-
28293150104 Pop Rivet 3/16Pop Rivet 3/16
-
29390402200 Pop Rivet 3/16Pop Rivet 3/16
-
30250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
31250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
32502007195 Black LH Rear Bottom PanBlack LH Rear Bottom Pan
-
33293150104 Pop Rivet 3/16Pop Rivet 3/16
-
34502007469 Clear Anod. Bumper. Model-LEClear Anod. Bumper. Model-LE
-
34502007470 Black Anod. Bumper. Model-SE & ExtremeBlack Anod. Bumper. Model-SE & Extreme
-
35293730041 Dart. Model-LEDart. Model-LE
-
35293730047 Black Dart. Model-ExtremeBlack Dart. Model-Extreme
-
36502007014 LH Bumper Support TubeLH Bumper Support Tube
-
37502007015 RH Bumper Support TubeRH Bumper Support Tube
-
38207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
39233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
40860200563 Skid Plate Kit. Model-SESkid Plate Kit. Model-SE
-
41250000757 Torx Screw M8 x 25, Scotch Grip. Model-SETorx Screw M8 x 25, Scotch Grip. Model-SE
-
42234082410 Flat Washer. Model-SEFlat Washer. Model-SE
-
43860200537 Extra Bumper Kit. Includes 43 To 53, Model-SEExtra Bumper Kit. Includes 43 To 53, Model-SE
-
45502007022 Lower Fastening Plate. Model-SELower Fastening Plate. Model-SE
-
46250000717 Torx Truss Screw M6 x 16. Model-SETorx Truss Screw M6 x 16. Model-SE
-
4720117 Washer. Model-SEWasher. Model-SE
-
48205084044 Socket Screw M8 x 40. Model-SESocket Screw M8 x 40. Model-SE
-
4928056 Cover. Model-SECover. Model-SE
-
50233281414 Elastic Flange Nut M8. Model-SEElastic Flange Nut M8. Model-SE
-
51207066044 Hex. Cap Screw M6 x 60. Model-SEHex. Cap Screw M6 x 60. Model-SE
-
52234061410 Washer. Model-SEWasher. Model-SE
-
53233261414 Elastic Flange Nut M6. Model-SEElastic Flange Nut M6. Model-SE
